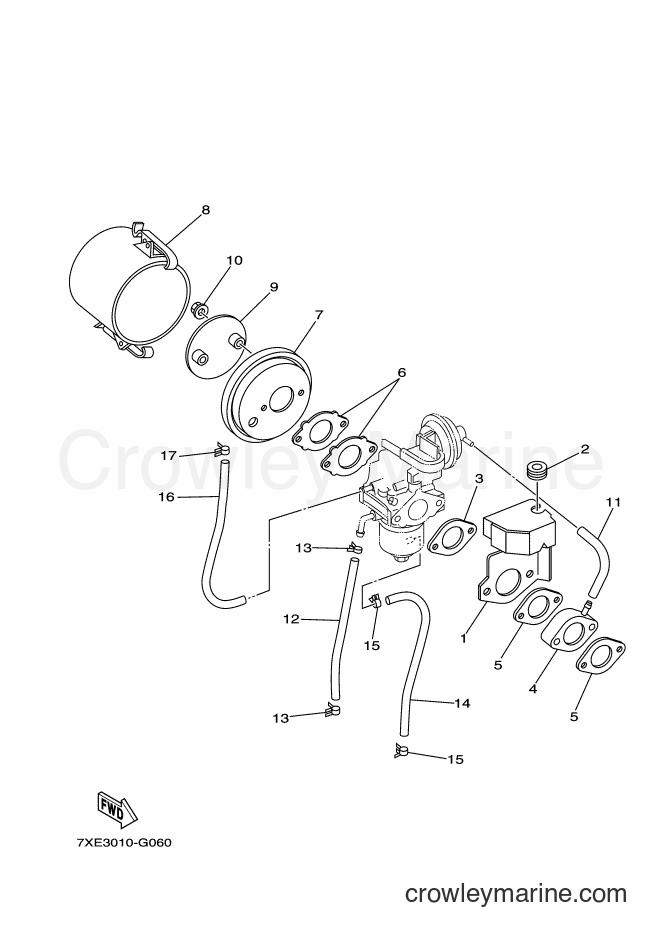

2012 Snowblower YS1070 - YS1070 (7XE3) [010] INTAKE diagram
![Yamaha Motors YS1070 (7XE3) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/OJIFQWLl.png)
-15%
1
Yamaha Motors
Carburetor Cover7CU-E4283-00-00
Required: 1
COVER, CARBURETOR 1
$28.04
You save $4.95
-15%
$3.02
You save $0.53
-20%
In stock
Only 1 remaining
$3.24
You save $0.81
-15%
4
Yamaha Motors
Carburetor Joint7CT-E3596-10-00
Required: 1
JOINT, CARBURETOR 2
No longer availableSearch Nationwide Inventory
$10.62
You save $1.87
-20%
In stock
Only 1 remaining
$3.24
You save $0.81
-20%
6
Yamaha Motors
GasketY06-02917-00-00
Required: 2
GASKET
Supersedes: 7CT-E3567-00-00
$2.20
You save $0.55
7
Yamaha Motors
CASE, AIR CLEANER 17WS-14411-S0
Required: 1
CASE, AIR CLEANER 1
Price unavailable
8
Yamaha Motors
CAP, CLEANER CASE 17WS-14412-S0
Required: 1
CAP, CLEANER CASE 1
Price unavailable
9
Yamaha Motors
PLATE,ELEMENT FITTING7CU-E4468-S0
Required: 1
PLATE,ELEMENT FITTING
Price unavailable
-15%
In stock
Only 2 remaining
$0.89
You save $0.16
-15%
11
Yamaha Motors
Hose (L150)90445-082A9-00
Required: 1
HOSE (L120)
Supersedes: 90445-08743-00
$17.84
You save $3.15
-15%
12
Yamaha Motors
Hose90445-105E7-00
Required: 1
HOSE (L220)
No longer availableSearch Nationwide Inventory
$2.51
You save $0.44
-15%
13
Yamaha Motors
Clip90467-09120-00
Required: 2
CLIP
Supersedes: 90467-09806-00
$7.22
You save $1.27
14
Yamaha Motors
HOSE90445-08015
Required: 1
HOSE
Price unavailable
-15%
$3.06
You save $0.54
-20%
16
Yamaha Motors
Hose90445-10752-00
Required: 1
HOSE (L150)
Supersedes: 90445-10008-00
$4.39
You save $1.10
-15%
17
Yamaha Motors
Clip90467-09120-00
Required: 1
CLIP
Supersedes: 90467-09037-00
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
