2012 Snowblower YS1070 - YS1070 (7XE3) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

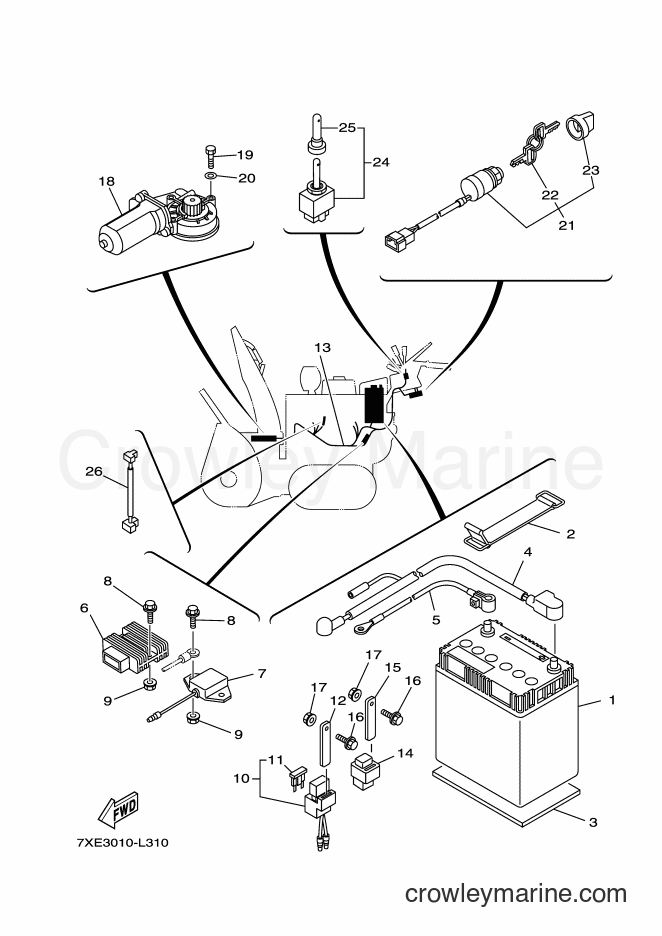

Yamaha Motors YS1070 (7XE3) [010] - ELECTRICAL 1
Change View:
-15%
Battery Band
2
Yamaha Motors
Battery Band26H-82131-00-00
Required: 1
BAND, BATTERY
Cross Ship
Leaves in 2-5 days
$25.99
$22.09
You save $3.90
More details
SEAT, BATTERY
3
Yamaha Motors
SEAT, BATTERY7VY-82122-00
Required: 1
SEAT, BATTERY
Price unavailable
WIRE, PLUS LEAD
4
Yamaha Motors
WIRE, PLUS LEAD7VY-H2115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
WIRE, MINUS LEAD
5
Yamaha Motors
WIRE, MINUS LEAD7XE-H2116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
RECTIFIER & REGULATOR (10A)
6
Yamaha Motors
RECTIFIER & REGULATOR (10A)7UT-81960-00
Required: 1
RECTIFIER & REGULATOR (10A)
Price unavailable
-15%
Flange Bolt
8
Yamaha Motors
Flange Bolt95822-06030-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.70
$1.44
You save $0.26
More details
FUSE HOLDER ASSY
10
Yamaha Motors
FUSE HOLDER ASSY7RX-82150-00
Required: 1
FUSE HOLDER ASSY
Price unavailable
-15%
Fuse (30A-Bl)
11
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE (30A-BL)
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
STAY, FUSE HOLDER
12
Yamaha Motors
STAY, FUSE HOLDER7RW-H2153-00-NJ
Required: 1
STAY, FUSE HOLDER
Price unavailable
WIRE HARNESS ASSY
13
Yamaha Motors
WIRE HARNESS ASSY7XE-H2590-06
Required: 1
WIRE HARNESS ASSY
Price unavailable
-15%
Starter Relay
14
Yamaha Motors
Starter Relay25G-81950-02-00
Required: 1
RELAY ASSY (25G-01)
Supersedes: 25G-81950-01-00
Cross Ship
Leaves in 2-5 days
$51.99
$44.19
You save $7.80
More details
STAY, FUSE HOLDER
15
Yamaha Motors
STAY, FUSE HOLDER7RW-H2153-00-NJ
Required: 1
STAY, FUSE HOLDER
Price unavailable
MOTOR ASSY
18
Yamaha Motors
MOTOR ASSY99999-04150
Required: 1
MOTOR ASSY
Price unavailable
MAIN SWITCH ASSY
21
Yamaha Motors
MAIN SWITCH ASSY7VY-82510-00
Required: 1
MAIN SWITCH ASSY
Price unavailable
-20%
Main Switch Key
22
Yamaha Motors
Main Switch Key7KE-82511-00-00
Required: 2
. KEY, MAIN SWITCH
Cross Ship
Leaves in 2-5 days
$18.49
$14.79
You save $3.70
More details
-15%
KEY CAP
23
Yamaha Motors
KEY CAP24W-82579-00-00
Required: 1
. CAP, KEY
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
. COVER, SWITCH
25
Yamaha Motors
. COVER, SWITCH7LY-8291G-00
Required: 1
. COVER, SWITCH
Price unavailable
WIRE, SUB LEAD
26
Yamaha Motors
WIRE, SUB LEAD7XE-H2309-00
Required: 1
WIRE, SUB LEAD
Price unavailable
