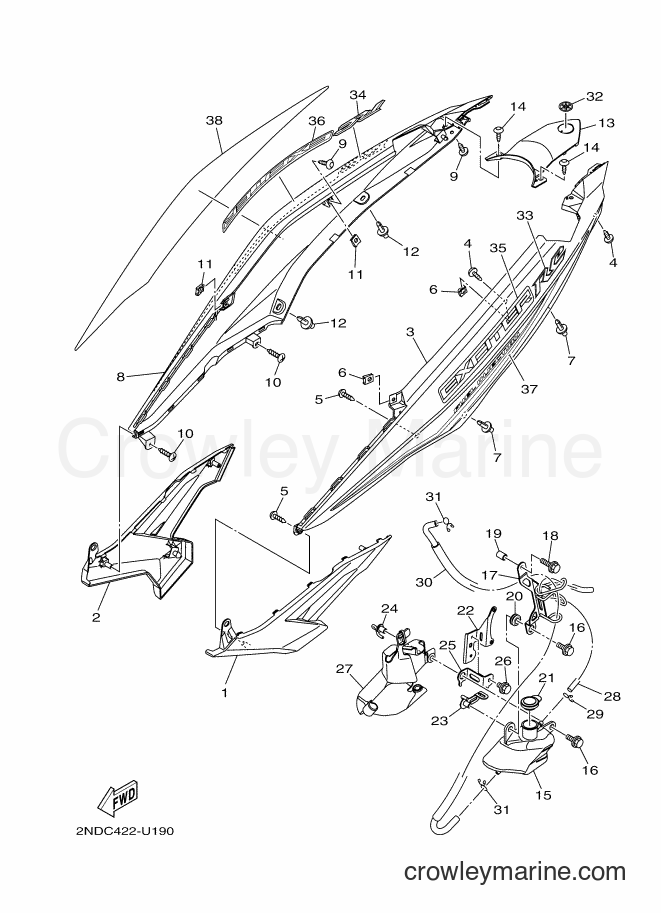

2019 Scooter T150 - T150 (2NDC) [010] SIDE COVER diagram
![Yamaha Motors T150 (2NDC) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/jSATsMwY.png)
1
Yamaha Motors
COVER, SIDE 12ND-F1711-00-P1
Required: 1
COVER, SIDE 1
Price unavailable
2
Yamaha Motors
COVER, SIDE 22ND-F1721-00-P1
Required: 1
COVER, SIDE 2
Price unavailable
3
Yamaha Motors
COVER, SIDE 32ND-F1731-00-P6
Required: 1
COVER, SIDE 3
Price unavailable
4
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
-15%
5
Yamaha Motors
Tapping Screw97707-40014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
-50%
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
8
Yamaha Motors
COVER, SIDE 42ND-F1741-00-P6
Required: 1
COVER, SIDE 4
Price unavailable
9
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
-15%
10
Yamaha Motors
Tapping Screw97707-40014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
-50%
11
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
13
Yamaha Motors
COVER, SIDE 52ND-F171E-00-P6
Required: 1
COVER, SIDE 5
Price unavailable
14
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
15
Yamaha Motors
TANK, RECOVERY1S9-F1871-01
Required: 1
TANK, RECOVERY
Price unavailable
-15%
16
Yamaha Motors
Bolt with Washer90119-06137-00
Required: 2
BOLT, WITH WASHER
$8.07
You save $1.42
17
Yamaha Motors
BRACKET 12ND-F172K-00
Required: 1
BRACKET 1
Price unavailable
-15%
18
Yamaha Motors
DEEP FLANGE BOLT95D32-06025-00
Required: 1
BOLT, FLANGE DEEP RECESS
$0.98
You save $0.17
-15%
$5.52
You save $0.97
-15%
$8.07
You save $1.42
21
Yamaha Motors
CAP1S9-F1875-00
Required: 1
CAP
Price unavailable
22
Yamaha Motors
BRACKET 22ND-F172L-00
Required: 1
BRACKET 2
Price unavailable
23
Yamaha Motors
BRACKET 31S9-F172M-00
Required: 1
BRACKET 3
Price unavailable
24
Yamaha Motors
BOSS, WIRE HOLDER55P-F1173-00
Required: 1
BOSS, WIRE HOLDER
Price unavailable
25
Yamaha Motors
BRACKET 32ND-F172M-00
Required: 1
BRACKET 3
Price unavailable
-15%
26
Yamaha Motors
DEEP FLANGE BOLT95D32-06010-00
Required: 1
BOLT, FLANGE DEEP RECESS
$0.68
You save $0.12
27
Yamaha Motors
COVER1S9-F172W-00
Required: 1
COVER
Price unavailable
-15%
$13.17
You save $2.32
-15%
$9.77
You save $1.72
30
Yamaha Motors
PIPE 255P-F1817-00
Required: 1
PIPE 2
Price unavailable
-15%
31
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP
Supersedes: 90467-09006-00
In stock
Only 1 remaining
$4.04
You save $0.71
32
Yamaha Motors
EMBLEM5P1-F1737-10
Required: 1
EMBLEM
Price unavailable
33
Yamaha Motors
EMBLEM 3D1DB-F17P1-10
Required: 1
EMBLEM 3D
Price unavailable
34
Yamaha Motors
EMBLEM 3D1DB-F17P1-10
Required: 1
EMBLEM 3D
Price unavailable
35
Yamaha Motors
GRAPHIC 212ND-F17AG-40
Required: 1
GRAPHIC 21
Price unavailable
36
Yamaha Motors
GRAPHIC 212ND-F17AG-B0
Required: 1
GRAPHIC 21
Price unavailable
37
Yamaha Motors
GRAPHIC 462ND-F17BF-00
Required: 1
GRAPHIC 46
Price unavailable
38
Yamaha Motors
GRAPHIC 472ND-F17BG-00
Required: 1
GRAPHIC 47
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
