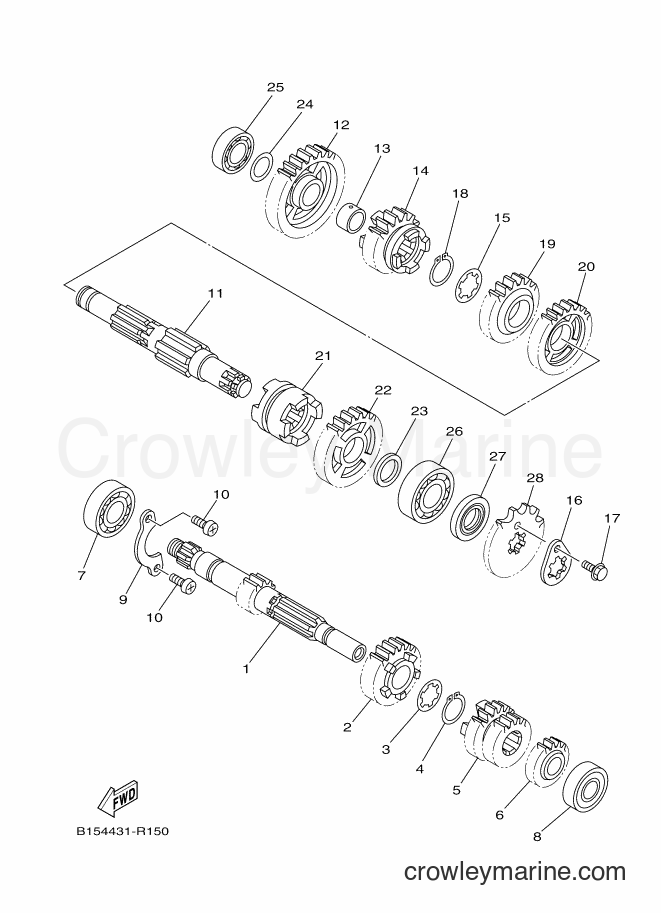

2018 Scooter T150 - T150 (B156) [010] TRANSMISSION diagram
![Yamaha Motors T150 (B156) [010] - TRANSMISSION](https://cdn.crowleymarine.com/yamaha/8CPVqwNQ.png)
1
Yamaha Motors
AXLE, MAIN (12T)2ND-E7411-00
Required: 1
AXLE, MAIN (12T)
Price unavailable
2
Yamaha Motors
GEAR, 5TH PINION (23T)2ND-E7151-00
Required: 1
GEAR, 5TH PINION (23T)
Price unavailable
-15%
$8.92
You save $1.57
-15%
4
Yamaha Motors
S -type Circlip93410-20038-00
Required: 1
CIRCLIP
Supersedes: 93410-20809-00
$3.44
You save $0.61
5
Yamaha Motors
GEAR, 3RD PINION (21T/21T)2ND-E7131-00
Required: 1
GEAR, 3RD PINION (21T/21T)
Price unavailable
6
Yamaha Motors
GEAR, 2ND PINION (16T)55P-E7121-00
Required: 1
GEAR, 2ND PINION (16T)
Price unavailable
7
Yamaha Motors
BEARING93306-054XB
Required: 1
BEARING
Price unavailable
8
Yamaha Motors
BEARING93306-252YL
Required: 1
BEARING
Price unavailable
9
Yamaha Motors
PLATE, COVER16S-E7471-00
Required: 1
PLATE, COVER
Price unavailable
-15%
10
Yamaha Motors
Pan Head Screw98512-06012-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
11
Yamaha Motors
DRIVE AXLE ASSY2ND-E7402-00
Required: 1
DRIVE AXLE ASSY
Price unavailable
12
Yamaha Motors
GEAR, 1ST WHEEL (34T)55P-E7211-00
Required: 1
GEAR, 1ST WHEEL (34T)
Price unavailable
13
Yamaha Motors
COLLAR90387-17804
Required: 1
COLLAR
Price unavailable
14
Yamaha Motors
GEAR, 5TH WHEEL (22T)2ND-E7251-00
Required: 1
GEAR, 5TH WHEEL (22T)
Price unavailable
-15%
$8.07
You save $1.42
16
Yamaha Motors
HOLDER, SPROCKET1S9-E7456-00
Required: 1
HOLDER, SPROCKET
Price unavailable
-15%
$5.52
You save $0.97
-15%
$8.07
You save $1.42
19
Yamaha Motors
GEAR, 4TH WHEEL (24T)2ND-E7241-00
Required: 1
GEAR, 4TH WHEEL (24T)
Price unavailable
20
Yamaha Motors
GEAR, 3RD WHEEL (30T)55P-E7231-00
Required: 1
GEAR, 3RD WHEEL (30T)
Price unavailable
21
Yamaha Motors
CLUTCH, DOG55P-E7285-00
Required: 1
CLUTCH, DOG
Price unavailable
22
Yamaha Motors
GEAR, 2ND WHEEL (30T)55P-E7221-00
Required: 1
GEAR, 2ND WHEEL (30T)
Price unavailable
23
Yamaha Motors
WASHER, PLATE90201-20814
Required: 1
WASHER, PLATE
Price unavailable
-15%
24
Yamaha Motors
Plate Washer90201-173F4-00
Required: 1
WASHER, PLATE
$8.07
You save $1.42
25
Yamaha Motors
BEARING93306-003YN
Required: 1
BEARING
Price unavailable
26
Yamaha Motors
BEARING93306-204YX
Required: 1
BEARING
Price unavailable
27
Yamaha Motors
OIL SEAL93102-20805
Required: 1
OIL SEAL
Price unavailable
28
Yamaha Motors
SPROCKET, DRIVE (14T)93822-14800
Required: 1
SPROCKET, DRIVE (14T)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
