2018 Scooter T115FL-5C - T115FL-5C (B7E1) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

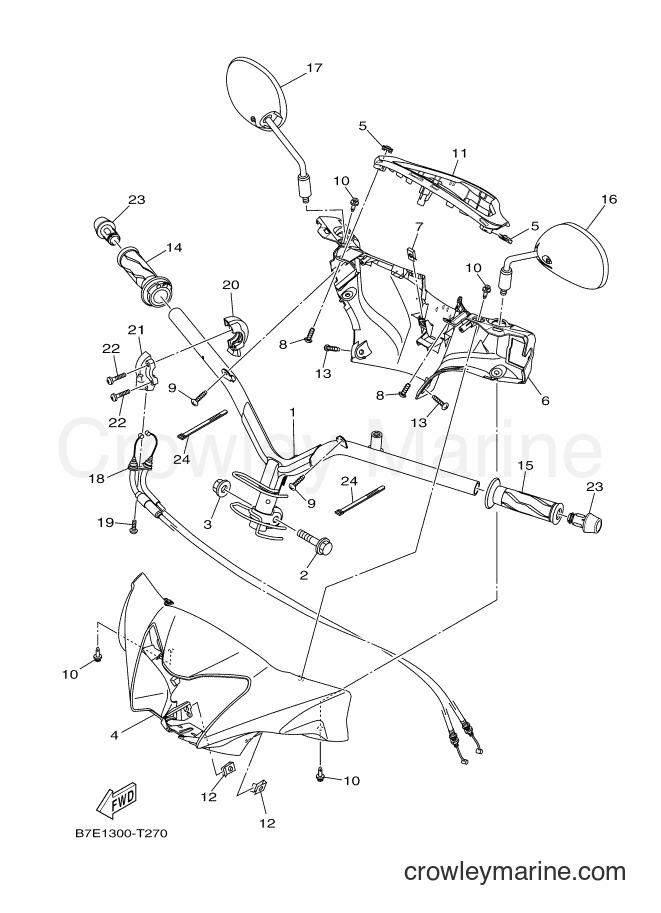

Yamaha Motors T115FL-5C (B7E1) [010] - STEERING HANDLE & CABLE
Change View:
HANDLE COMP.
1
Yamaha Motors
HANDLE COMP.B7E-F6110-00
Required: 1
HANDLE COMP.
Price unavailable
-15%
Flange Bolt
2
Yamaha Motors
Flange Bolt90105-10295-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
SELF-LOCKING NUT
3
Yamaha Motors
SELF-LOCKING NUT90185-10011-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details
COVER, HANDLE UPPER 1
4
Yamaha Motors
COVER, HANDLE UPPER 1B7E-F6143-00-P0
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
COVER, HANDLE UPPER 2
6
Yamaha Motors
COVER, HANDLE UPPER 2B6F-F6145-00
Required: 1
COVER, HANDLE UPPER 2
Price unavailable
-15%
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
-15%
Tapping Screw
9
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
-15%
RIVET
10
Yamaha Motors
RIVET90269-06812-00
Required: 4
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
COVER, METER
11
Yamaha Motors
COVER, METERB6F-H3559-00-P0
Required: 1
COVER, METER
Price unavailable
-15%
Truss Screw
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
GRIP ASSY
14
Yamaha Motors
GRIP ASSY2ND-F6240-02
Required: 1
GRIP ASSY
Price unavailable
GRIP
15
Yamaha Motors
GRIP2ND-F6241-00
Required: 1
GRIP
Price unavailable
REAR VIEW MIRROR ASSY (LEFT)
16
Yamaha Motors
REAR VIEW MIRROR ASSY (LEFT)B6F-F6280-00
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
REAR VIEW MIRROR ASSY (RIGHT)
17
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)B6F-F6290-00
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
THROTTLE CABLE ASSY
18
Yamaha Motors
THROTTLE CABLE ASSYB7E-F6301-00
Required: 1
THROTTLE CABLE ASSY
Price unavailable
-15%
Button head bolt
19
Yamaha Motors
Button head bolt92012-05016-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
CAP, GRIP UPPER
20
Yamaha Motors
CAP, GRIP UPPER2BL-F6281-00
Required: 1
CAP, GRIP UPPER
Price unavailable
CAP, GRIP UNDER
21
Yamaha Motors
CAP, GRIP UNDER2BL-F6282-00
Required: 1
CAP, GRIP UNDER
Price unavailable
END, GRIP (BLACK)
23
Yamaha Motors
END, GRIP (BLACK)54S-F6246-00
Required: 2
END, GRIP (BLACK)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
