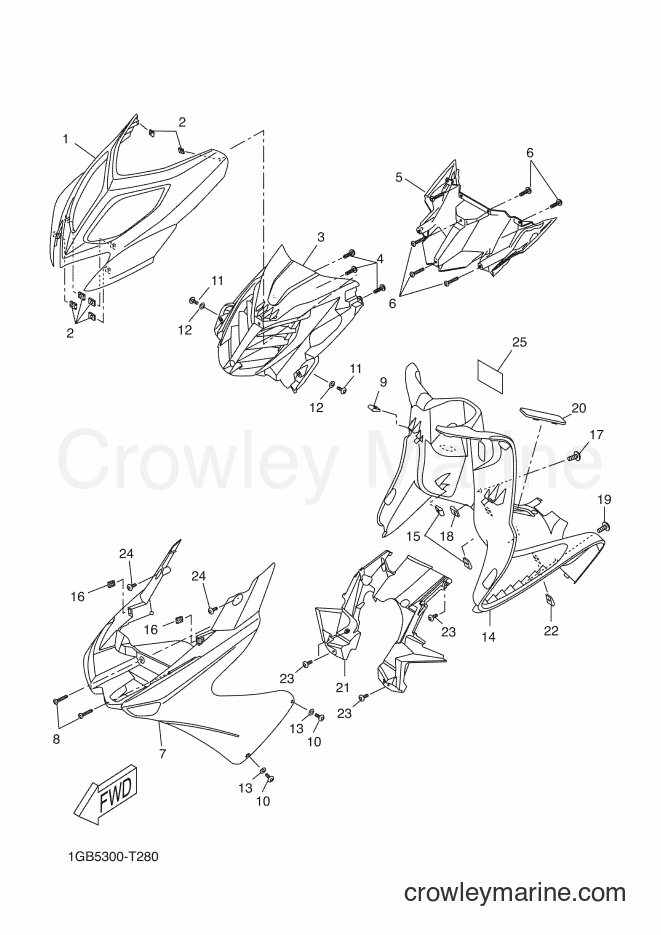

Yamaha Motors NS50F (1GB5) [090] - LEG SHIELD
Change View:
BODY, FRONT UPPER 1
1
Yamaha Motors
BODY, FRONT UPPER 11PH-F835G-00-P0
Required: 1
BODY, FRONT UPPER 1
Price unavailable
GRILL, AIR INTAKE 1
3
Yamaha Motors
GRILL, AIR INTAKE 11PH-F837N-00
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
SCREW, TAPPING
4
Yamaha Motors
SCREW, TAPPING90167-05X06
Required: 8
SCREW, TAPPING
Price unavailable
GRILL, AIR OUTLET 1
5
Yamaha Motors
GRILL, AIR OUTLET 11GB-F837V-00
Required: 1
GRILL, AIR OUTLET 1
Price unavailable
SCREW, TAPPING
6
Yamaha Motors
SCREW, TAPPING90167-05X06
Required: 6
SCREW, TAPPING
Price unavailable
BODY, FRONT UNDER 1
7
Yamaha Motors
BODY, FRONT UNDER 11PH-F835J-01-P0
Required: 1
BODY, FRONT UNDER 1
Price unavailable
BOLT,HEX. SOCKET BUTTON
8
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X26
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
-15%
BOLT
10
Yamaha Motors
BOLT90111-05018-00
Required: 4
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
BLT,BUTTON HD
11
Yamaha Motors
BLT,BUTTON HD92017-06016-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Washer
12
Yamaha Motors
Washer92907-06200-00
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
WASHER, PLATE
13
Yamaha Motors
WASHER, PLATE90202-05X00
Required: 4
WASHER, PLATE
Price unavailable
LEG SHIELD 1
14
Yamaha Motors
LEG SHIELD 11PH-F8311-00
Required: 1
LEG SHIELD 1
Price unavailable
-15%
NUT SPRING
15
Yamaha Motors
NUT SPRING90183-05X04-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
-15%
Spring Nut
16
Yamaha Motors
Spring Nut90183-060A6-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
-15%
BOLT
17
Yamaha Motors
BOLT90111-06051-00
Required: 1
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
-15%
Spring Nut
18
Yamaha Motors
Spring Nut90183-06X00-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
SCREW, TAPPING
19
Yamaha Motors
SCREW, TAPPING90167-05X06
Required: 7
SCREW, TAPPING
Price unavailable
-15%
Cap
20
Yamaha Motors
Cap3WV-F8349-10-00
Required: 1
CAP
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
PANEL, INNER 1
21
Yamaha Motors
PANEL, INNER 15BR-F836K-02
Required: 1
PANEL, INNER 1
Price unavailable
SCREW, TAPPING
23
Yamaha Motors
SCREW, TAPPING90167-05X06
Required: 6
SCREW, TAPPING
Price unavailable
SCREW, TAPPING
24
Yamaha Motors
SCREW, TAPPING90167-05X06
Required: 4
SCREW, TAPPING
Price unavailable
LABEL, WARNING
25
Yamaha Motors
LABEL, WARNING5WW-F1568-01
Required: 1
LABEL, WARNING
Price unavailable
