All diagrams for this model

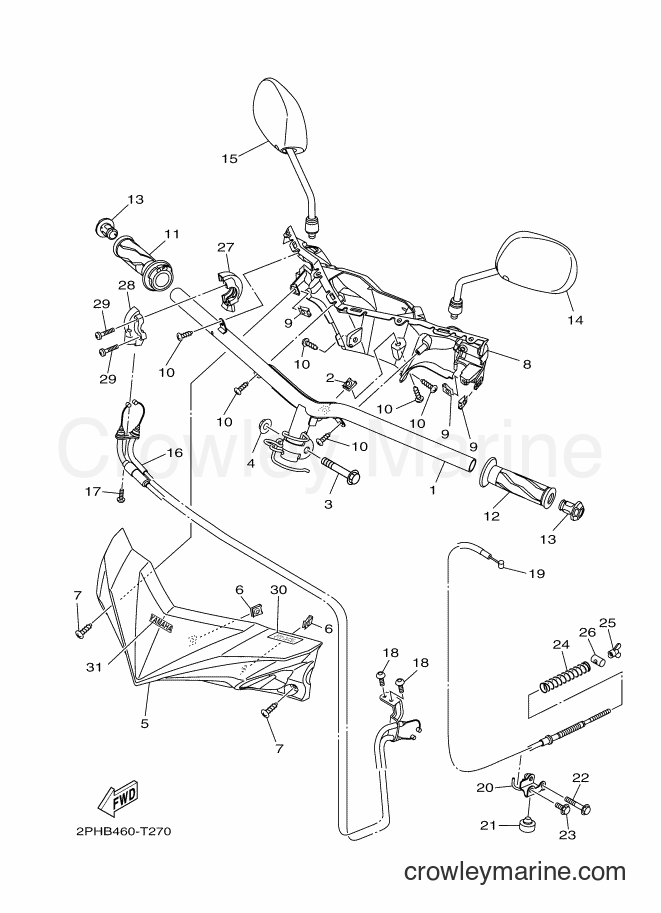

2018 Scooter LNS125 - LNS125 (2PHD) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNS125 (2PHD) [010] - STEERING HANDLE & CABLE
Change View:
HANDLE COMP.
1
Yamaha Motors
HANDLE COMP.2PH-F6110-00
Required: 1
HANDLE COMP.
Price unavailable
BOLT, FLANGE
3
Yamaha Motors
BOLT, FLANGE90105-10896
Required: 1
BOLT, FLANGE
Price unavailable
-15%
SELF-LOCKING NUT
4
Yamaha Motors
SELF-LOCKING NUT90185-10011-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details
COVER, HANDLE UPPER 1
5
Yamaha Motors
COVER, HANDLE UPPER 12PH-F6143-00-PA
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
COVER, HANDLE UPPER 1
5
Yamaha Motors
COVER, HANDLE UPPER 12PH-F6143-00-P0
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
COVER, HANDLE UPPER 2
8
Yamaha Motors
COVER, HANDLE UPPER 22PH-F6145-00
Required: 1
COVER, HANDLE UPPER 2
Price unavailable
GRIP ASSY
11
Yamaha Motors
GRIP ASSY2PH-F6240-00
Required: 1
GRIP ASSY
Price unavailable
GRIP
12
Yamaha Motors
GRIP2PH-F6241-00
Required: 1
GRIP
Price unavailable
END, GRIP
13
Yamaha Motors
END, GRIP2PH-F6246-00
Required: 2
END, GRIP
Price unavailable
REAR VIEW MIRROR ASSY (LEFT)
14
Yamaha Motors
REAR VIEW MIRROR ASSY (LEFT)2PH-F6280-00
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
REAR VIEW MIRROR ASSY (LEFT)
14
Yamaha Motors
REAR VIEW MIRROR ASSY (LEFT)54P-F6280-00
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
REAR VIEW MIRROR ASSY (LEFT)
14
Yamaha Motors
REAR VIEW MIRROR ASSY (LEFT)2P2-F6280-11
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
REAR VIEW MIRROR ASSY (RIGHT)
15
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)2PH-F6290-00
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
REAR VIEW MIRROR ASSY (RIGHT)
15
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)2P2-F6290-11
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
REAR VIEW MIRROR ASSY (RIGHT)
15
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)54P-F6290-00
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
THROTTLE CABLE ASSY
16
Yamaha Motors
THROTTLE CABLE ASSY2PH-F6301-20
Required: 1
THROTTLE CABLE ASSY
Price unavailable
THROTTLE CABLE ASSY
16
Yamaha Motors
THROTTLE CABLE ASSY2PH-F6301-30
Required: 1
THROTTLE CABLE ASSY
Price unavailable
-15%
Button head bolt
17
Yamaha Motors
Button head bolt92012-05016-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Button head bolt
18
Yamaha Motors
Button head bolt92012-05010-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
CABLE, BRAKE
19
Yamaha Motors
CABLE, BRAKE2PH-F6351-00
Required: 1
CABLE, BRAKE
Price unavailable
CABLE, BRAKE
19
Yamaha Motors
CABLE, BRAKE2PH-F6351-10
Required: 1
CABLE, BRAKE
Price unavailable
HOLDER, WIRE
20
Yamaha Motors
HOLDER, WIRE2PH-F637G-00
Required: 1
HOLDER, WIRE
Price unavailable
STOPPER
21
Yamaha Motors
STOPPER2PH-F6257-00
Required: 1
STOPPER
Price unavailable
BOLT, FLANGE DEEP RECESS
22
Yamaha Motors
BOLT, FLANGE DEEP RECESS95E32-06040
Required: 1
BOLT, FLANGE DEEP RECESS
Price unavailable
-15%
DEEP FLANGE BOLT
23
Yamaha Motors
DEEP FLANGE BOLT95E32-06014-00
Required: 1
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.45
$0.38
You save $0.07
More details
SPRING, COMPRESSION
24
Yamaha Motors
SPRING, COMPRESSION90501-16003
Required: 1
SPRING, COMPRESSION
Price unavailable
CAP, GRIP UPPER
27
Yamaha Motors
CAP, GRIP UPPER54P-F6281-01
Required: 1
CAP, GRIP UPPER
Price unavailable
CAP, GRIP UNDER
28
Yamaha Motors
CAP, GRIP UNDER54P-F6282-00
Required: 1
CAP, GRIP UNDER
Price unavailable
-15%
Emblem / Rear APPLIQUE
30
Yamaha Motors
Emblem / Rear APPLIQUE2PH-F1737-00-00
Required: 1
EMBLEM
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
EMBLEM, YAMAHA
31
Yamaha Motors
EMBLEM, YAMAHA3S0-F153E-10
Required: 1
EMBLEM, YAMAHA
Price unavailable
EMBLEM, YAMAHA
31
Yamaha Motors
EMBLEM, YAMAHA3S0-F153E-50
Required: 1
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
