2017 Scooter YP400RA - YP400RA (1SDA) [050] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

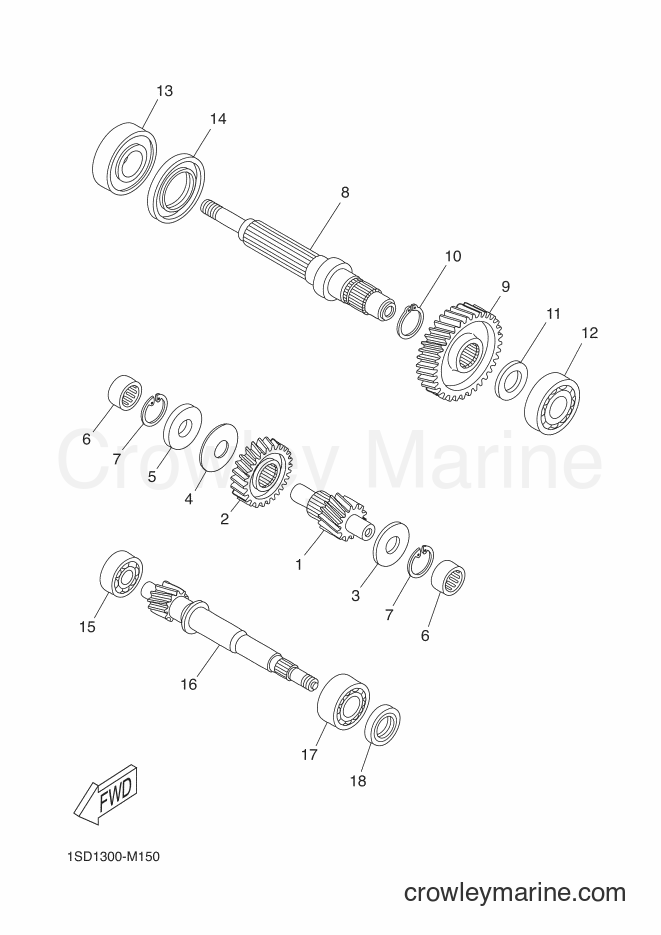

Yamaha Motors YP400RA (1SDA) [050] - TRANSMISSION
Change View:
AXLE, MAIN
1
Yamaha Motors
AXLE, MAIN1SD-E7411-00
Required: 1
AXLE, MAIN
Price unavailable
GEAR, PRIMARY DRIVEN
2
Yamaha Motors
GEAR, PRIMARY DRIVEN1SD-E6151-00
Required: 1
GEAR, PRIMARY DRIVEN
Price unavailable
WASHER, PLATE
3
Yamaha Motors
WASHER, PLATE90201-20X04
Required: 1
WASHER, PLATE
Price unavailable
WASHER, CONICAL SPRING
4
Yamaha Motors
WASHER, CONICAL SPRING90208-20X00
Required: 1
WASHER, CONICAL SPRING
Price unavailable
-15%
Plain Washer
5
Yamaha Motors
Plain Washer90201-20027-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details
BEARING
6
Yamaha Motors
BEARING93311-520Y0
Required: 2
BEARING
Price unavailable
-15%
Circle Clip
7
Yamaha Motors
Circle Clip99009-34700-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
AXLE, DRIVE
8
Yamaha Motors
AXLE, DRIVE1SD-E7421-00
Required: 1
AXLE, DRIVE
Price unavailable
GEAR, 1ST WHEEL
9
Yamaha Motors
GEAR, 1ST WHEEL1SD-E7211-00
Required: 1
GEAR, 1ST WHEEL
Price unavailable
-15%
Circle Clip
10
Yamaha Motors
Circle Clip99009-28400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
WASHER, PLATE
11
Yamaha Motors
WASHER, PLATE90201-25X01
Required: 1
WASHER, PLATE
Price unavailable
BEARING
12
Yamaha Motors
BEARING93306-305X4
Required: 1
BEARING
Price unavailable
BEARING
13
Yamaha Motors
BEARING93306-306Y9
Required: 1
BEARING
Price unavailable
-15%
Oil Seal
14
Yamaha Motors
Oil Seal93102-44008-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$23.99
$20.39
You save $3.60
More details
BEARING
15
Yamaha Motors
BEARING93306-304YM
Required: 1
BEARING
Price unavailable
GEAR, PRIMARY DRIVE
16
Yamaha Motors
GEAR, PRIMARY DRIVE1SD-E6111-00
Required: 1
GEAR, PRIMARY DRIVE
Price unavailable
BEARING
17
Yamaha Motors
BEARING93305-205Y1
Required: 1
BEARING
Price unavailable
OIL SEAL
18
Yamaha Motors
OIL SEAL93102-25800
Required: 1
OIL SEAL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
