All diagrams for this model

2017 Scooter YP400RA - YP400RA (1SDA) [060] CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

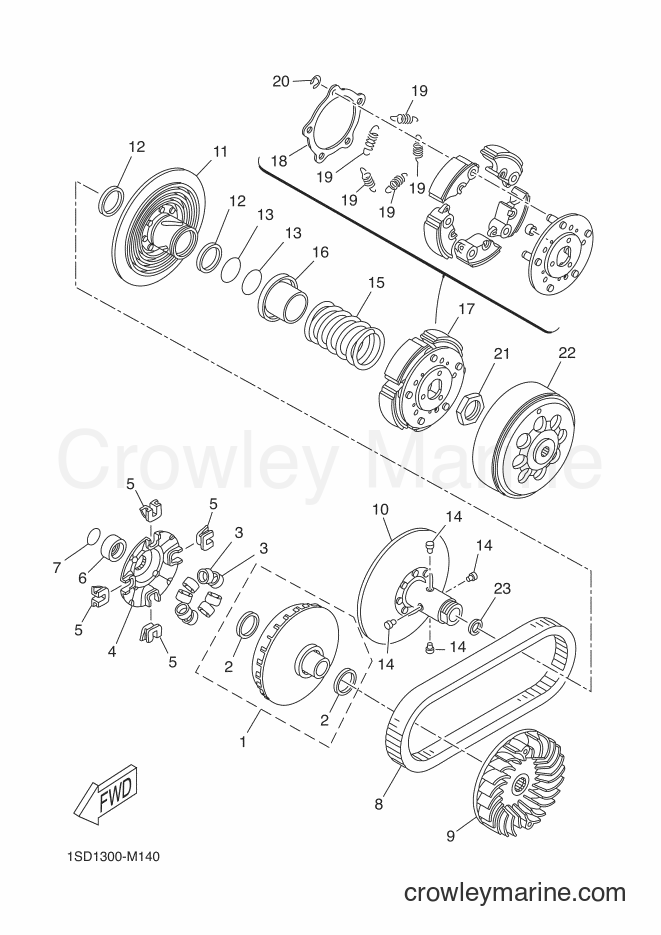

Yamaha Motors YP400RA (1SDA) [060] - CLUTCH
Change View:
PRIMARY SHEAVE CAP COMP.
1
Yamaha Motors
PRIMARY SHEAVE CAP COMP.1SD-WE762-00
Required: 1
PRIMARY SHEAVE CAP COMP.
Price unavailable
. OIL SEAL
2
Yamaha Motors
. OIL SEAL93101-35800
Required: 2
. OIL SEAL
Price unavailable
WEIGHT
3
Yamaha Motors
WEIGHT1SD-E7632-10
Required: 8
WEIGHT
Price unavailable
CAM
4
Yamaha Motors
CAM1SD-E7623-10
Required: 1
CAM
Price unavailable
SLIDER
5
Yamaha Motors
SLIDER1SD-E7653-00
Required: 4
SLIDER
Price unavailable
COLLAR, DISTANCE 1
6
Yamaha Motors
COLLAR, DISTANCE 11SD-E7685-00
Required: 1
COLLAR, DISTANCE 1
Price unavailable
O-RING
7
Yamaha Motors
O-RING93210-27X00
Required: 1
O-RING
Price unavailable
V-BELT
8
Yamaha Motors
V-BELT1SD-E7641-00
Required: 1
V-BELT
Price unavailable
SHEAVE, PRIMARY FIXED
9
Yamaha Motors
SHEAVE, PRIMARY FIXED1SD-E7611-00
Required: 1
SHEAVE, PRIMARY FIXED
Price unavailable
SECONDARY FIXED SHEAVE COMP.
10
Yamaha Motors
SECONDARY FIXED SHEAVE COMP.1SD-E7660-20
Required: 1
SECONDARY FIXED SHEAVE COMP.
Price unavailable
SECONDARY SLIDING SHEAVE
11
Yamaha Motors
SECONDARY SLIDING SHEAVE1SD-E7670-20
Required: 1
SECONDARY SLIDING SHEAVE
Price unavailable
-15%
Oil Seal
12
Yamaha Motors
Oil Seal93104-41119-00
Required: 2
OIL SEAL
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
O-RING
13
Yamaha Motors
O-RING93210-43X03
Required: 2
O-RING
Price unavailable
PIN, GUIDE
14
Yamaha Motors
PIN, GUIDE1SD-E7664-10
Required: 4
PIN, GUIDE
Price unavailable
SPRING, COMPRESSION
15
Yamaha Motors
SPRING, COMPRESSION90501-55X01
Required: 1
SPRING, COMPRESSION
Price unavailable
-15%
SPRING SEAT COMP.
16
Yamaha Motors
SPRING SEAT COMP.5RU-17690-00-00
Required: 1
SPRING SEAT COMP.
Cross Ship
Leaves in 2-5 days
$39.99
$33.99
You save $6.00
More details
CLUTCH CARRIER ASSY
17
Yamaha Motors
CLUTCH CARRIER ASSY34B-16620-00
Required: 1
CLUTCH CARRIER ASSY
Price unavailable
. PLATE, WEIGHT THRUST
18
Yamaha Motors
. PLATE, WEIGHT THRUST34B-16523-00
Required: 1
. PLATE, WEIGHT THRUST
Price unavailable
. SPRING, CLUTCH WEIGHT 1
19
Yamaha Motors
. SPRING, CLUTCH WEIGHT 134B-16626-00
Required: 5
. SPRING, CLUTCH WEIGHT 1
Price unavailable
NUT
21
Yamaha Motors
NUT90170-36X04
Required: 1
NUT
Price unavailable
CLUTCH HOUSING COMP.
22
Yamaha Motors
CLUTCH HOUSING COMP.34B-16611-00
Required: 1
CLUTCH HOUSING COMP.
Price unavailable
WASHER, PLATE
23
Yamaha Motors
WASHER, PLATE90201-17X03
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
