2017 Scooter T150 - T150 (2PV8) [010] STARTER CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

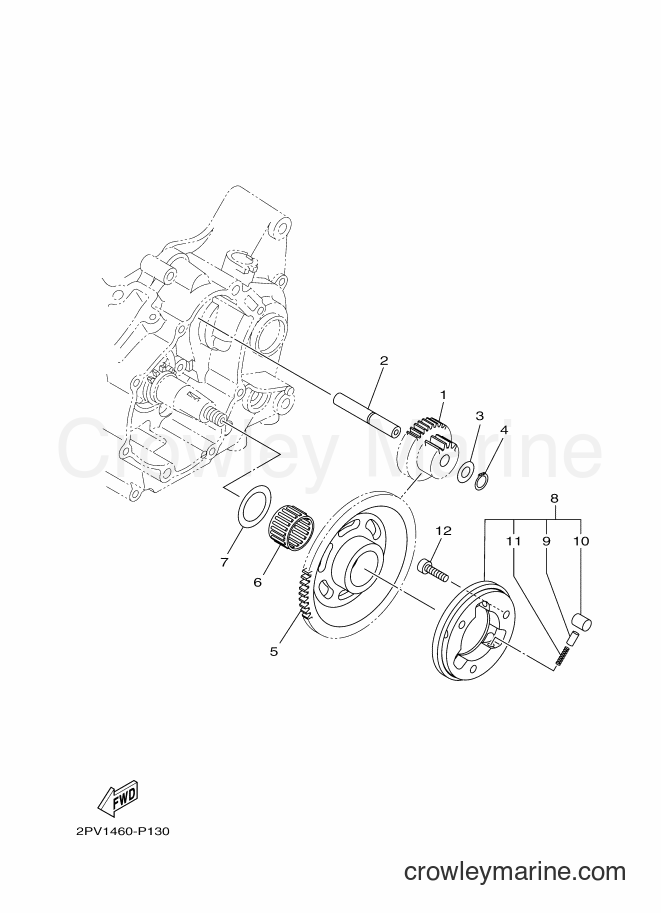

Yamaha Motors T150 (2PV8) [010] - STARTER CLUTCH
Change View:
GEAR 2
1
Yamaha Motors
GEAR 2B48-E5514-00
Required: 1
GEAR 2
Price unavailable
SHAFT 1
2
Yamaha Motors
SHAFT 138B-E5521-00
Required: 1
SHAFT 1
Price unavailable
SHAFT 1
2
Yamaha Motors
SHAFT 13C1-E5521-00
Required: 1
SHAFT 1
Price unavailable
-15%
Plate Washer
3
Yamaha Motors
Plate Washer90201-08759-00
Required: 1
WASHER, PLATE
Supersedes: 90201-105E8-00
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
-15%
Circle Clip
4
Yamaha Motors
Circle Clip99009-10400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
WHEEL, STARTER
5
Yamaha Motors
WHEEL, STARTER2PV-E5524-00
Required: 1
WHEEL, STARTER
Price unavailable
WHEEL, STARTER
5
Yamaha Motors
WHEEL, STARTER1PA-E5524-00
Required: 1
WHEEL, STARTER
Price unavailable
BEARING
6
Yamaha Motors
BEARING93310-325X3
Required: 1
BEARING
Price unavailable
BEARING
6
Yamaha Motors
BEARING93310-325X1
Required: 1
BEARING
Price unavailable
STARTER CLUTCH OUTER ASSY
8
Yamaha Motors
STARTER CLUTCH OUTER ASSY2PV-E5580-00
Required: 1
STARTER CLUTCH OUTER ASSY
Price unavailable
. CAP, STARTER CLUTCH SPRING
9
Yamaha Motors
. CAP, STARTER CLUTCH SPRING2PH-E5583-10
Required: 3
. CAP, STARTER CLUTCH SPRING
Price unavailable
. PIN, DOWEL
10
Yamaha Motors
. PIN, DOWEL1ST-E5614-00
Required: 3
. PIN, DOWEL
Price unavailable
. SPRING, RETURN
11
Yamaha Motors
. SPRING, RETURN2PV-E5572-00
Required: 3
. SPRING, RETURN
Price unavailable
BOLT, HEXAGON SOCKET HEAD
12
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06873
Required: 3
BOLT, HEXAGON SOCKET HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
