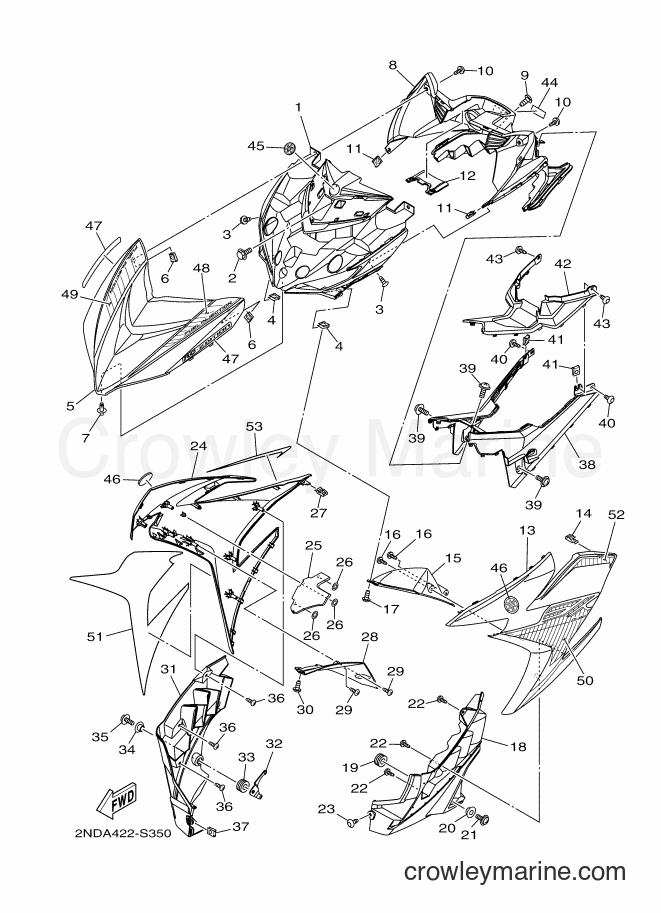

2017 Scooter T150 - T150 (2NDB) [990] LEG SHIELD 2 diagram
![Yamaha Motors T150 (2NDB) [990] - LEG SHIELD 2](https://cdn.crowleymarine.com/yamaha/7sjSuKBK.png)
1
Yamaha Motors
PANEL, INNER 12ND-F836K-00
Required: 1
PANEL, INNER 1
Price unavailable
-15%
2
Yamaha Motors
Bolt with Washer90119-06137-00
Required: 1
BOLT, WITH WASHER
$8.07
You save $1.42
3
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
-50%
4
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
5
Yamaha Motors
PANEL, FRONT2ND-F3391-00-P0
Required: 1
PANEL, FRONT
Price unavailable
-50%
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
8
Yamaha Motors
PANEL, INNER 22ND-F836L-00
Required: 1
PANEL, INNER 2
Price unavailable
9
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 1
SCREW, WITH WASHER
Price unavailable
10
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
-50%
11
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
12
Yamaha Motors
COVER 32ND-F843J-00
Required: 1
COVER 3
Price unavailable
13
Yamaha Motors
PANEL 12ND-F835U-00-P6
Required: 1
PANEL 1
Price unavailable
14
Yamaha Motors
HOOK4P8-F8379-00
Required: 1
HOOK
Price unavailable
15
Yamaha Motors
GUIDE, AIR 12ND-F137U-00
Required: 1
GUIDE, AIR 1
Price unavailable
-15%
16
Yamaha Motors
Tapping Screw97707-40014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
17
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 1
SCREW, ROUND TAPPING
Price unavailable
18
Yamaha Motors
COVER, UNDER2ND-F8385-00
Required: 1
COVER, UNDER
Price unavailable
-15%
19
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
20
Yamaha Motors
COLLAR90387-09801
Required: 1
COLLAR
Price unavailable
-15%
21
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.07
You save $1.42
-15%
22
Yamaha Motors
Tapping Screw97707-40014-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
23
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 1
SCREW, ROUND TAPPING
Price unavailable
24
Yamaha Motors
PANEL 22ND-F835V-00-P6
Required: 1
PANEL 2
Price unavailable
25
Yamaha Motors
SHIELD, HEAT2ND-F199H-00
Required: 1
SHIELD, HEAT
Price unavailable
26
Yamaha Motors
NUT, SPRING90183-05801
Required: 3
NUT, SPRING
Price unavailable
27
Yamaha Motors
HOOK4P8-F8379-00
Required: 1
HOOK
Price unavailable
28
Yamaha Motors
GUIDE, AIR 22ND-F137V-00
Required: 1
GUIDE, AIR 2
Price unavailable
-15%
29
Yamaha Motors
Tapping Screw97707-40014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
30
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 1
SCREW, ROUND TAPPING
Price unavailable
31
Yamaha Motors
COVER, UNDER 22ND-F8395-00
Required: 1
COVER, UNDER 2
Price unavailable
32
Yamaha Motors
STAY 22ND-F8322-00
Required: 1
STAY 2
Price unavailable
-15%
33
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
34
Yamaha Motors
COLLAR90387-09801
Required: 1
COLLAR
Price unavailable
-15%
35
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.07
You save $1.42
-15%
36
Yamaha Motors
Tapping Screw97707-40014-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27
-50%
37
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
38
Yamaha Motors
COVER 12ND-F842M-00-P5
Required: 1
COVER 1
Price unavailable
-15%
39
Yamaha Motors
Screw with Washer90159-06060-00
Required: 3
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.07
You save $1.42
40
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
-50%
41
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
42
Yamaha Motors
COVER 22ND-F842N-00
Required: 1
COVER 2
Price unavailable
43
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
44
Yamaha Motors
LABEL, WARNING2ND-F1568-00
Required: 1
LABEL, WARNING
Price unavailable
45
Yamaha Motors
TUNING FORK MARK2ND-F836B-00
Required: 1
TUNING FORK MARK
Price unavailable
46
Yamaha Motors
TUNING FORK MARK5P1-F175C-00
Required: 2
TUNING FORK MARK
Price unavailable
47
Yamaha Motors
GRAPHIC 562ND-F83CB-00
Required: 2
GRAPHIC 56
Price unavailable
48
Yamaha Motors
GRAPHIC 572ND-F83CC-00
Required: 1
GRAPHIC 57
Price unavailable
49
Yamaha Motors
GRAPHIC 582ND-F83CD-00
Required: 1
GRAPHIC 58
Price unavailable
50
Yamaha Motors
GRAPHIC 592ND-F83CE-00
Required: 1
GRAPHIC 59
Price unavailable
51
Yamaha Motors
GRAPHIC 602ND-F83CF-00
Required: 1
GRAPHIC 60
Price unavailable
52
Yamaha Motors
GRAPHIC 612ND-F83CG-00
Required: 1
GRAPHIC 61
Price unavailable
53
Yamaha Motors
GRAPHIC 622ND-F83CH-00
Required: 1
GRAPHIC 62
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
