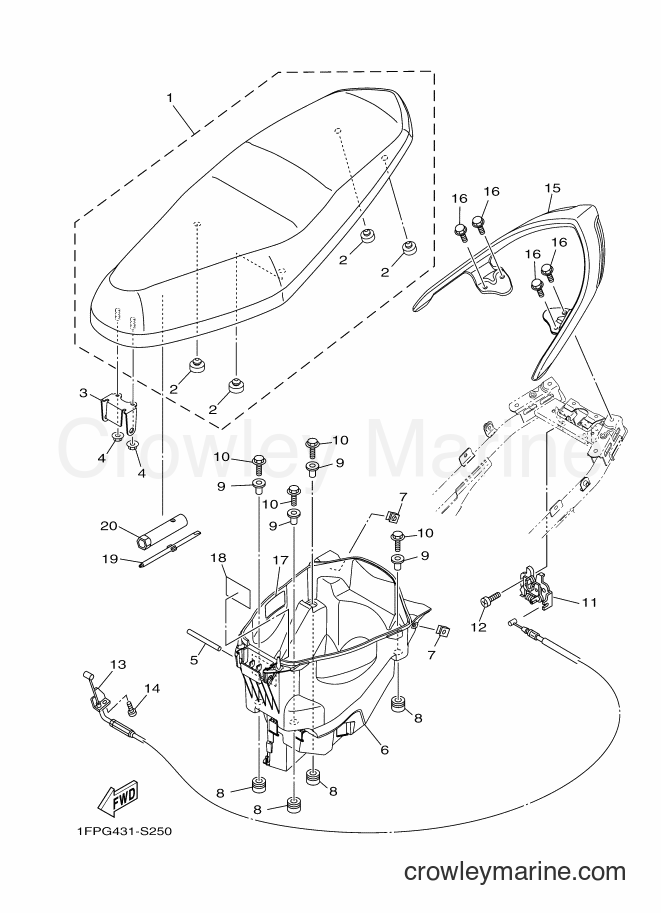

Yamaha Motors T115FL (1FPJ) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY1FP-F4730-10
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. PAD, SEAT
2
Yamaha Motors
. PAD, SEAT16S-F4741-10
Required: 4
. PAD, SEAT
Price unavailable
HINGE, SEAT
3
Yamaha Motors
HINGE, SEAT1FP-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
PIN, SEAT FITTING
5
Yamaha Motors
PIN, SEAT FITTING2BL-F4727-00
Required: 1
PIN, SEAT FITTING
Price unavailable
BOX 1
6
Yamaha Motors
BOX 11FC-F473R-00
Required: 1
BOX 1
Price unavailable
GROMMET
8
Yamaha Motors
GROMMET90480-14806
Required: 4
GROMMET
Price unavailable
COLLAR
9
Yamaha Motors
COLLAR1FC-F412G-00
Required: 4
COLLAR
Price unavailable
-15%
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06025-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
SEAT LOCK ASSY
11
Yamaha Motors
SEAT LOCK ASSY1FP-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
-12%
Screw
12
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
CABLE, SEAT LOCK
13
Yamaha Motors
CABLE, SEAT LOCK1FC-F478E-10
Required: 1
CABLE, SEAT LOCK
Price unavailable
HANDLE, SEAT
15
Yamaha Motors
HANDLE, SEAT1FP-F4773-10-PB
Required: 1
HANDLE, SEAT
Price unavailable
HANDLE, SEAT
15
Yamaha Motors
HANDLE, SEAT1FP-F4773-10-P6
Required: 1
HANDLE, SEAT
Price unavailable
BOLT, FLANGE
16
Yamaha Motors
BOLT, FLANGE95812-06020
Required: 4
BOLT, FLANGE
Price unavailable
LABEL, TIRE
17
Yamaha Motors
LABEL, TIRE1FP-F1668-10
Required: 1
LABEL, TIRE
Price unavailable
OIL, LABEL
18
Yamaha Motors
OIL, LABEL1FP-F178B-02
Required: 1
OIL, LABEL
Price unavailable
DRIVER
19
Yamaha Motors
DRIVER5VV-F8152-00
Required: 1
DRIVER
Price unavailable
BOX, SPARK PLUG
20
Yamaha Motors
BOX, SPARK PLUG2BL-F814F-00
Required: 1
BOX, SPARK PLUG
Price unavailable
