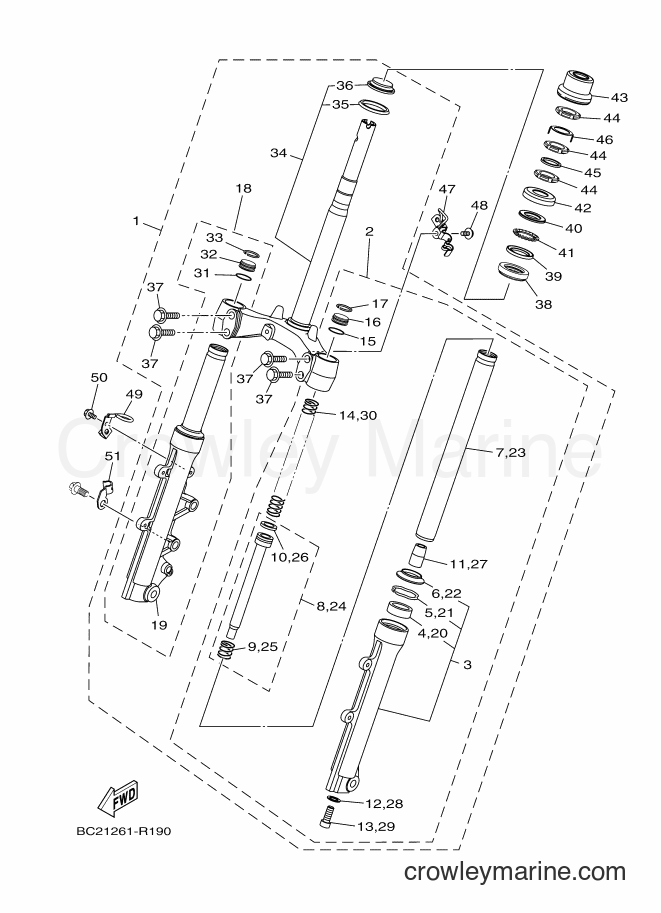

2017 Scooter GPD150-A - GPD150-A (BV41) [010] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors GPD150-A (BV41) [010] - STEERING
Change View:
FRONT FORK ASSY
1
Yamaha Motors
FRONT FORK ASSY2DS-F3100-00
Required: 1
FRONT FORK ASSY
Price unavailable
. FRONT FORK ASSY (L.H)
2
Yamaha Motors
. FRONT FORK ASSY (L.H)2DS-F3102-00
Required: 1
. FRONT FORK ASSY (L.H)
Price unavailable
. . TUBE, OUTER (L.H)
3
Yamaha Motors
. . TUBE, OUTER (L.H)2DP-F3126-00
Required: 1
. . TUBE, OUTER (L.H)
Price unavailable
. . . OIL SEAL
4
Yamaha Motors
. . . OIL SEAL3HB-F3145-00
Required: 1
. . . OIL SEAL
Price unavailable
. . . RING, SNAP
5
Yamaha Motors
. . . RING, SNAP3V3-F3156-00
Required: 1
. . . RING, SNAP
Price unavailable
. . . SEAL, DUST
6
Yamaha Motors
. . . SEAL, DUST3HB-F3144-00
Required: 1
. . . SEAL, DUST
Price unavailable
. . INNER TUBE COMP.1
7
Yamaha Motors
. . INNER TUBE COMP.12DS-F3110-00
Required: 1
. . INNER TUBE COMP.1
Price unavailable
. . CYLINDER COMP., FRONT FORK
8
Yamaha Motors
. . CYLINDER COMP., FRONT FORK2DP-F3170-00
Required: 1
. . CYLINDER COMP., FRONT FORK
Price unavailable
. . . SPRING, SUB
9
Yamaha Motors
. . . SPRING, SUB2K5-23152-00
Required: 1
. . . SPRING, SUB
Price unavailable
. . . RING, PISTON
10
Yamaha Motors
. . . RING, PISTON2DP-F3157-00
Required: 1
. . . RING, PISTON
Price unavailable
. . SPINDLE, TAPER
11
Yamaha Motors
. . SPINDLE, TAPER2DP-F3173-00
Required: 1
. . SPINDLE, TAPER
Price unavailable
-15%
Tank Cap Gasket
12
Yamaha Motors
Tank Cap Gasket2BU-F3158-00-00
Required: 1
. . GASKET
Cross Ship
Leaves in 2-5 days
$3.65
$3.10
You save $0.55
More details
. . BOLT, HEXAGON SOCKET HEAD
13
Yamaha Motors
. . BOLT, HEXAGON SOCKET HEAD278-F3181-50
Required: 1
. . BOLT, HEXAGON SOCKET HEAD
Price unavailable
. . SPRING, FRONT FORK
14
Yamaha Motors
. . SPRING, FRONT FORK2DP-F3141-00
Required: 1
. . SPRING, FRONT FORK
Price unavailable
. . BOLT, CAP
16
Yamaha Motors
. . BOLT, CAP2DP-F3111-00
Required: 1
. . BOLT, CAP
Price unavailable
. . RING, SNAP
17
Yamaha Motors
. . RING, SNAP2DP-F3153-00
Required: 1
. . RING, SNAP
Price unavailable
. FRONT FORK ASSY (R.H)
18
Yamaha Motors
. FRONT FORK ASSY (R.H)2DS-F3103-00
Required: 1
. FRONT FORK ASSY (R.H)
Price unavailable
. . TUBE, OUTER
19
Yamaha Motors
. . TUBE, OUTER2DP-F3136-00
Required: 1
. . TUBE, OUTER
Price unavailable
. . . OIL SEAL
20
Yamaha Motors
. . . OIL SEAL3HB-F3145-00
Required: 1
. . . OIL SEAL
Price unavailable
. . . RING, SNAP
21
Yamaha Motors
. . . RING, SNAP3V3-F3156-00
Required: 1
. . . RING, SNAP
Price unavailable
. . . SEAL, DUST
22
Yamaha Motors
. . . SEAL, DUST3HB-F3144-00
Required: 1
. . . SEAL, DUST
Price unavailable
. . INNER TUBE COMP.1
23
Yamaha Motors
. . INNER TUBE COMP.12DS-F3110-00
Required: 1
. . INNER TUBE COMP.1
Price unavailable
. . CYLINDER COMP., FRONT FORK
24
Yamaha Motors
. . CYLINDER COMP., FRONT FORK2DP-F3170-00
Required: 1
. . CYLINDER COMP., FRONT FORK
Price unavailable
. . . SPRING, SUB
25
Yamaha Motors
. . . SPRING, SUB2K5-23152-00
Required: 1
. . . SPRING, SUB
Price unavailable
. . . RING, PISTON
26
Yamaha Motors
. . . RING, PISTON2DP-F3157-00
Required: 1
. . . RING, PISTON
Price unavailable
. . SPINDLE, TAPER
27
Yamaha Motors
. . SPINDLE, TAPER2DP-F3173-00
Required: 1
. . SPINDLE, TAPER
Price unavailable
-15%
Tank Cap Gasket
28
Yamaha Motors
Tank Cap Gasket2BU-F3158-00-00
Required: 1
. . GASKET
Cross Ship
Leaves in 2-5 days
$3.65
$3.10
You save $0.55
More details
. . BOLT, HEXAGON SOCKET HEAD
29
Yamaha Motors
. . BOLT, HEXAGON SOCKET HEAD278-F3181-50
Required: 1
. . BOLT, HEXAGON SOCKET HEAD
Price unavailable
. . SPRING, FRONT FORK
30
Yamaha Motors
. . SPRING, FRONT FORK2DP-F3141-00
Required: 1
. . SPRING, FRONT FORK
Price unavailable
. . BOLT, CAP
32
Yamaha Motors
. . BOLT, CAP2DP-F3111-00
Required: 1
. . BOLT, CAP
Price unavailable
. . RING, SNAP
33
Yamaha Motors
. . RING, SNAP2DP-F3153-00
Required: 1
. . RING, SNAP
Price unavailable
. UNDER BRACKET COMP.
34
Yamaha Motors
. UNDER BRACKET COMP.2DP-F3340-00
Required: 1
. UNDER BRACKET COMP.
Price unavailable
-15%
STEERING SEAL
35
Yamaha Motors
STEERING SEAL5VC-23462-00-00
Required: 1
. . SEAL, DUST
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
. . BEARING, STEERING LOWER
36
Yamaha Motors
. . BEARING, STEERING LOWER5BP-F3875-00
Required: 1
. . BEARING, STEERING LOWER
Price unavailable
. BOLT 1
37
Yamaha Motors
. BOLT 15YW-F3346-10
Required: 4
. BOLT 1
Price unavailable
BEARING, STEERING UPPER
38
Yamaha Motors
BEARING, STEERING UPPER5BP-F3873-01
Required: 1
BEARING, STEERING UPPER
Price unavailable
RACE, BALL 2
39
Yamaha Motors
RACE, BALL 254P-F3412-00
Required: 1
RACE, BALL 2
Price unavailable
RACE, BALL 1
40
Yamaha Motors
RACE, BALL 154P-F3411-00
Required: 1
RACE, BALL 1
Price unavailable
RETAINER, BALL BEARING
41
Yamaha Motors
RETAINER, BALL BEARING5TL-F341E-10
Required: 1
RETAINER, BALL BEARING
Price unavailable
COVER, BALL RACE 2
42
Yamaha Motors
COVER, BALL RACE 23AY-F3416-00
Required: 1
COVER, BALL RACE 2
Price unavailable
COVER, BALL RACE 1
43
Yamaha Motors
COVER, BALL RACE 11LB-F3415-00
Required: 1
COVER, BALL RACE 1
Price unavailable
-15%
Nut
44
Yamaha Motors
Nut90179-25810-00
Required: 3
NUT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
Plate Washer
45
Yamaha Motors
Plate Washer90202-26142-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
WASHER, SPECIAL
46
Yamaha Motors
WASHER, SPECIAL1PA-F3418-00
Required: 1
WASHER, SPECIAL
Price unavailable
HOLDER, BRAKE HOSE 1
47
Yamaha Motors
HOLDER, BRAKE HOSE 12DP-F5875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
HOLDER, BRAKE HOSE 2
49
Yamaha Motors
HOLDER, BRAKE HOSE 22DP-F5876-00
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
HOLDER, CABLE
51
Yamaha Motors
HOLDER, CABLE2DP-F3317-00
Required: 1
HOLDER, CABLE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
