All diagrams for this model

2016 Scooter T150 - T150 (2PV4) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

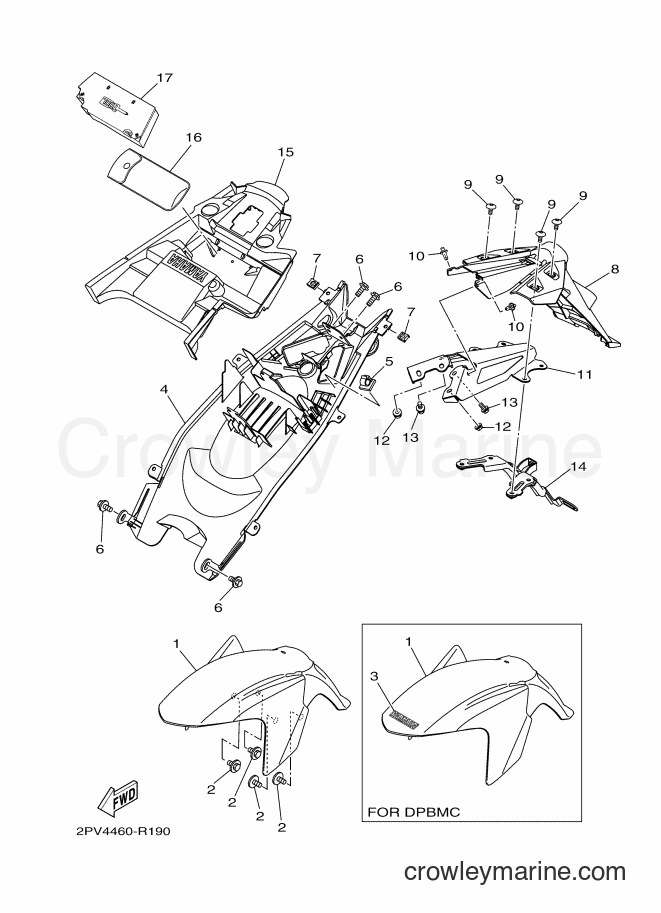

Yamaha Motors T150 (2PV4) [010] - FENDER
Change View:
FENDER, FRONT
1
Yamaha Motors
FENDER, FRONT2PV-F1511-00-P6
Required: 1
FENDER, FRONT
Price unavailable
BOLT, WITH WASHER
2
Yamaha Motors
BOLT, WITH WASHER90119-06885
Required: 4
BOLT, WITH WASHER
Price unavailable
FENDER, REAR
4
Yamaha Motors
FENDER, REAR2PV-F1611-00
Required: 1
FENDER, REAR
Price unavailable
-15%
Clamp (1GJ)
5
Yamaha Motors
Clamp (1GJ)90464-54086-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.60
$3.06
You save $0.54
More details
-15%
Bolt with Washer
6
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
GUARD, MUD
8
Yamaha Motors
GUARD, MUD2PV-F1629-00
Required: 1
GUARD, MUD
Price unavailable
BOLT,HEX. SOCKET BUTTON
9
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06848
Required: 4
BOLT,HEX. SOCKET BUTTON
Price unavailable
STAY 1
11
Yamaha Motors
STAY 12PV-F164F-00
Required: 1
STAY 1
Price unavailable
-15%
95604-06200-00
12
Yamaha Motors
95604-06200-0095607-06200-00
Required: 2
NUT, SELF U-FLANGE
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
Flange Bolt
13
Yamaha Motors
Flange Bolt95822-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.67
More details
STAY 2
14
Yamaha Motors
STAY 22PV-F164G-00
Required: 1
STAY 2
Price unavailable
BOX
15
Yamaha Motors
BOX2PV-F160E-00
Required: 1
BOX
Price unavailable
TOOL KIT
16
Yamaha Motors
TOOL KIT1S7-F8100-00
Required: 1
TOOL KIT
Price unavailable
BOX, TOOL
17
Yamaha Motors
BOX, TOOL2PV-F8173-00
Required: 1
BOX, TOOL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
