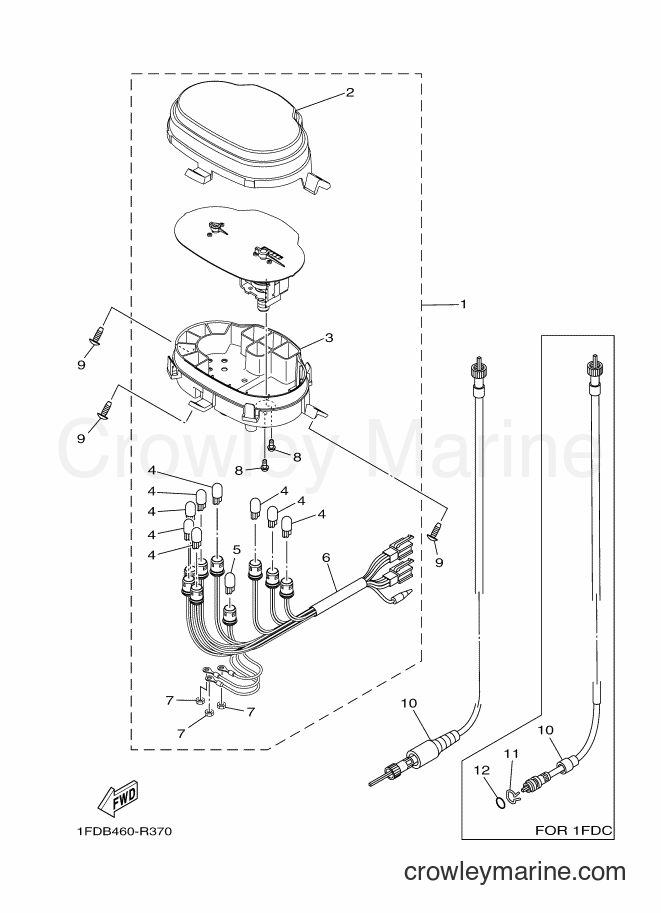

2016 Scooter T115FLE - T115FLE (1FDC) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLE (1FDC) [010] - METER
Change View:
SPEEDOMETER ASSY
1
Yamaha Motors
SPEEDOMETER ASSY1FD-H3510-10
Required: 1
SPEEDOMETER ASSY
Price unavailable
. LENS, SPEEDOMETER
2
Yamaha Motors
. LENS, SPEEDOMETER1FD-H3511-00
Required: 1
. LENS, SPEEDOMETER
Price unavailable
. CASE, METER LOWER
3
Yamaha Motors
. CASE, METER LOWER1FD-H353F-00
Required: 1
. CASE, METER LOWER
Price unavailable
. BULB (12V-1.7W T10 BLACK HEAD)
5
Yamaha Motors
. BULB (12V-1.7W T10 BLACK HEAD)32P-H3517-00
Required: 1
. BULB (12V-1.7W T10 BLACK HEAD)
Price unavailable
. SOCKET CORD ASSY
6
Yamaha Motors
. SOCKET CORD ASSY1FD-H3509-00
Required: 1
. SOCKET CORD ASSY
Price unavailable
. NUT
7
Yamaha Motors
. NUT9530N-03600
Required: 3
. NUT
Price unavailable
. SCREW, PAN HEAD WITH WASHER
8
Yamaha Motors
. SCREW, PAN HEAD WITH WASHER97602-04310
Required: 2
. SCREW, PAN HEAD WITH WASHER
Price unavailable
-15%
Tapping Screw
9
Yamaha Motors
Tapping Screw97702-50016-00
Required: 3
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
SPEEDOMETER CABLE ASSY
10
Yamaha Motors
SPEEDOMETER CABLE ASSY1FD-H3550-00
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
SPEEDOMETER CABLE ASSY
10
Yamaha Motors
SPEEDOMETER CABLE ASSY1FD-H3550-10
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
-15%
Stop Ring
11
Yamaha Motors
Stop Ring2E9-25137-01-00
Required: 1
RING, STOP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
O-RING
12
Yamaha Motors
O-RING93210-108H4
Required: 1
O-RING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
