2016 Scooter T115FLE - T115FLE (1FCF) [010] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

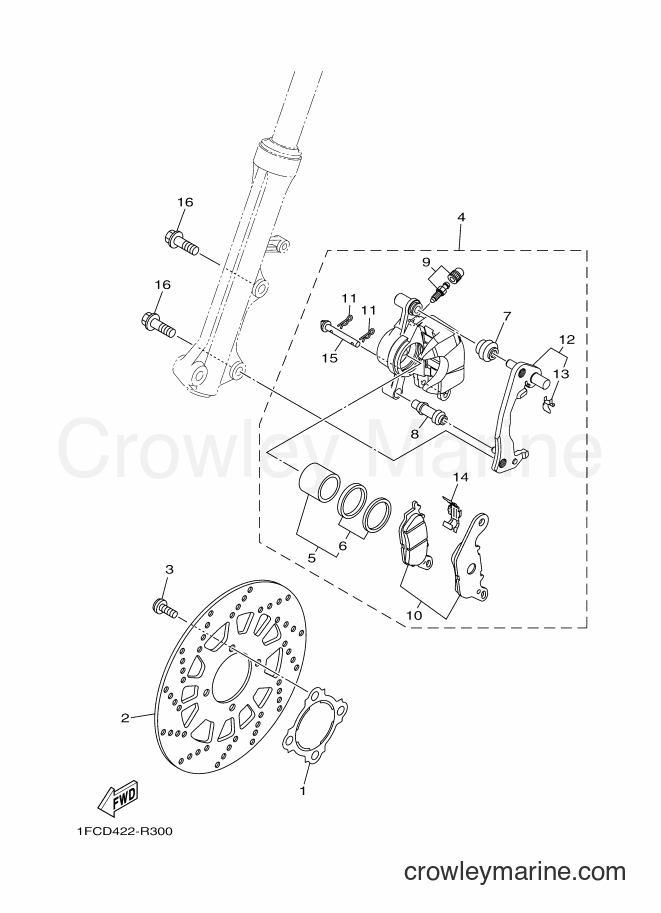

Yamaha Motors T115FLE (1FCF) [010] - FRONT BRAKE CALIPER
Change View:
PLATE, FITTING
1
Yamaha Motors
PLATE, FITTING1FC-F518A-10
Required: 1
PLATE, FITTING
Price unavailable
DISK, BRAKE (RIGHT)
2
Yamaha Motors
DISK, BRAKE (RIGHT)1FC-F582U-20
Required: 1
DISK, BRAKE (RIGHT)
Price unavailable
-15%
Bolt (F1ZR)
3
Yamaha Motors
Bolt (F1ZR)90111-08815-00
Required: 4
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
CALIPER ASSY (RIGHT)
4
Yamaha Motors
CALIPER ASSY (RIGHT)1FD-F580U-01
Required: 1
CALIPER ASSY (RIGHT)
Price unavailable
. PISTON ASSY, CALIPER
5
Yamaha Motors
. PISTON ASSY, CALIPER2BM-F5802-00
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
. . CALIPER SEAL KIT
6
Yamaha Motors
. . CALIPER SEAL KIT5YP-F5803-50
Required: 1
. . CALIPER SEAL KIT
Price unavailable
. BOOT, CALIPER
7
Yamaha Motors
. BOOT, CALIPER2BM-F5917-00
Required: 1
. BOOT, CALIPER
Price unavailable
-15%
Boot 2 (1S71)
8
Yamaha Motors
Boot 2 (1S71)5YP-F5937-00-00
Required: 1
. BOOT 2
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
-15%
Bleed Screw Kit
9
Yamaha Motors
Bleed Screw Kit15B-W0048-00-00
Required: 1
. BLEED SCREW KIT
Supersedes: 4C9-W0048-00-00
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
. BRAKE PAD KIT
10
Yamaha Motors
. BRAKE PAD KIT2BM-F5805-00
Required: 1
. BRAKE PAD KIT
Price unavailable
-15%
CLIP (1S71)
11
Yamaha Motors
CLIP (1S71)5YP-F5925-01-00
Required: 2
. CLIP
Cross Ship
Leaves in 2-5 days
$0.60
$0.51
You save $0.09
More details
. SUPPORT BRACKET ASSY
12
Yamaha Motors
. SUPPORT BRACKET ASSY2BM-F5920-00
Required: 1
. SUPPORT BRACKET ASSY
Price unavailable
. . PAD, SUPPORT 2
13
Yamaha Motors
. . PAD, SUPPORT 22BM-F5939-00
Required: 1
. . PAD, SUPPORT 2
Price unavailable
. SUPPORT, PAD
14
Yamaha Motors
. SUPPORT, PAD2BM-F5919-00
Required: 1
. SUPPORT, PAD
Price unavailable
-15%
Pad Pin
15
Yamaha Motors
Pad Pin5YP-F5924-00-00
Required: 1
. PIN, PAD
Cross Ship
Leaves in 2-5 days
$3.60
$3.06
You save $0.54
More details
BOLT, FLANGE
16
Yamaha Motors
BOLT, FLANGE90105-10831
Required: 2
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
