All diagrams for this model

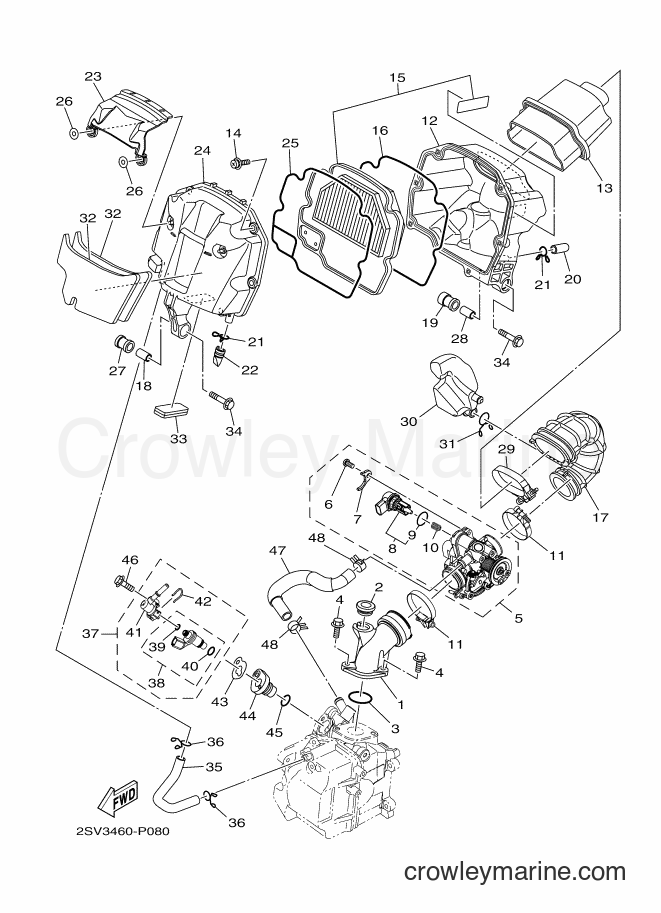

2016 Scooter AL125FC - AL125FC (BE12) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL125FC (BE12) [010] - INTAKE
Change View:
MANIFOLD
1
Yamaha Motors
MANIFOLD1PN-E3585-00
Required: 1
MANIFOLD
Price unavailable
GROMMET
2
Yamaha Motors
GROMMET1LB-E5357-00
Required: 1
GROMMET
Price unavailable
-15%
O-Ring
3
Yamaha Motors
O-Ring93210-30611-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
-15%
Flange Bolt
4
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
THROTTLE BODY ASSY
5
Yamaha Motors
THROTTLE BODY ASSY1LB-E3750-02
Required: 1
THROTTLE BODY ASSY
Price unavailable
-12%
Screw
6
Yamaha Motors
Screw98517-06012-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98502-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
-15%
Plate
7
Yamaha Motors
Plate54P-E4243-00-00
Required: 1
. PLATE
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
. STEPPING MOTOR
8
Yamaha Motors
. STEPPING MOTOR54P-H5801-00
Required: 1
. STEPPING MOTOR
Price unavailable
-15%
O-Ring
9
Yamaha Motors
O-Ring54P-E416A-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
. SPRING, PLUNGER
10
Yamaha Motors
. SPRING, PLUNGER54P-E4335-00
Required: 1
. SPRING, PLUNGER
Price unavailable
HOSE CLAMP ASSY
11
Yamaha Motors
HOSE CLAMP ASSY90450-46803
Required: 2
HOSE CLAMP ASSY
Price unavailable
CASE, AIR CLEANER 1
12
Yamaha Motors
CASE, AIR CLEANER 11LB-E4411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
CAP, CLEANER CASE 2
13
Yamaha Motors
CAP, CLEANER CASE 21LB-E4422-00
Required: 1
CAP, CLEANER CASE 2
Price unavailable
AIR CLEANER ELEMENT ASSY
15
Yamaha Motors
AIR CLEANER ELEMENT ASSY1LB-WE445-00
Required: 1
AIR CLEANER ELEMENT ASSY
Price unavailable
SEAL
16
Yamaha Motors
SEAL1LB-E4452-00
Required: 1
SEAL
Price unavailable
JOINT, AIR CLEANER 1
17
Yamaha Motors
JOINT, AIR CLEANER 11LB-E4453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
COLLAR
18
Yamaha Motors
COLLAR44D-E4449-00
Required: 1
COLLAR
Price unavailable
GROMMET
19
Yamaha Motors
GROMMET1LB-E4435-00
Required: 1
GROMMET
Price unavailable
PIPE, DRAIN
20
Yamaha Motors
PIPE, DRAIN5TL-E443E-00
Required: 1
PIPE, DRAIN
Price unavailable
CLIP
21
Yamaha Motors
CLIP90467-12808
Required: 2
CLIP
Price unavailable
PIPE, DRAIN 2
22
Yamaha Motors
PIPE, DRAIN 25TP-E443G-00
Required: 1
PIPE, DRAIN 2
Price unavailable
COVER 1
23
Yamaha Motors
COVER 11LB-E4417-00
Required: 1
COVER 1
Price unavailable
CAP, CLEANER CASE 1
24
Yamaha Motors
CAP, CLEANER CASE 11LB-E4412-00
Required: 1
CAP, CLEANER CASE 1
Price unavailable
SEAL
25
Yamaha Motors
SEAL1LB-E4457-01
Required: 1
SEAL
Price unavailable
GROMMET
27
Yamaha Motors
GROMMET1LB-E4445-00
Required: 1
GROMMET
Price unavailable
COLLAR
28
Yamaha Motors
COLLAR1LB-E4449-00
Required: 1
COLLAR
Price unavailable
BAND
29
Yamaha Motors
BAND44D-E4455-00
Required: 1
BAND
Price unavailable
RESONATOR
30
Yamaha Motors
RESONATOR1LB-E4877-00
Required: 1
RESONATOR
Price unavailable
CLIP
31
Yamaha Motors
CLIP90467-18806
Required: 1
CLIP
Price unavailable
DAMPER
32
Yamaha Motors
DAMPER1LB-E4409-00
Required: 2
DAMPER
Price unavailable
DAMPER 1
33
Yamaha Motors
DAMPER 11LB-E4425-00
Required: 1
DAMPER 1
Price unavailable
-15%
Flange Bolt
34
Yamaha Motors
Flange Bolt95812-06035-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
PIPE, BREATHER 1
35
Yamaha Motors
PIPE, BREATHER 11LB-E1166-00
Required: 1
PIPE, BREATHER 1
Price unavailable
Clip
36
Yamaha Motors
Clip90467-11825-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$0.99
More details
INJECTOR ASSY
37
Yamaha Motors
INJECTOR ASSY1DB-E3770-00
Required: 1
INJECTOR ASSY
Price unavailable
. INJECTOR
38
Yamaha Motors
. INJECTOR54P-E3761-00
Required: 1
. INJECTOR
Price unavailable
-15%
O-Ring
39
Yamaha Motors
O-Ring54P-E4147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
-15%
O-Ring
40
Yamaha Motors
O-Ring5CA-E4147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
. PIPE
41
Yamaha Motors
. PIPE1DB-E3938-00
Required: 1
. PIPE
Price unavailable
-15%
Clip
42
Yamaha Motors
Clip54P-E4137-00-00
Required: 1
. CLIP
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details
GASKET
43
Yamaha Motors
GASKET1LB-E3557-00
Required: 1
GASKET
Price unavailable
ADAPTER
44
Yamaha Motors
ADAPTER1PN-E2572-00
Required: 1
ADAPTER
Price unavailable
O-RING
45
Yamaha Motors
O-RING93210-17802
Required: 1
O-RING
Price unavailable
-15%
Flange Bolt
46
Yamaha Motors
Flange Bolt95812-06030-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
HOSE, AIR
47
Yamaha Motors
HOSE, AIR1LB-E3895-00
Required: 1
HOSE, AIR
Price unavailable
CLIP
48
Yamaha Motors
CLIP90467-15802
Required: 2
CLIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
