2016 Scooter AL125FC - AL125FC (BE12) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

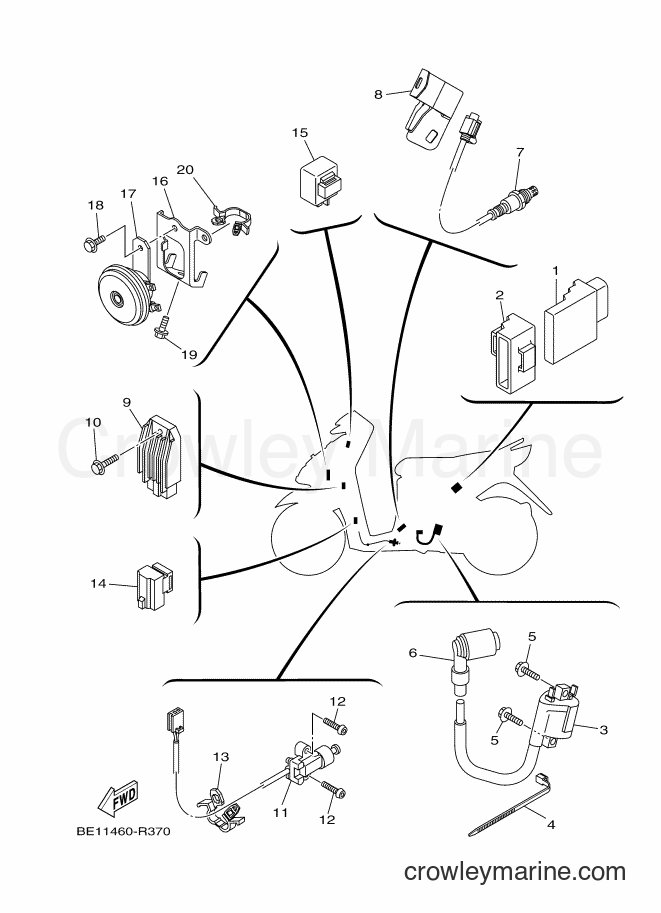

Yamaha Motors AL125FC (BE12) [010] - ELECTRICAL 2
Change View:
ENGINE CONTROL UNIT ASSY
1
Yamaha Motors
ENGINE CONTROL UNIT ASSYBE1-H591A-00
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
BAND
2
Yamaha Motors
BAND1LB-H5546-00
Required: 1
BAND
Price unavailable
IGNITION COIL ASSY
3
Yamaha Motors
IGNITION COIL ASSY1LB-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
-15%
Clamp
4
Yamaha Motors
Clamp90464-15195-00
Required: 1
CLAMP
Supersedes: 90464-13073-00
Cross Ship
Leaves in 2-5 days
$4.41
$3.75
You save $0.66
More details
-15%
Hexagon Bolt
5
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT, HEXAGON
Supersedes: 97022-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
PLUG CAP ASSY
6
Yamaha Motors
PLUG CAP ASSY1LB-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
SENSOR, OXYGEN
7
Yamaha Motors
SENSOR, OXYGEN2BM-H592A-00
Required: 1
SENSOR, OXYGEN
Price unavailable
COVER
8
Yamaha Motors
COVER1LB-H252U-00
Required: 1
COVER
Price unavailable
RECTIFIER & REGULATOR ASSY
9
Yamaha Motors
RECTIFIER & REGULATOR ASSY54P-H1960-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
BOLT, FLANGE
10
Yamaha Motors
BOLT, FLANGE90105-068A0
Required: 1
BOLT, FLANGE
Price unavailable
SWITCH, SIDE STAND
11
Yamaha Motors
SWITCH, SIDE STAND1LB-H2566-00
Required: 1
SWITCH, SIDE STAND
Price unavailable
-15%
BOLT
12
Yamaha Motors
BOLT90111-05810-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details
-15%
Clamp
13
Yamaha Motors
Clamp90464-07805-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
RELAY ASSY (3D9-00)
14
Yamaha Motors
RELAY ASSY (3D9-00)3D9-81950-00
Required: 1
RELAY ASSY (3D9-00)
Price unavailable
FLASHER RELAY ASSY
15
Yamaha Motors
FLASHER RELAY ASSY5D9-H3350-00
Required: 1
FLASHER RELAY ASSY
Price unavailable
STAY, HORN
16
Yamaha Motors
STAY, HORNBE1-H3378-00
Required: 1
STAY, HORN
Price unavailable
HORN
17
Yamaha Motors
HORNBE1-H3371-00
Required: 1
HORN
Price unavailable
-15%
Clamp
20
Yamaha Motors
Clamp90464-07805-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
