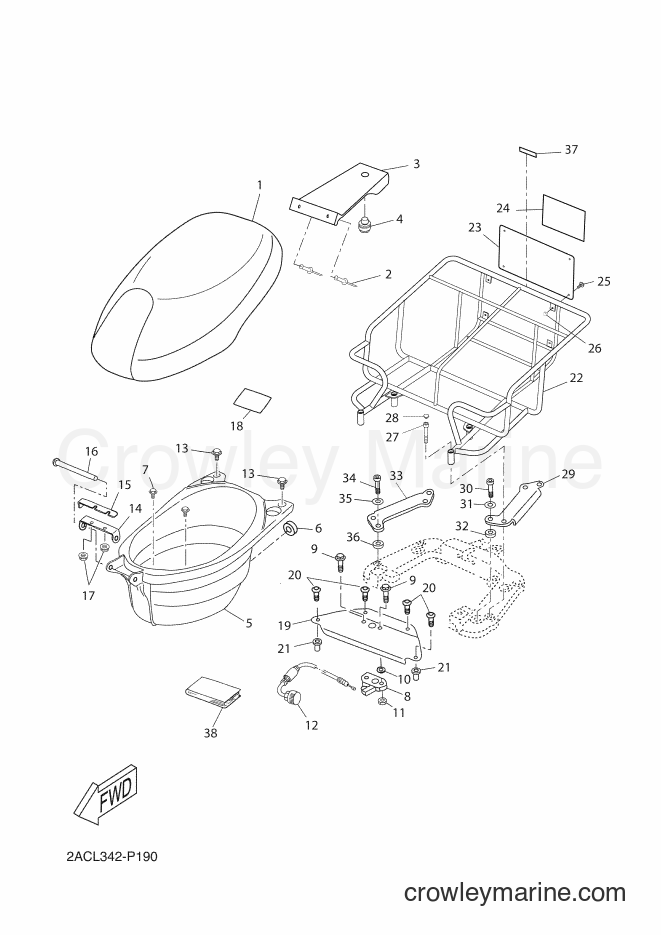

2015 Scooter YN50FT - YN50FT (2ACL) [020] SEAT diagram
![Yamaha Motors YN50FT (2ACL) [020] - SEAT](https://cdn.crowleymarine.com/yamaha/98Ppptih.png)
1
Yamaha Motors
SINGLE SEAT ASSY5C3-F4710-00
Required: 1
SINGLE SEAT ASSY
Price unavailable
1
Yamaha Motors
SINGLE SEAT ASSY2AC-F4710-00
Required: 1
SINGLE SEAT ASSY
Price unavailable
2
Yamaha Motors
RIVET, BLIND90267-40X00
Required: 2
RIVET, BLIND
Price unavailable
3
Yamaha Motors
PLATE, COVER2AC-F479R-00
Required: 1
PLATE, COVER
Price unavailable
4
Yamaha Motors
DAMPER, SEAT2AC-F4723-00
Required: 3
DAMPER, SEAT
Price unavailable
5
Yamaha Motors
BOX 15C3-F473R-00
Required: 1
BOX 1
Price unavailable
6
Yamaha Motors
GROMMET2AC-H4152-00
Required: 1
GROMMET
Price unavailable
7
Yamaha Motors
BOLT, WITH WASHER90119-06X01
Required: 2
BOLT, WITH WASHER
Price unavailable
8
Yamaha Motors
SEAT LOCK ASSY3C6-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
-15%
$8.07
You save $1.42
-15%
10
Yamaha Motors
Plate Washer90201-060H9-00
Required: 2
WASHER, PLATE
$4.67
You save $0.82
-15%
$10.62
You save $1.87
12
Yamaha Motors
CABLE, SEAT LOCK5BR-F478E-20
Required: 1
CABLE, SEAT LOCK
Price unavailable
-15%
$9.77
You save $1.72
14
Yamaha Motors
SEAT BRACKET ASSY2AC-F4708-00
Required: 1
SEAT BRACKET ASSY
Price unavailable
15
Yamaha Motors
PLATE2AC-F4712-00
Required: 1
PLATE
Price unavailable
-15%
$11.47
You save $2.02
-15%
$5.94
You save $1.05
18
Yamaha Motors
LABEL2AC-F118N-10
Required: 1
LABEL
Price unavailable
19
Yamaha Motors
STAY, SEAT2AC-F471A-00
Required: 1
STAY, SEAT
Price unavailable
-15%
20
Yamaha Motors
Button head bolt92014-05016-00
Required: 4
BOLT, BUTTON HEAD
$3.02
You save $0.53
-15%
In stock
Only 5 remaining
$6.37
You save $1.12
22
Yamaha Motors
STAY, REAR2AC-F4819-10
Required: 1
STAY, REAR
Price unavailable
23
Yamaha Motors
COVER 32AC-F4844-00
Required: 1
COVER 3
Price unavailable
24
Yamaha Motors
GRAPHIC 12AC-F173E-00
Required: 1
GRAPHIC 1
Price unavailable
-15%
25
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-05023-00
Required: 4
BOLT,HEX. SOCKET BUTTON
$8.07
You save $1.42
-15%
No longer availableSearch Nationwide Inventory
$6.37
You save $1.12
-15%
27
Yamaha Motors
BOLT91314-08070-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
$7.22
You save $1.27
-15%
$9.34
You save $1.65
29
Yamaha Motors
STAY, FRONT GUARD 12AC-F8413-00
Required: 1
STAY, FRONT GUARD 1
Price unavailable
-50%
30
Yamaha Motors
Socket Bolt91314-08035-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
In stock
Only 1 remaining
$1.35
You save $1.35
-50%
31
Yamaha Motors
Plain Washer90201-08043-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$4.25
You save $4.25
32
Yamaha Motors
SPACER2AC-F8467-00
Required: 2
SPACER
Price unavailable
33
Yamaha Motors
STAY, FRONT GUARD 22AC-F8414-00
Required: 1
STAY, FRONT GUARD 2
Price unavailable
-50%
34
Yamaha Motors
Socket Bolt91314-08035-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
In stock
Only 1 remaining
$1.35
You save $1.35
-50%
35
Yamaha Motors
Plain Washer90201-08043-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$4.25
You save $4.25
36
Yamaha Motors
SPACER2AC-F8467-00
Required: 2
SPACER
Price unavailable
37
Yamaha Motors
EMBLEM2AC-F4786-00
Required: 1
EMBLEM
Price unavailable
38
Yamaha Motors
MANUAL,OWNER'S2AC-F8199-F0
Required: 1
MANUAL,OWNER'S
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
