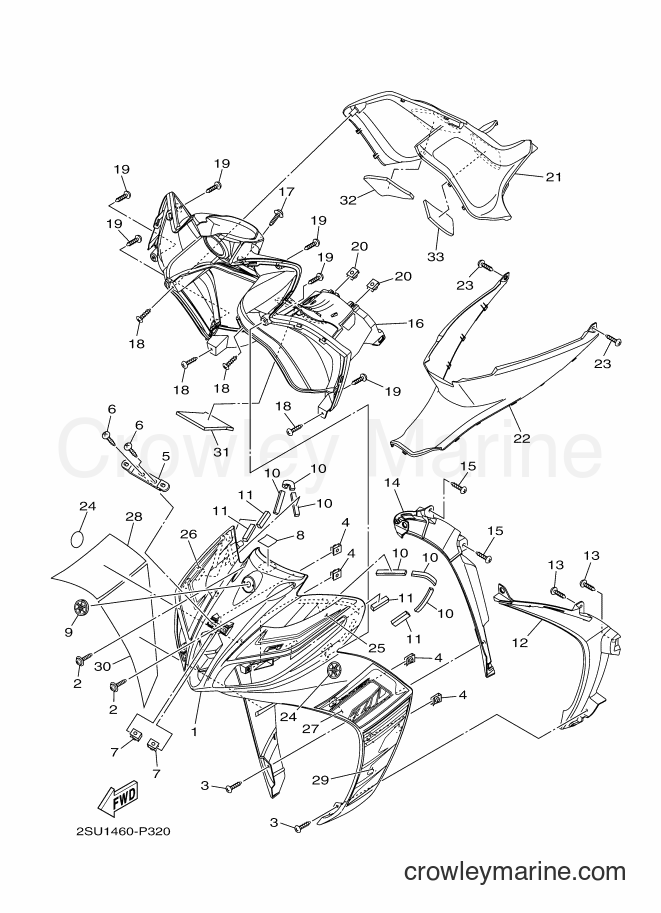

2015 Scooter T115FSE - T115FSE (2SU1) [010] LEG SHIELD diagram
![Yamaha Motors T115FSE (2SU1) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/ZxI9dt8w.png)
1
Yamaha Motors
LEG SHIELD 11DY-F8311-00-P5
Required: 1
LEG SHIELD 1
Price unavailable
-15%
2
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
$8.92
You save $1.57
-15%
3
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
4
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
5
Yamaha Motors
BRACKET, NUMBER PLATE5TP-H454E-01
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
-15%
6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39
-50%
7
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
8
Yamaha Motors
SEAL5D9-F414G-10
Required: 1
SEAL
Price unavailable
9
Yamaha Motors
EMBLEM, 131B-F313B-00
Required: 1
EMBLEM, 1
Price unavailable
10
Yamaha Motors
DAMPER4ST-F139X-00
Required: 6
DAMPER
Price unavailable
11
Yamaha Motors
DAMPER, PLATE90520-06807
Required: 4
DAMPER, PLATE
Price unavailable
12
Yamaha Motors
PANEL, INNER 11DY-F836K-40
Required: 1
PANEL, INNER 1
Price unavailable
12
Yamaha Motors
PANEL, INNER 11DY-F836K-00
Required: 1
PANEL, INNER 1
Price unavailable
-15%
13
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39
14
Yamaha Motors
PANEL, INNER 21DY-F836L-00
Required: 1
PANEL, INNER 2
Price unavailable
-15%
15
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39
16
Yamaha Motors
LEG SHIELD 21DY-F8312-00
Required: 1
LEG SHIELD 2
Price unavailable
-15%
17
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
$8.92
You save $1.57
-15%
18
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
$2.21
You save $0.39
-15%
19
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 6
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
20
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
21
Yamaha Motors
CAP2SU-F8349-00
Required: 1
CAP
Price unavailable
22
Yamaha Motors
COVER 21DY-F842N-00
Required: 1
COVER 2
Price unavailable
-15%
23
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39
24
Yamaha Motors
TUNING FORK MARK1DY-F836D-00
Required: 2
TUNING FORK MARK
Price unavailable
25
Yamaha Motors
GRAPHIC, 132SU-F832L-00
Required: 1
GRAPHIC, 13
Price unavailable
26
Yamaha Motors
GRAPHIC, 142SU-F831Y-00
Required: 1
GRAPHIC, 14
Price unavailable
27
Yamaha Motors
GRAPHIC, 152SU-F832B-00
Required: 1
GRAPHIC, 15
Price unavailable
28
Yamaha Motors
GRAPHIC, 162SU-F832C-00
Required: 1
GRAPHIC, 16
Price unavailable
29
Yamaha Motors
GRAPHIC 172SU-F832D-00
Required: 1
GRAPHIC 17
Price unavailable
30
Yamaha Motors
GRAPHIC, 182SU-F832P-00
Required: 1
GRAPHIC, 18
Price unavailable
31
Yamaha Motors
DAMPER1DY-F8371-00
Required: 1
DAMPER
Price unavailable
32
Yamaha Motors
DAMPER, LOCATING 12SU-F836T-00
Required: 1
DAMPER, LOCATING 1
Price unavailable
33
Yamaha Motors
DAMPER, LOCATING 21DY-F836U-00
Required: 1
DAMPER, LOCATING 2
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
