2015 Scooter T115FLSEC - T115FLSEC (1FP7) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

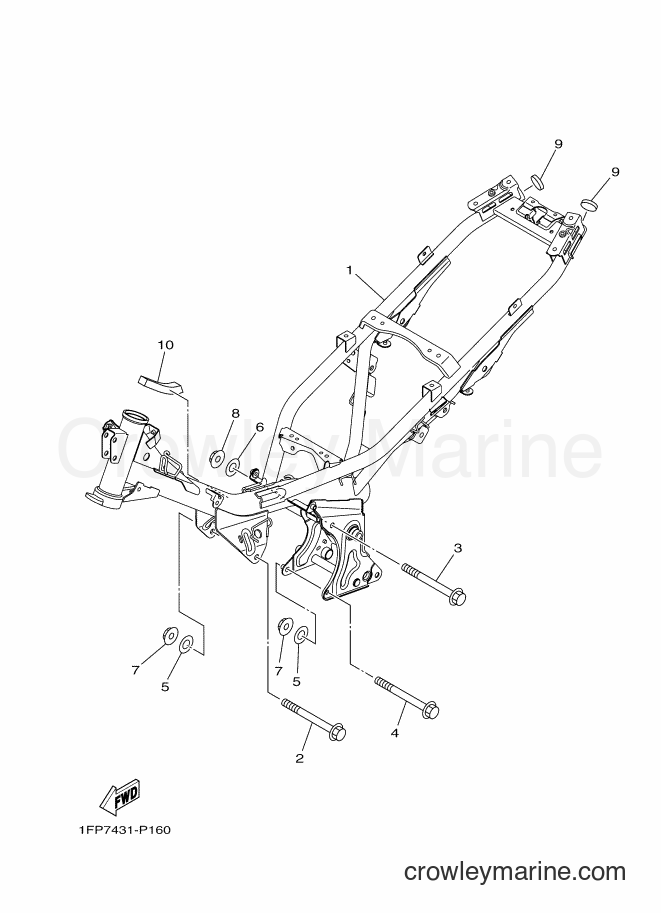

Yamaha Motors T115FLSEC (1FP7) [010] - FRAME

Change View:

Yamaha Motors

FRAME COMP.1FP-F1110-10

Required: 1

FRAME COMP.

Price unavailable

Yamaha Motors

BOLT, FLANGE90105-088E0

Required: 1

BOLT, FLANGE

Price unavailable

Yamaha Motors

BOLT, FLANGE95812-10120

Required: 1

BOLT, FLANGE

Price unavailable

Yamaha Motors

BOLT, FLANGE90105-088D9

Required: 1

BOLT, FLANGE

Price unavailable

-50%

Yamaha Motors

Plain Washer90201-08043-00

Required: 2

WASHER, PLATE

In stock

5+ in stock

~~$8.49~~

$4.25

You save $4.25

More details

-15%

Yamaha Motors

Plain Washer90201-101J1-00

Required: 1

WASHER, PLATE

~~$9.49~~

$8.07

You save $1.42

More details

-15%

Yamaha Motors

Nute (4KM)90179-08674-00

Required: 2

NUT

~~$8.49~~

$7.22

You save $1.27

More details

-15%

Yamaha Motors

Nut (1S72,5C81)90179-10805-00

Required: 1

NUT

~~$2.75~~

$2.34

You save $0.41

More details

Yamaha Motors

COVER 21FC-F139R-00

Required: 2

COVER 2

Price unavailable

Yamaha Motors

DAMPER, PLATE90520-30803

Required: 1

DAMPER, PLATE

Price unavailable
