2015 Scooter T115FLSEC - T115FLSEC (1FC6) [010] LEG SHIELD 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

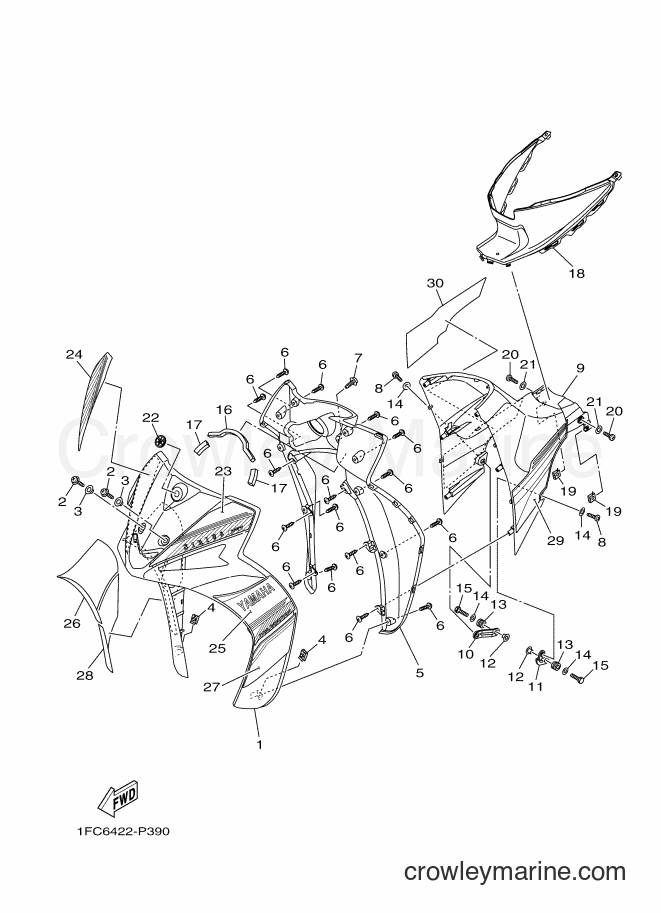

Yamaha Motors T115FLSEC (1FC6) [010] - LEG SHIELD 2
Change View:
LEG SHIELD 1
1
Yamaha Motors
LEG SHIELD 11FC-F8311-10-P2
Required: 1
LEG SHIELD 1
Price unavailable
SCREW, WITH WASHER
2
Yamaha Motors
SCREW, WITH WASHER90159-06810
Required: 2
SCREW, WITH WASHER
Price unavailable
COLLAR
3
Yamaha Motors
COLLAR90387-09803
Required: 2
COLLAR
Price unavailable
LEG SHIELD 2
5
Yamaha Motors
LEG SHIELD 21FC-F8312-10
Required: 1
LEG SHIELD 2
Price unavailable
-15%
Tapping Screw
6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 16
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
SCREW, WITH WASHER
7
Yamaha Motors
SCREW, WITH WASHER90159-06810
Required: 1
SCREW, WITH WASHER
Price unavailable
-15%
Bind Screw
8
Yamaha Motors
Bind Screw98980-06020-00
Required: 2
SCREW, BIND
Supersedes: 98902-06020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
COVER 1 (0919, DBNM8)
9
Yamaha Motors
COVER 1 (0919, DBNM8)1FC-F842M-10-P2
Required: 1
COVER 1 (0919, DBNM8)
Price unavailable
STAY 1
10
Yamaha Motors
STAY 11FC-F8321-20
Required: 1
STAY 1
Price unavailable
STAY 2
11
Yamaha Motors
STAY 21FC-F8322-20
Required: 1
STAY 2
Price unavailable
COLLAR
12
Yamaha Motors
COLLAR90387-06814
Required: 2
COLLAR
Price unavailable
GROMMET
13
Yamaha Motors
GROMMET90480-13815
Required: 2
GROMMET
Price unavailable
-15%
Plain Washer
14
Yamaha Motors
Plain Washer90201-06078-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
DAMPER, PLATE
16
Yamaha Motors
DAMPER, PLATE90520-15807
Required: 1
DAMPER, PLATE
Price unavailable
DAMPER, PLATE
17
Yamaha Motors
DAMPER, PLATE90520-15013
Required: 2
DAMPER, PLATE
Price unavailable
COVER 2 (0033,YB)
18
Yamaha Motors
COVER 2 (0033,YB)1FC-F842N-10
Required: 1
COVER 2 (0033,YB)
Price unavailable
-15%
Binding Screw
20
Yamaha Motors
Binding Screw98907-06020-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Plate Washer
21
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
TUNING FORK MARK
22
Yamaha Motors
TUNING FORK MARK16S-F175C-00
Required: 1
TUNING FORK MARK
Price unavailable
GRAPHIC, 9
23
Yamaha Motors
GRAPHIC, 91FC-F83GC-00
Required: 1
GRAPHIC, 9
Price unavailable
GRAPHIC, 10
24
Yamaha Motors
GRAPHIC, 101FC-F83GD-00
Required: 1
GRAPHIC, 10
Price unavailable
GRAPHIC, 11
25
Yamaha Motors
GRAPHIC, 111FC-F83GE-00
Required: 1
GRAPHIC, 11
Price unavailable
GRAPHIC, 12
26
Yamaha Motors
GRAPHIC, 121FC-F83GF-00
Required: 1
GRAPHIC, 12
Price unavailable
GRAPHIC, 13
27
Yamaha Motors
GRAPHIC, 131FC-F83GG-00
Required: 1
GRAPHIC, 13
Price unavailable
GRAPHIC, 14
28
Yamaha Motors
GRAPHIC, 141FC-F83GH-00
Required: 1
GRAPHIC, 14
Price unavailable
GRAPHIC, 7
29
Yamaha Motors
GRAPHIC, 71FC-F83GA-00
Required: 1
GRAPHIC, 7
Price unavailable
GRAPHIC, 8
30
Yamaha Motors
GRAPHIC, 81FC-F83GB-00
Required: 1
GRAPHIC, 8
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
