All diagrams for this model

2015 Scooter LNS125 - LNS125 (2PH2) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

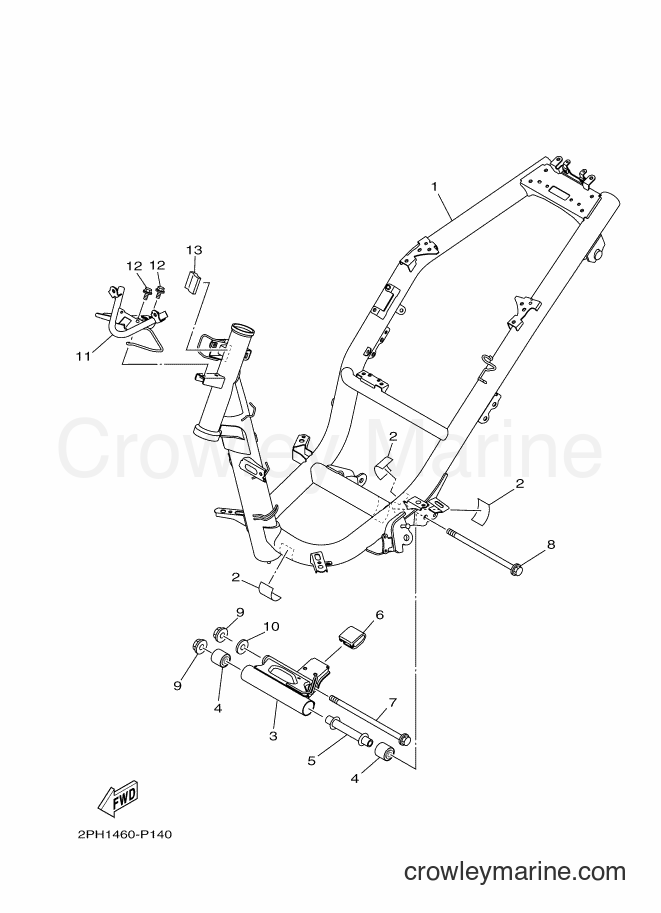

Yamaha Motors LNS125 (2PH2) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.2PH-F1110-00
Required: 1
FRAME COMP.
Price unavailable
-15%
Shift Bracket Seal
2
Yamaha Motors
Shift Bracket Seal5D9-F414G-00-00
Required: 3
SEAL
Cross Ship
Leaves in 2-5 days
$1.70
$1.44
You save $0.26
More details
ENGINE BRACKET COMP.
3
Yamaha Motors
ENGINE BRACKET COMP.2PH-F1410-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
DAMPER
4
Yamaha Motors
DAMPER90388-10800
Required: 2
DAMPER
Price unavailable
SPACER
5
Yamaha Motors
SPACER54P-F1459-00
Required: 1
SPACER
Price unavailable
STOPPER, MAIN STAND
6
Yamaha Motors
STOPPER, MAIN STAND2PH-F7114-00
Required: 1
STOPPER, MAIN STAND
Price unavailable
SHAFT, PIVOT
7
Yamaha Motors
SHAFT, PIVOT2PH-F2141-00
Required: 1
SHAFT, PIVOT
Price unavailable
SHAFT, PIVOT
8
Yamaha Motors
SHAFT, PIVOT54P-F2141-00
Required: 1
SHAFT, PIVOT
Price unavailable
-15%
Self Locking Nut
9
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 2
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
WASHER, PLATE
10
Yamaha Motors
WASHER, PLATE90201-10831
Required: 1
WASHER, PLATE
Price unavailable
STAY 1
11
Yamaha Motors
STAY 12PH-F8356-00
Required: 1
STAY 1
Price unavailable
-15%
95817-06010-00
12
Yamaha Motors
95817-06010-0095812-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
DAMPER, PLATE
13
Yamaha Motors
DAMPER, PLATE90520-08809
Required: 1
DAMPER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
