2015 Scooter AT125FC - AT125FC (2XC3) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

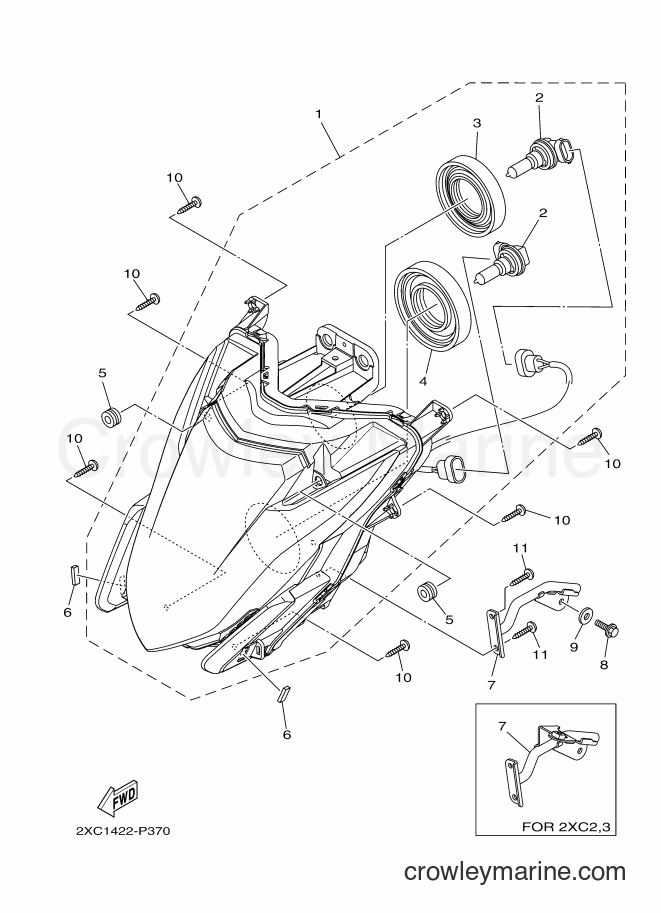

Yamaha Motors AT125FC (2XC3) [010] - HEADLIGHT
Change View:
HEADLIGHT ASSY
1
Yamaha Motors
HEADLIGHT ASSY2XC-H4300-00
Required: 1
HEADLIGHT ASSY
Price unavailable
. BULB, HEADLIGHT (12V-55W)
2
Yamaha Motors
. BULB, HEADLIGHT (12V-55W)1DB-H4314-10
Required: 2
. BULB, HEADLIGHT (12V-55W)
Price unavailable
. COVER, SOCKET
3
Yamaha Motors
. COVER, SOCKET1DB-H3547-00
Required: 1
. COVER, SOCKET
Price unavailable
. COVER, SOCKET
4
Yamaha Motors
. COVER, SOCKET1DB-H4397-00
Required: 1
. COVER, SOCKET
Price unavailable
GROMMET
5
Yamaha Motors
GROMMET90480-10804
Required: 2
GROMMET
Price unavailable
DAMPER
6
Yamaha Motors
DAMPER1DB-H4527-00
Required: 2
DAMPER
Price unavailable
STAY 2
7
Yamaha Motors
STAY 22XC-F8357-00
Required: 1
STAY 2
Price unavailable
STAY 2
7
Yamaha Motors
STAY 22XC-F8357-10
Required: 1
STAY 2
Price unavailable
-15%
Flange Bolt
8
Yamaha Motors
Flange Bolt95812-06012-00
Required: 1
BOLT, FLANGE
1 aftermarket alternative
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
WASHER, PLATE
9
Yamaha Motors
WASHER, PLATE90201-06864
Required: 1
WASHER, PLATE
Price unavailable
-15%
Tapping Screw
10
Yamaha Motors
Tapping Screw97702-50016-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
-15%
Tapping Screw
11
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
