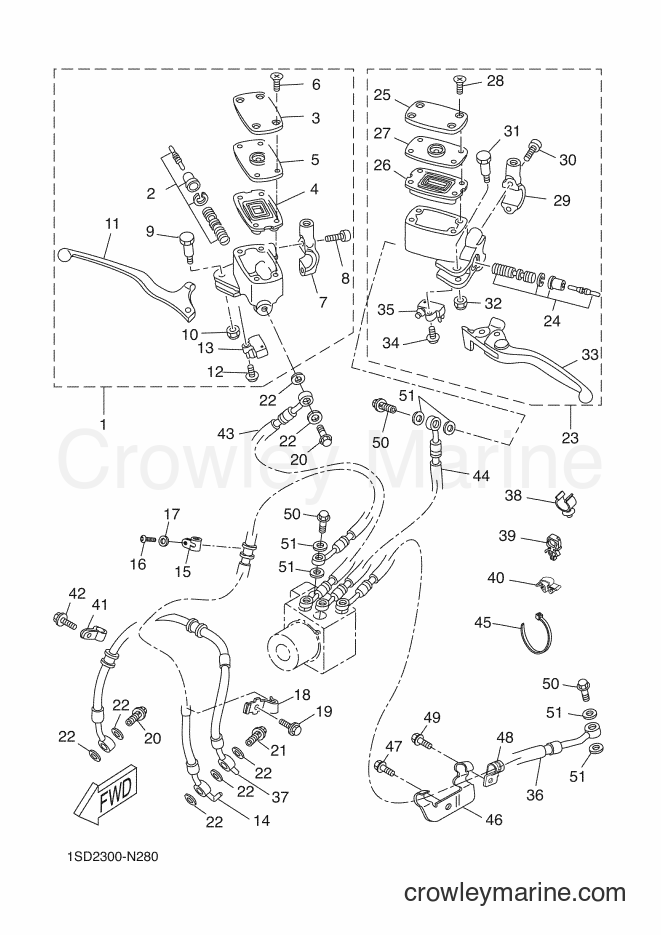

2014 Scooter YP400RA - YP400RA (1SD2) [060] FRONT MASTER CYLINDER diagram
![Yamaha Motors YP400RA (1SD2) [060] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/Hc7f7hbk.png)
1
Yamaha Motors
MASTER CYLINDER ASSY1SD-F583T-00
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Yamaha Motors
. CYLINDER KIT, MASTER1SD-F5807-00
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
3
Yamaha Motors
. CAP, RESERVOIR1SD-F5852-00
Required: 1
. CAP, RESERVOIR
Price unavailable
4
Yamaha Motors
. DIAPHRAGM, RESERVOIR1SD-F5854-00
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
5
Yamaha Motors
. BUSH,DIAPHRAGM1SD-F5855-00
Required: 1
. BUSH,DIAPHRAGM
Price unavailable
-15%
6
Yamaha Motors
Flat Screw98707-04012-00
Required: 4
. SCREW, FLAT HEAD
$1.57
You save $0.28
7
Yamaha Motors
. BRACKET, MASTER CYLINDER1SD-F5867-00
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
-15%
8
Yamaha Motors
Button Bolt92017-06030-00
Required: 2
. BOLT, BUTTON HEAD
$8.07
You save $1.42
9
Yamaha Motors
. BOLT, LEVER1B9-H3945-00
Required: 1
. BOLT, LEVER
Price unavailable
-15%
10
Yamaha Motors
95604-06200-0095607-06200-00
Required: 1
. NUT, SELF U-FLANGE
$11.47
You save $2.02
11
Yamaha Motors
. LEVER 11SD-H3912-00
Required: 1
. LEVER 1
Price unavailable
-15%
12
Yamaha Motors
Pan Head With Washer Screw97607-04216-00
Required: 1
. SCREW, WITH WASHER
$3.10
You save $0.55
13
Yamaha Motors
. FRONT STOP SWITCH ASSY37P-H3980-00
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
14
Yamaha Motors
HOSE, BRAKE 11SD-F5872-10
Required: 1
HOSE, BRAKE 1
Price unavailable
-15%
15
Yamaha Motors
BRAKE HOSE HOLDER3D7-25876-00-00
Required: 1
HOLDER, BRAKE HOSE 2
$4.04
You save $0.71
-50%
16
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 1
SCREW, PAN HEAD
In stock
Only 4 remaining
$0.90
You save $0.90
17
Yamaha Motors
Plate Washer92907-05600-00
Required: 1
WASHER, PLATE
$1.98
18
Yamaha Motors
HOLDER, BRAKE HOSE 51SD-F588F-10
Required: 1
HOLDER, BRAKE HOSE 5
Price unavailable
-15%
19
Yamaha Motors
Flange Bolt95814-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 95824-06016-00
$1.69
You save $0.30
20
Yamaha Motors
BOLT, OIL 12RN-F5877-00
Required: 2
BOLT, OIL 1
Price unavailable
21
Yamaha Motors
BOLT, UNION90401-10X06
Required: 1
BOLT, UNION
Price unavailable
-15%
22
Yamaha Motors
Plate Washer90201-10118-00
Required: 7
WASHER, PLATE
In stock
Only 5 remaining
$3.23
You save $0.57
23
Yamaha Motors
RR. MASTER CYLINDER ASSY.1SD-F583V-00
Required: 1
RR. MASTER CYLINDER ASSY.
Price unavailable
24
Yamaha Motors
. CYLINDER KIT, MASTER1SD-F5808-00
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
25
Yamaha Motors
. CAP, RESERVOIR1SD-F5852-00
Required: 1
. CAP, RESERVOIR
Price unavailable
26
Yamaha Motors
. DIAPHRAGM, RESERVOIR1SD-F5854-00
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
27
Yamaha Motors
. BUSH,DIAPHRAGM1SD-F5855-00
Required: 1
. BUSH,DIAPHRAGM
Price unavailable
-15%
28
Yamaha Motors
Flat Screw98707-04012-00
Required: 4
. SCREW, FLAT HEAD
$1.57
You save $0.28
29
Yamaha Motors
. BRACKET, MASTER CYLINDER1SD-F5867-10
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
-15%
30
Yamaha Motors
Button Bolt92017-06030-00
Required: 2
. BOLT, BUTTON HEAD
$8.07
You save $1.42
31
Yamaha Motors
. BOLT, LEVER1B9-H3945-00
Required: 1
. BOLT, LEVER
Price unavailable
-15%
32
Yamaha Motors
95604-06200-0095607-06200-00
Required: 1
. NUT, SELF U-FLANGE
$11.47
You save $2.02
33
Yamaha Motors
. LEVER 21SD-H3922-00
Required: 1
. LEVER 2
Price unavailable
-15%
34
Yamaha Motors
Pan Head With Washer Screw97607-04216-00
Required: 1
. SCREW, WITH WASHER
$3.10
You save $0.55
35
Yamaha Motors
. SWITCH37P-H2917-00
Required: 1
. SWITCH
Price unavailable
36
Yamaha Motors
HOSE, BRAKE 21SD-F5873-10
Required: 1
HOSE, BRAKE 2
Price unavailable
37
Yamaha Motors
HOSE, BRAKE1SD-F5874-10
Required: 1
HOSE, BRAKE
Price unavailable
38
Yamaha Motors
CLAMP90464-18X00
Required: 2
CLAMP
Price unavailable
-15%
$3.23
You save $0.57
40
Yamaha Motors
HOLDER, BRAKE HOSE1B9-F5886-00
Required: 2
HOLDER, BRAKE HOSE
Price unavailable
41
Yamaha Motors
HOLDER, BRAKE HOSE1SD-F5886-00
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
-15%
42
Yamaha Motors
Flange Bolt95814-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 95824-06016-00
$1.69
You save $0.30
43
Yamaha Motors
HOSE, BRAKE 41SD-F581J-00
Required: 1
HOSE, BRAKE 4
Price unavailable
44
Yamaha Motors
HOSE, BRAKE 51SD-F581K-00
Required: 1
HOSE, BRAKE 5
Price unavailable
45
Yamaha Motors
CLAMP90464-80X00
Required: 1
CLAMP
Price unavailable
46
Yamaha Motors
HOLDER, BRAKE HOSE1SD-F587A-00
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
-15%
47
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06012-00
No longer availableSearch Nationwide Inventory
$0.64
You save $0.11
48
Yamaha Motors
HOLDER, BRAKE HOSE1SD-F5887-00
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
-15%
49
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06012-00
No longer availableSearch Nationwide Inventory
$0.64
You save $0.11
50
Yamaha Motors
BOLT, OIL 12RN-F5877-00
Required: 6
BOLT, OIL 1
Price unavailable
-15%
In stock
Only 5 remaining
$3.23
You save $0.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
