All diagrams for this model

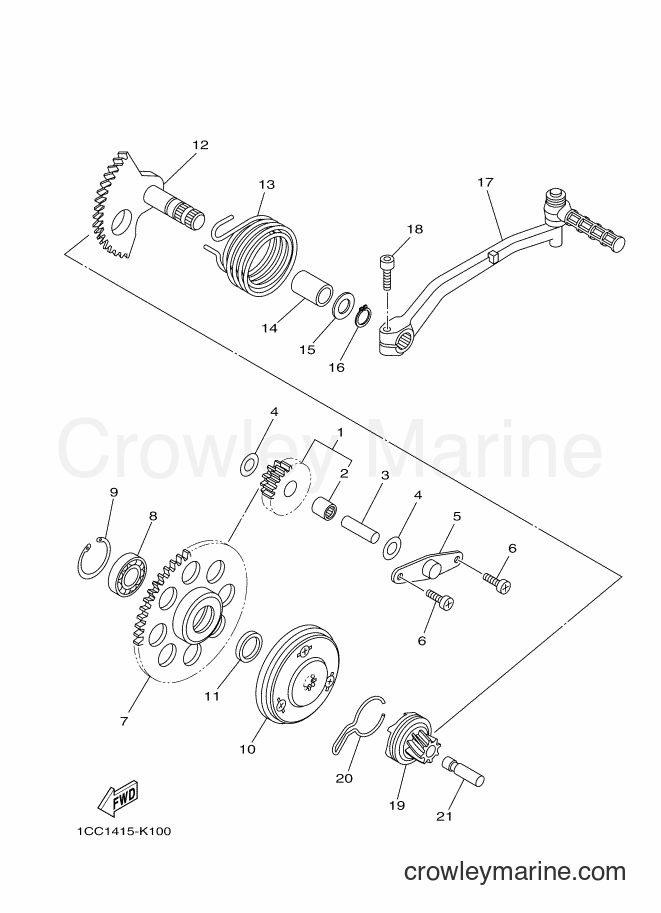

2014 Scooter XC100E - XC100E (1RS2) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS2) [010] - STARTER
Change View:
IDLE GEAR ASSY
1
Yamaha Motors
IDLE GEAR ASSY1CC-E5650-00
Required: 1
IDLE GEAR ASSY
Price unavailable
. BEARING
2
Yamaha Motors
. BEARING93317-110Y4
Required: 1
. BEARING
Price unavailable
SHAFT 1
3
Yamaha Motors
SHAFT 15WG-E5521-00
Required: 1
SHAFT 1
Price unavailable
-15%
Plain Washer
4
Yamaha Motors
Plain Washer90201-108A3-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.65
$1.40
You save $0.25
More details
PLATE, IDLE GEAR
5
Yamaha Motors
PLATE, IDLE GEAR5MH-E5532-00
Required: 1
PLATE, IDLE GEAR
Price unavailable
-12%
Screw
6
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
WHEEL, STARTER
7
Yamaha Motors
WHEEL, STARTER1CC-E5524-00
Required: 1
WHEEL, STARTER
Price unavailable
BEARING
8
Yamaha Motors
BEARING93306-003X8
Required: 1
BEARING
Price unavailable
-15%
Circle Clip
9
Yamaha Motors
Circle Clip99009-35700-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
STARTER CLUTCH ASSY
10
Yamaha Motors
STARTER CLUTCH ASSY1CC-E5570-00
Required: 1
STARTER CLUTCH ASSY
Price unavailable
COLLAR
11
Yamaha Motors
COLLAR90387-16806
Required: 1
COLLAR
Price unavailable
KICK SHAFT ASSY
12
Yamaha Motors
KICK SHAFT ASSY1CC-E5601-00
Required: 1
KICK SHAFT ASSY
Price unavailable
SPRING, TORSION
13
Yamaha Motors
SPRING, TORSION90508-32804
Required: 1
SPRING, TORSION
Price unavailable
BUSH, SOLID
14
Yamaha Motors
BUSH, SOLID90380-15806
Required: 1
BUSH, SOLID
Price unavailable
WASHER, PLATE
15
Yamaha Motors
WASHER, PLATE90201-15838
Required: 1
WASHER, PLATE
Price unavailable
-15%
Circle Clip
16
Yamaha Motors
Circle Clip99009-15400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
KICK CRANK ASSY
17
Yamaha Motors
KICK CRANK ASSY1CC-E5620-00
Required: 1
KICK CRANK ASSY
Price unavailable
KICK PINION ASSY
19
Yamaha Motors
KICK PINION ASSY1CC-E5630-00
Required: 1
KICK PINION ASSY
Price unavailable
CLIP
20
Yamaha Motors
CLIP1CC-E5673-00
Required: 1
CLIP
Price unavailable
SHAFT
21
Yamaha Motors
SHAFT1CC-E5659-00
Required: 1
SHAFT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
