2014 Scooter XC100E - XC100E (1RS2) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

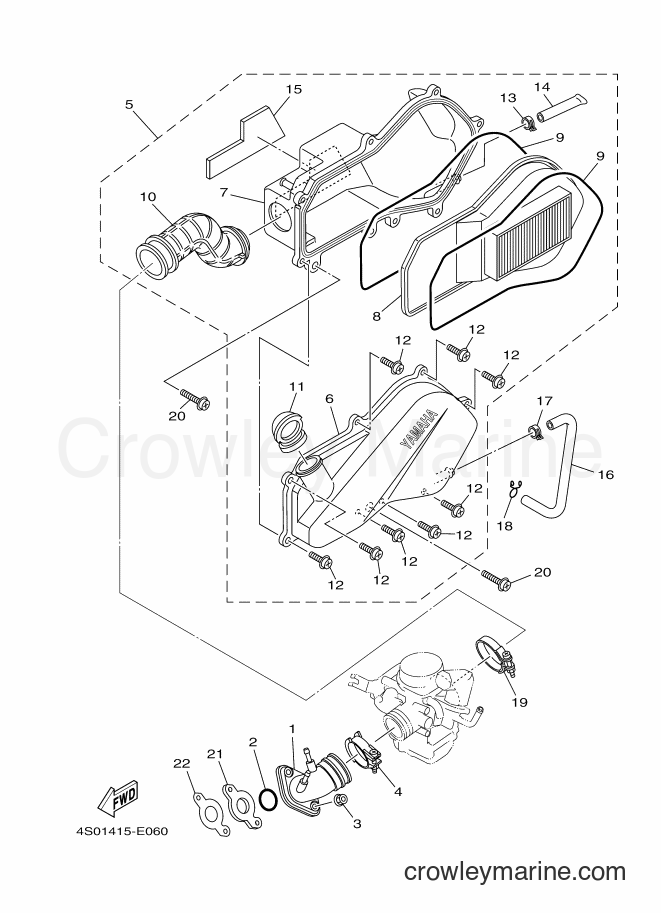

Yamaha Motors XC100E (1RS2) [010] - INTAKE
Change View:
MANIFOLD
1
Yamaha Motors
MANIFOLD1CC-E3585-00
Required: 1
MANIFOLD
Price unavailable
O-RING
2
Yamaha Motors
O-RING93210-25806
Required: 1
O-RING
Price unavailable
BAND
4
Yamaha Motors
BAND1CC-E3575-00
Required: 1
BAND
Price unavailable
AIR CLEANER ASSY.
5
Yamaha Motors
AIR CLEANER ASSY.4S0-E4410-03
Required: 1
AIR CLEANER ASSY.
Price unavailable
. CAP, CLEANER CASE 1
6
Yamaha Motors
. CAP, CLEANER CASE 14S0-E4412-01
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
. CASE, AIR CLEANER 1
7
Yamaha Motors
. CASE, AIR CLEANER 14S0-E4411-02
Required: 1
. CASE, AIR CLEANER 1
Price unavailable
. ELEMENT, AIR CLEANER
8
Yamaha Motors
. ELEMENT, AIR CLEANER4S0-E4451-01
Required: 1
. ELEMENT, AIR CLEANER
Price unavailable
. SEAL
9
Yamaha Motors
. SEAL5WG-E4476-00
Required: 2
. SEAL
Price unavailable
. JOINT, AIR CLEANER 1
10
Yamaha Motors
. JOINT, AIR CLEANER 14S0-E4453-00
Required: 1
. JOINT, AIR CLEANER 1
Price unavailable
. DUCT
11
Yamaha Motors
. DUCT4S0-E4437-00
Required: 1
. DUCT
Price unavailable
. SCREW, PAN HEAD W/WASHER
12
Yamaha Motors
. SCREW, PAN HEAD W/WASHER97602-06220
Required: 8
. SCREW, PAN HEAD W/WASHER
Price unavailable
. CLIP
13
Yamaha Motors
. CLIP90467-13817
Required: 1
. CLIP
Price unavailable
. PIPE, DRAIN
14
Yamaha Motors
. PIPE, DRAIN5WY-E443E-01
Required: 1
. PIPE, DRAIN
Price unavailable
. DAMPER
15
Yamaha Motors
. DAMPER4S0-E4409-00
Required: 1
. DAMPER
Price unavailable
PIPE, DRAIN 2
16
Yamaha Motors
PIPE, DRAIN 24S0-E443G-00
Required: 1
PIPE, DRAIN 2
Price unavailable
CLIP
17
Yamaha Motors
CLIP90467-13815
Required: 1
CLIP
Price unavailable
CLIP
18
Yamaha Motors
CLIP90467-12802
Required: 1
CLIP
Price unavailable
HOSE CLAMP ASSY
19
Yamaha Motors
HOSE CLAMP ASSY90450-45801
Required: 1
HOSE CLAMP ASSY
Price unavailable
SCREW, PAN HEAD WITH WASHER
20
Yamaha Motors
SCREW, PAN HEAD WITH WASHER97602-06225
Required: 2
SCREW, PAN HEAD WITH WASHER
Price unavailable
JOINT
21
Yamaha Motors
JOINT1CC-E3595-00
Required: 1
JOINT
Price unavailable
GASKET, MANIFOLD
22
Yamaha Motors
GASKET, MANIFOLD1CC-E3556-00
Required: 1
GASKET, MANIFOLD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
