All diagrams for this model

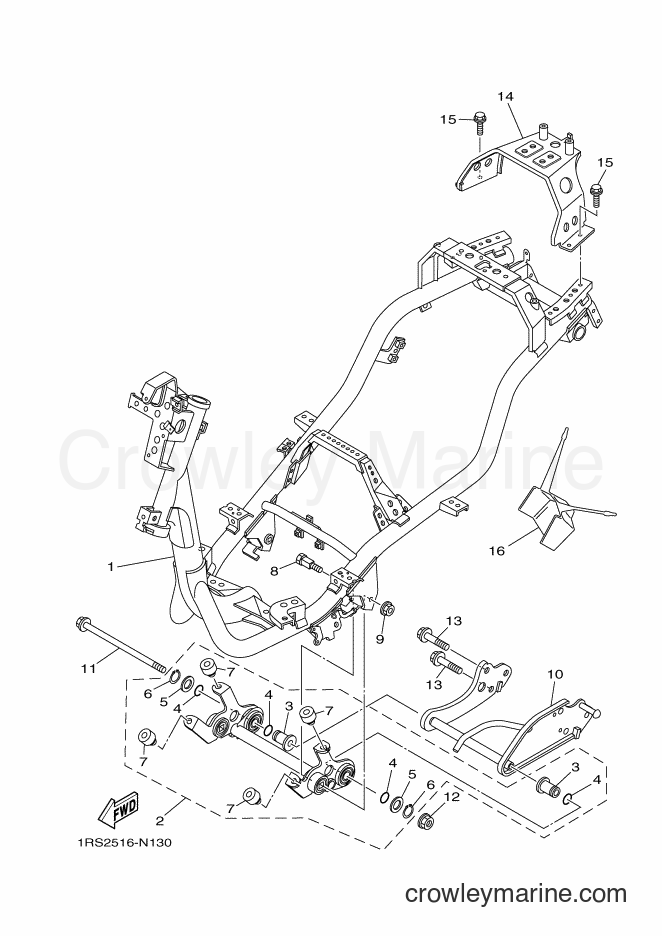

2014 Scooter XC100E - XC100E (1RS2) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC100E (1RS2) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.1RS-F1110-00
Required: 1
FRAME COMP.
Price unavailable
ENGINE BRACKET COMP.2
2
Yamaha Motors
ENGINE BRACKET COMP.21RS-X2142-00
Required: 1
ENGINE BRACKET COMP.2
Price unavailable
. SPACER, ENGINE MOUNT
3
Yamaha Motors
. SPACER, ENGINE MOUNT5WG-E5317-01
Required: 2
. SPACER, ENGINE MOUNT
Price unavailable
-15%
O-Ring
4
Yamaha Motors
O-Ring93210-15639-00
Required: 4
. O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
. WASHER, PLATE
5
Yamaha Motors
. WASHER, PLATE90201-17804
Required: 2
. WASHER, PLATE
Price unavailable
-15%
Circle Clip
6
Yamaha Motors
Circle Clip99009-17400-00
Required: 2
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
. STOPPER
7
Yamaha Motors
. STOPPER5WG-F118W-00
Required: 4
. STOPPER
Price unavailable
BOLT, ENGINE MOUNTING 1
8
Yamaha Motors
BOLT, ENGINE MOUNTING 15WG-F1481-01
Required: 2
BOLT, ENGINE MOUNTING 1
Price unavailable
-15%
Self Locking Nut
9
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 2
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
ENGINE BRACKET COMP.
10
Yamaha Motors
ENGINE BRACKET COMP.1RS-F1410-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
BOLT, ENGINE MOUNTING 2
11
Yamaha Motors
BOLT, ENGINE MOUNTING 25WG-F1482-01
Required: 1
BOLT, ENGINE MOUNTING 2
Price unavailable
-15%
Self Locking Nut
12
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
-15%
Flange Bolt
13
Yamaha Motors
Flange Bolt95817-10030-00
Required: 2
BOLT, FLANGE
Supersedes: 95812-10030-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
STAY, REAR
14
Yamaha Motors
STAY, REAR5WG-F116F-03
Required: 1
STAY, REAR
Price unavailable
FLAP, FRONT FENDER
16
Yamaha Motors
FLAP, FRONT FENDER5WG-F1521-00
Required: 1
FLAP, FRONT FENDER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
