2014 Scooter XC100E - XC100E (1RS2) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

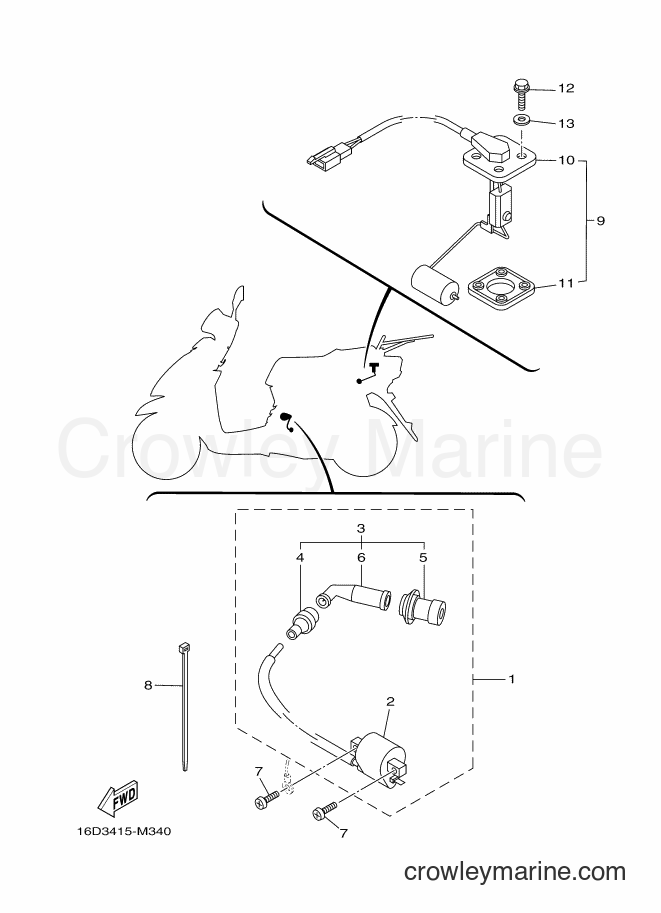

Yamaha Motors XC100E (1RS2) [010] - ELECTRICAL 2
Change View:
IGN. COIL ASSY.
1
Yamaha Motors
IGN. COIL ASSY.4S0-X8231-30
Required: 1
IGN. COIL ASSY.
Price unavailable
. IGNITION COIL ASSY
2
Yamaha Motors
. IGNITION COIL ASSY4S0-H2310-10
Required: 1
. IGNITION COIL ASSY
Price unavailable
. PLUG CAP ASSY
3
Yamaha Motors
. PLUG CAP ASSY4S0-H2370-00
Required: 1
. PLUG CAP ASSY
Price unavailable
. . CAP, PLUG
4
Yamaha Motors
. . CAP, PLUG4FP-H2371-00
Required: 1
. . CAP, PLUG
Price unavailable
. . SEAL, PLUG CAP
5
Yamaha Motors
. . SEAL, PLUG CAP4KL-H2372-00
Required: 1
. . SEAL, PLUG CAP
Price unavailable
. . SEAL, HIGH TENSION CORD
6
Yamaha Motors
. . SEAL, HIGH TENSION CORD4S0-H2373-00
Required: 1
. . SEAL, HIGH TENSION CORD
Price unavailable
SCREW, PAN HEAD
7
Yamaha Motors
SCREW, PAN HEAD98502-06018
Required: 2
SCREW, PAN HEAD
Price unavailable
-15%
Band
8
Yamaha Motors
Band1UA-82591-00-00
Required: 1
CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
SENDER UNIT ASSY
9
Yamaha Motors
SENDER UNIT ASSY5WG-X8575-10
Required: 1
SENDER UNIT ASSY
Price unavailable
. SENDER UNIT ASSY, FUEL METER
10
Yamaha Motors
. SENDER UNIT ASSY, FUEL METER5WG-H5752-01
Required: 1
. SENDER UNIT ASSY, FUEL METER
Price unavailable
. GASKET, SENDER UNIT
11
Yamaha Motors
. GASKET, SENDER UNIT4KL-H5753-00
Required: 1
. GASKET, SENDER UNIT
Price unavailable
-15%
Flange Bolt
12
Yamaha Motors
Flange Bolt90105-05804-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.45
$0.38
You save $0.07
More details
-15%
Plate Washer
13
Yamaha Motors
Plate Washer90201-05725-00
Required: 4
WASHER, PLATE
Supersedes: 90201-053E0-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
