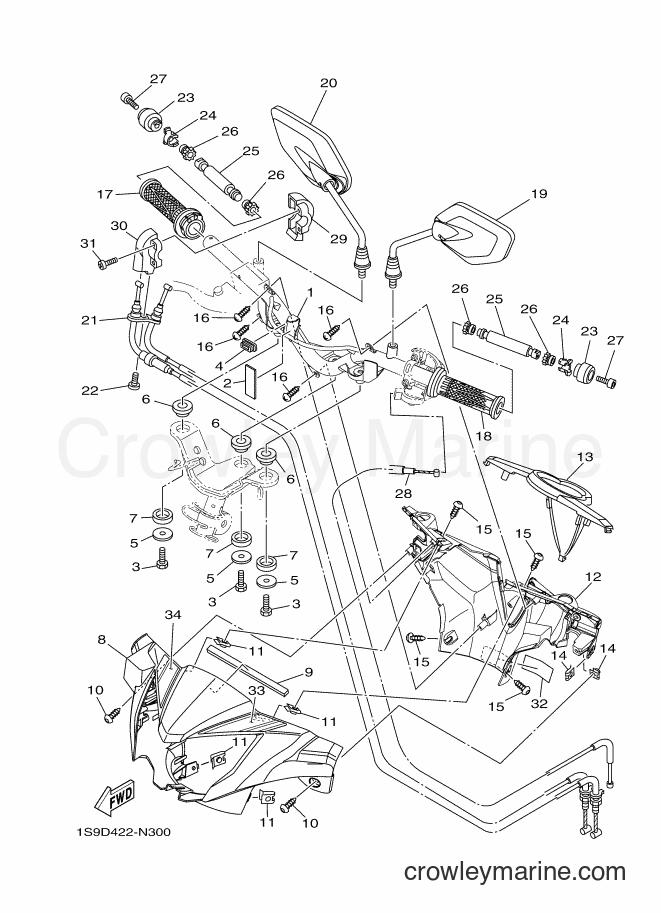

2014 Scooter T135SEC - T135SEC (1S9D) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors T135SEC (1S9D) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/f6HPAnds.png)
1
Yamaha Motors
HANDLE1S9-F6210-10
Required: 1
HANDLE
Price unavailable
2
Yamaha Motors
DAMPER, PLATE90520-02813
Required: 1
DAMPER, PLATE
Price unavailable
-15%
3
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
$8.07
You save $1.42
4
Yamaha Motors
GROMMET55P-F6326-00
Required: 1
GROMMET
Price unavailable
-15%
5
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
$8.07
You save $1.42
6
Yamaha Motors
DAMPER 11S9-F8217-00
Required: 3
DAMPER 1
Price unavailable
7
Yamaha Motors
DAMPER 21S9-F8227-00
Required: 3
DAMPER 2
Price unavailable
8
Yamaha Motors
COVER, HANDLE UPPER 11S9-F6143-40-P0
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
9
Yamaha Motors
DAMPER, PLATE90520-04805
Required: 1
DAMPER, PLATE
Price unavailable
10
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 2
SCREW, ROUND TAPPING
Price unavailable
11
Yamaha Motors
NUT, SPRING90183-05811
Required: 4
NUT, SPRING
Price unavailable
12
Yamaha Motors
COVER, HANDLE UPPER 255P-F6145-00
Required: 1
COVER, HANDLE UPPER 2
Price unavailable
13
Yamaha Motors
COVER, METER55P-H3559-00-PA
Required: 1
COVER, METER
Price unavailable
14
Yamaha Motors
NUT, SPRING90183-05811
Required: 2
NUT, SPRING
Price unavailable
15
Yamaha Motors
SCREW, ROUND TAPPING90160-05009
Required: 4
SCREW, ROUND TAPPING
Price unavailable
-15%
16
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
17
Yamaha Motors
GRIP ASSY55P-F6240-00
Required: 1
GRIP ASSY
Price unavailable
18
Yamaha Motors
GRIP55P-F6241-00
Required: 1
GRIP
Price unavailable
19
Yamaha Motors
REAR VIEW MIRROR ASSY (LEFT)31C-F6280-00
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
20
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)31C-F6290-00
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
21
Yamaha Motors
THROTTLE CABLE ASSY55P-F6301-00
Required: 1
THROTTLE CABLE ASSY
Price unavailable
-50%
22
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 1
SCREW, PAN HEAD
In stock
Only 4 remaining
$0.90
You save $0.90
23
Yamaha Motors
END, GRIP55P-F6246-00
Required: 2
END, GRIP
Price unavailable
24
Yamaha Motors
STOPPER16S-F6257-00
Required: 2
STOPPER
Price unavailable
25
Yamaha Motors
WEIGHT55P-F622H-00
Required: 2
WEIGHT
Price unavailable
26
Yamaha Motors
DAMPER, LOCATING 11S9-F622F-00
Required: 4
DAMPER, LOCATING 1
Price unavailable
-15%
In stock
Only 1 remaining
$5.52
You save $0.97
28
Yamaha Motors
CABLE, STARTER 155P-F6331-00
Required: 1
CABLE, STARTER 1
Price unavailable
29
Yamaha Motors
CAP, GRIP UPPER5P1-F6281-00
Required: 1
CAP, GRIP UPPER
Price unavailable
30
Yamaha Motors
CAP, GRIP UNDER5P1-F6282-00
Required: 1
CAP, GRIP UNDER
Price unavailable
-15%
31
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
$8.07
You save $1.42
32
Yamaha Motors
LABEL, WARNING1CN-F1568-V0
Required: 1
LABEL, WARNING
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
