2014 Scooter T115FLE - T115FLE (1FCA) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

9

to see part

9

Ships Now

9

Ships Later

9

Out of Stock

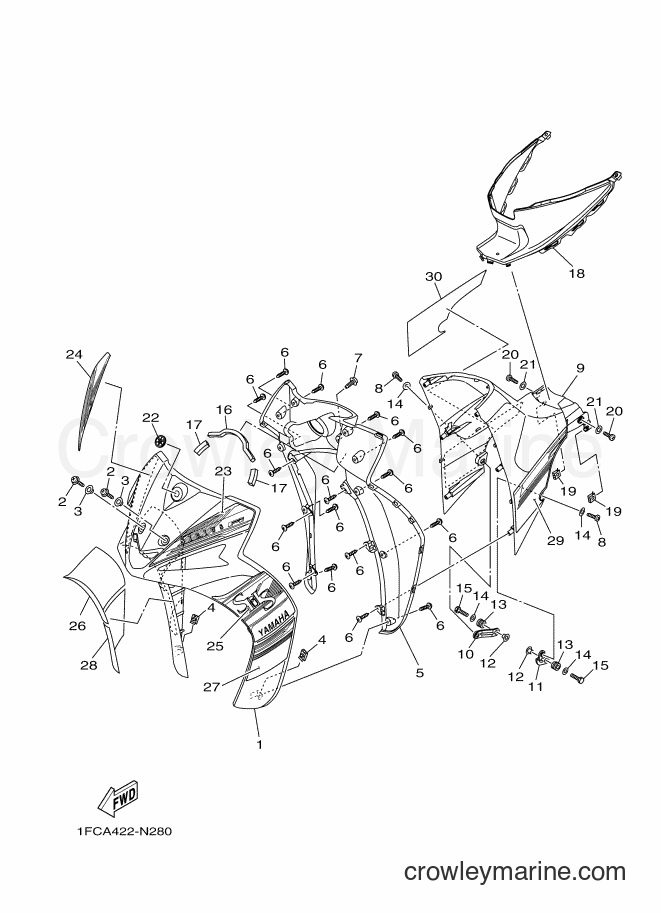

Yamaha Motors T115FLE (1FCA) [010] - LEG SHIELD

Change View:

LEG SHIELD 1

1

Yamaha Motors

LEG SHIELD 11FC-F8311-10-P2

Required: 1

LEG SHIELD 1

Price unavailable

SCREW, WITH WASHER

2

Yamaha Motors

SCREW, WITH WASHER90159-06810

Required: 2

SCREW, WITH WASHER

Price unavailable

COLLAR

3

Yamaha Motors

COLLAR90387-09803

Required: 2

COLLAR

Price unavailable

NUT, SPRING

4

Yamaha Motors

NUT, SPRING90183-05811

Required: 2

NUT, SPRING

Price unavailable

LEG SHIELD 2

5

Yamaha Motors

LEG SHIELD 21FC-F8312-10

Required: 1

LEG SHIELD 2

Price unavailable

-15%

Tapping Screw

Tapping Screw97702-50016-00

SCREW, TAPPING

~~$2.60~~

$2.21

You save $0.39

SCREW, WITH WASHER

7

Yamaha Motors

SCREW, WITH WASHER90159-06810

Required: 1

SCREW, WITH WASHER

Price unavailable

-15%

Binding Screw

Binding Screw98907-06020-00

SCREW, BIND

~~$9.49~~

$8.07

You save $1.42

COVER 1 (0121,VRC1)

9

Yamaha Motors

COVER 1 (0121,VRC1)1FC-F842M-10-P0

Required: 1

COVER 1 (0121,VRC1)

Price unavailable

STAY 1

10

Yamaha Motors

STAY 11FC-F8321-10

Required: 1

STAY 1

Price unavailable

STAY 2

11

Yamaha Motors

STAY 21FC-F8322-10

Required: 1

STAY 2

Price unavailable

COLLAR

12

Yamaha Motors

COLLAR90387-06814

Required: 2

COLLAR

Price unavailable

GROMMET

13

Yamaha Motors

GROMMET90480-13815

Required: 2

GROMMET

Price unavailable

-15%

Plate Washer

Plate Washer90201-06557-00

WASHER, PLATE

~~$3.55~~

$3.02

You save $0.53

-15%

Hexagon Bolt

Hexagon Bolt97017-06020-00

BOLT

Supersedes: 97007-06020-00

~~$4.06~~

$3.45

You save $0.61

DAMPER, PLATE

16

Yamaha Motors

DAMPER, PLATE90520-15807

Required: 1

DAMPER, PLATE

Price unavailable

DAMPER, PLATE

17

Yamaha Motors

DAMPER, PLATE90520-15013

Required: 2

DAMPER, PLATE

Price unavailable

COVER 2 (0033,YB)

18

Yamaha Motors

COVER 2 (0033,YB)1FC-F842N-10

Required: 1

COVER 2 (0033,YB)

Price unavailable

NUT, SPRING

19

Yamaha Motors

NUT, SPRING90183-05811

Required: 2

NUT, SPRING

Price unavailable

-15%

Binding Screw

Binding Screw98907-06020-00

SCREW, BIND

~~$9.49~~

$8.07

You save $1.42

-15%

Plate Washer

Plate Washer90201-06557-00

WASHER, PLATE

~~$3.55~~

$3.02

You save $0.53

TUNING FORK MARK

22

Yamaha Motors

TUNING FORK MARK16S-F175C-00

Required: 1

TUNING FORK MARK

Price unavailable

23

Yamaha Motors

GRAPHIC 191FC-F83B3-00

Required: 1

GRAPHIC 19

Price unavailable

24

Yamaha Motors

GRAPHIC 201FC-F83B4-00

Required: 1

GRAPHIC 20

Price unavailable

25

Yamaha Motors

GRAPHIC 211FC-F83B5-00

Required: 1

GRAPHIC 21

Price unavailable

26

Yamaha Motors

GRAPHIC 221FC-F83B6-00

Required: 1

GRAPHIC 22

Price unavailable

27

Yamaha Motors

GRAPHIC 231FC-F83B7-00

Required: 1

GRAPHIC 23

Price unavailable

28

Yamaha Motors

GRAPHIC 241FC-F83B8-00

Required: 1

GRAPHIC 24

Price unavailable

29

Yamaha Motors

GRAPHIC 251FC-F83B9-00

Required: 1

GRAPHIC 25

Price unavailable

30

Yamaha Motors

GRAPHIC 261FC-F83BA-00

Required: 1

GRAPHIC 26

Price unavailable
