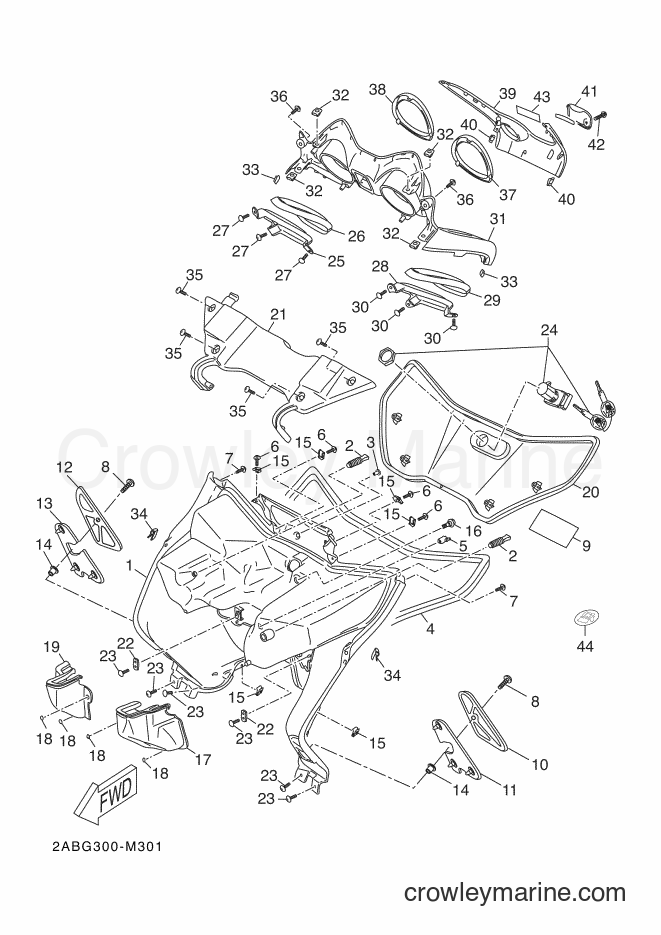

2013 Scooter YP125R - YP125R (2ABG) [030] LEG SHIELD diagram
![Yamaha Motors YP125R (2ABG) [030] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/a3emKK0t.png)
1
Yamaha Motors
LEG SHIELD 137P-F8311-20
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
CAP5B2-F8349-00
Required: 2
CAP
Price unavailable
-15%
In stock
Only 5 remaining
$6.37
You save $1.12
4
Yamaha Motors
DAMPER37P-F8372-00
Required: 1
DAMPER
Price unavailable
5
Yamaha Motors
PLATE, LOCK 34HC-24618-00
Required: 1
PLATE, LOCK 3
Price unavailable
-15%
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-15%
7
Yamaha Motors
Tapping Screw90167-05080-00
Required: 2
SCREW, TAPPING
$2.29
You save $0.41
8
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-05X07
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
9
Yamaha Motors
LABEL, WARNING5WX-F1568-10
Required: 1
LABEL, WARNING
Price unavailable
10
Yamaha Motors
COVER, FOOTREST2AB-F7423-00
Required: 1
COVER, FOOTREST
Price unavailable
11
Yamaha Motors
FOOTREST2AB-F7461-00
Required: 1
FOOTREST
Price unavailable
12
Yamaha Motors
COVER, FOOTREST2AB-F7413-00
Required: 1
COVER, FOOTREST
Price unavailable
13
Yamaha Motors
FOOTREST2AB-F7451-00
Required: 1
FOOTREST
Price unavailable
14
Yamaha Motors
COLLAR, MAIN STAND2AB-F7113-00
Required: 2
COLLAR, MAIN STAND
Price unavailable
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
16
Yamaha Motors
BOLT90109-06X05
Required: 1
BOLT
Price unavailable
17
Yamaha Motors
SEAL, BOX 137P-F838M-00
Required: 1
SEAL, BOX 1
Price unavailable
-15%
$0.42
You save $0.08
19
Yamaha Motors
SEAL, BOX 237P-F839M-00
Required: 1
SEAL, BOX 2
Price unavailable
20
Yamaha Motors
LID37P-F8313-00
Required: 1
LID
Price unavailable
21
Yamaha Motors
PLATE, FRONT37P-F8361-00
Required: 1
PLATE, FRONT
Price unavailable
22
Yamaha Motors
BRACKET5B2-F8366-00
Required: 2
BRACKET
Price unavailable
-15%
23
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 6
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
24
Yamaha Motors
LOCK ASSY37P-WF179-00
Required: 1
LOCK ASSY
Price unavailable
25
Yamaha Motors
PLATE37P-F8336-00
Required: 1
PLATE
Price unavailable
26
Yamaha Motors
COVER 337P-F843J-A0
Required: 1
COVER 3
Price unavailable
-15%
27
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
28
Yamaha Motors
HOLDER37P-F8337-00
Required: 1
HOLDER
Price unavailable
29
Yamaha Motors
HOLDER37P-F8337-A0
Required: 1
HOLDER
Price unavailable
-15%
30
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
31
Yamaha Motors
PANEL, INNER 337P-F836M-00
Required: 1
PANEL, INNER 3
Price unavailable
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
-15%
$7.22
You save $1.27
34
Yamaha Motors
CLIP37P-F8457-00
Required: 2
CLIP
Price unavailable
-15%
35
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-15%
36
Yamaha Motors
Tapping Screw90167-05080-00
Required: 2
SCREW, TAPPING
$2.29
You save $0.41
37
Yamaha Motors
MOLE 237P-F8346-10
Required: 1
MOLE 2
Price unavailable
38
Yamaha Motors
MOLE 437P-F8348-10
Required: 1
MOLE 4
Price unavailable
39
Yamaha Motors
MOLD, LEG SHIELD37P-F8339-00-P6
Required: 1
MOLD, LEG SHIELD
Price unavailable
-15%
$7.22
You save $1.27
41
Yamaha Motors
COVER 237P-F8229-00
Required: 1
COVER 2
Price unavailable
-15%
42
Yamaha Motors
Button head bolt92017-05020-00
Required: 1
BOLT, BUTTON HEAD
$3.32
You save $0.58
43
Yamaha Motors
EMBLEM 3D2AB-F839B-00
Required: 1
EMBLEM 3D
Price unavailable
44
Yamaha Motors
LABEL, CAUTION5DN-F415A-10
Required: 1
LABEL, CAUTION
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
