2013 Scooter VP250 - VP250 (5B2B) [060] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

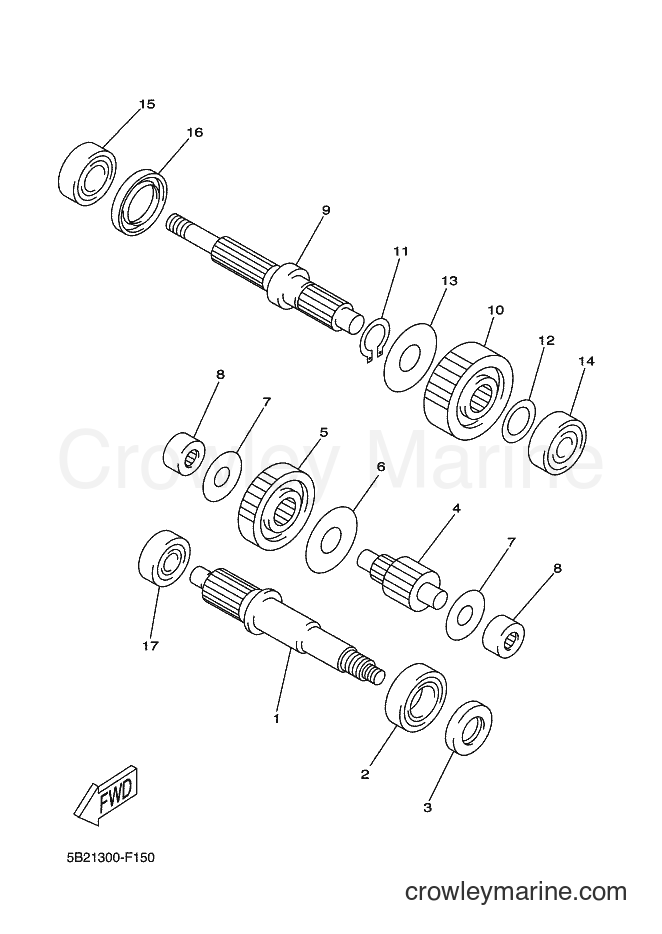

Yamaha Motors VP250 (5B2B) [060] - TRANSMISSION
Change View:
GEAR, PRIMARY DRIVE
1
Yamaha Motors
GEAR, PRIMARY DRIVE1C0-E6111-00
Required: 1
GEAR, PRIMARY DRIVE
Price unavailable
BEARING
2
Yamaha Motors
BEARING93306-255Y1
Required: 1
BEARING
Price unavailable
OIL SEAL
3
Yamaha Motors
OIL SEAL93102-25800
Required: 1
OIL SEAL
Price unavailable
AXLE, MAIN
4
Yamaha Motors
AXLE, MAIN1C0-E7411-10
Required: 1
AXLE, MAIN
Price unavailable
GEAR, PRIMARY DRIVEN
5
Yamaha Motors
GEAR, PRIMARY DRIVEN1C0-E6151-00
Required: 1
GEAR, PRIMARY DRIVEN
Price unavailable
WASHER, CONICAL SPRING
6
Yamaha Motors
WASHER, CONICAL SPRING90208-21X00
Required: 1
WASHER, CONICAL SPRING
Price unavailable
WASHER, PLATE
7
Yamaha Motors
WASHER, PLATE90201-15X05
Required: 2
WASHER, PLATE
Price unavailable
BEARING
8
Yamaha Motors
BEARING93311-415Y0
Required: 2
BEARING
Price unavailable
AXLE, DRIVE
9
Yamaha Motors
AXLE, DRIVE1C0-E7421-00
Required: 1
AXLE, DRIVE
Price unavailable
GEAR, 1ST WHEEL
10
Yamaha Motors
GEAR, 1ST WHEEL5B2-E7211-10
Required: 1
GEAR, 1ST WHEEL
Price unavailable
CIRCLIP
11
Yamaha Motors
CIRCLIP93410-25X00
Required: 1
CIRCLIP
Price unavailable
WASHER, PLATE
12
Yamaha Motors
WASHER, PLATE90201-23X00
Required: 1
WASHER, PLATE
Price unavailable
WASHER, CONICAL SPRING
13
Yamaha Motors
WASHER, CONICAL SPRING90208-25X00
Required: 1
WASHER, CONICAL SPRING
Price unavailable
BEARING
14
Yamaha Motors
BEARING93306-303YA
Required: 1
BEARING
Price unavailable
BEARING
15
Yamaha Motors
BEARING93306-272Y1
Required: 1
BEARING
Price unavailable
OIL SEAL
16
Yamaha Motors
OIL SEAL93102-32004
Required: 1
OIL SEAL
Price unavailable
BEARING
17
Yamaha Motors
BEARING93306-302X9
Required: 1
BEARING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
