2013 Scooter VP250 - VP250 (5B2B) [060] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

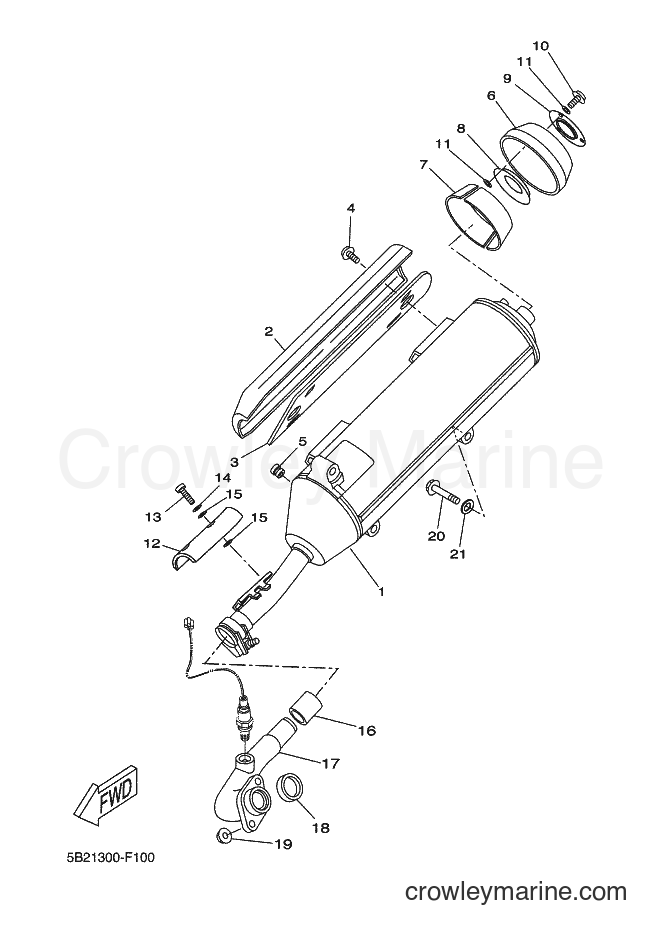

Yamaha Motors VP250 (5B2B) [060] - EXHAUST
Change View:
MUFFLER 1
1
Yamaha Motors
MUFFLER 11C0-E4711-01
Required: 1
MUFFLER 1
Price unavailable
PROTECTOR, (PAINTED)
2
Yamaha Motors
PROTECTOR, (PAINTED)1S6-E4718-10
Required: 1
PROTECTOR, (PAINTED)
Price unavailable
PROTECTOR, MUFFLER 3
3
Yamaha Motors
PROTECTOR, MUFFLER 35GM-14738-00
Required: 1
PROTECTOR, MUFFLER 3
Price unavailable
-15%
BOLT
4
Yamaha Motors
BOLT90111-06015-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
GROMMET, WATER TUBE (UPPER)
5
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10017-00
Required: 2
GROMMET
Supersedes: 90480-10332-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
CAP (PAINTED)
6
Yamaha Motors
CAP (PAINTED)1S6-E4799-10
Required: 1
CAP (PAINTED)
Price unavailable
PROTECTOR, MUFFLER 2
7
Yamaha Motors
PROTECTOR, MUFFLER 25GM-14728-00
Required: 2
PROTECTOR, MUFFLER 2
Price unavailable
DAMPER, MUFFLER
8
Yamaha Motors
DAMPER, MUFFLER1C0-E4747-00
Required: 1
DAMPER, MUFFLER
Price unavailable
PLATE
9
Yamaha Motors
PLATE5GM-1482K-00
Required: 1
PLATE
Price unavailable
-15%
BOLT
10
Yamaha Motors
BOLT90111-06020-00
Required: 3
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
WASHER, PROTECTOR
11
Yamaha Motors
WASHER, PROTECTOR5RB-14766-00
Required: 6
WASHER, PROTECTOR
Price unavailable
PROTECTOR, EXHAUST PIPE
12
Yamaha Motors
PROTECTOR, EXHAUST PIPE4HC-14628-00
Required: 1
PROTECTOR, EXHAUST PIPE
Price unavailable
-15%
Screw (3GG)
13
Yamaha Motors
Screw (3GG)92017-06012-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
-15%
Washer
14
Yamaha Motors
Washer92907-06200-00
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
WASHER PROTECTOR
15
Yamaha Motors
WASHER PROTECTOR4BD-14766-00-00
Required: 4
WASHER, PROTECTOR
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
GASKET, MUFFLER
16
Yamaha Motors
GASKET, MUFFLER1B9-14714-00
Required: 1
GASKET, MUFFLER
Price unavailable
PIPE, EXHAUST 1
17
Yamaha Motors
PIPE, EXHAUST 11C0-E4611-00
Required: 1
PIPE, EXHAUST 1
Price unavailable
-15%
EXHAUST PIPE GASKET
18
Yamaha Motors
EXHAUST PIPE GASKET3MT-14613-00-00
Required: 1
GASKET, EXHAUST PIPE
Cross Ship
Leaves in 2-5 days
$11.99
$10.19
You save $1.80
More details
-15%
Self Locking Nut
19
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
BOLT
20
Yamaha Motors
BOLT97017-12090
Required: 3
BOLT
Price unavailable
-15%
Plate Washer
21
Yamaha Motors
Plate Washer92907-12600-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
