All diagrams for this model

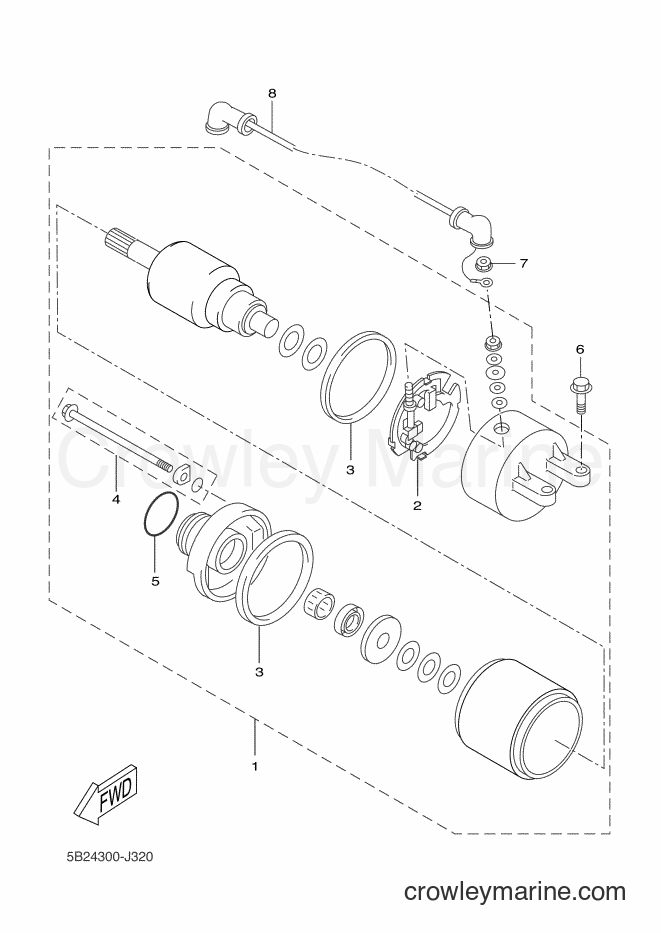

2013 Scooter VP250 - VP250 (5B2B) [030] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B2B) [030] - STARTING MOTOR
Change View:
STARTING MOTOR ASSY
1
Yamaha Motors
STARTING MOTOR ASSY1C0-H1800-12
Required: 1
STARTING MOTOR ASSY
Price unavailable
. BRUSH HOLDER ASSY
2
Yamaha Motors
. BRUSH HOLDER ASSY1C0-H1840-00
Required: 1
. BRUSH HOLDER ASSY
Price unavailable
. GASKET
3
Yamaha Motors
. GASKET1C0-H1844-00
Required: 2
. GASKET
Price unavailable
. BOLT
4
Yamaha Motors
. BOLT1C0-H1826-00
Required: 1
. BOLT
Price unavailable
. O-RING
5
Yamaha Motors
. O-RING1C0-H1847-00
Required: 1
. O-RING
Price unavailable
BOLT, FLANGE
6
Yamaha Motors
BOLT, FLANGE90105-06X05
Required: 2
BOLT, FLANGE
Price unavailable
-15%
Nut
7
Yamaha Motors
Nut4XV-8182A-00-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
CORD, STARTER MOTOR
8
Yamaha Motors
CORD, STARTER MOTOR5B2-H1815-00
Required: 1
CORD, STARTER MOTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
