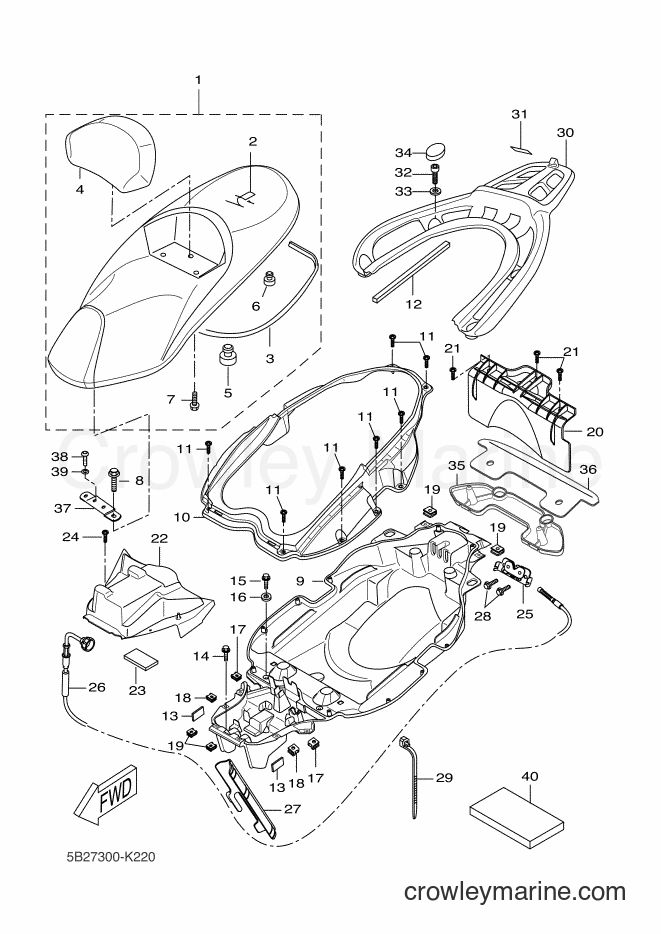

2013 Scooter VP250 - VP250 (5B2B) [040] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B2B) [040] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY5B2-F4730-80
Required: 1
DOUBLE SEAT ASSY
Price unavailable
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY5B2-F4730-90
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. COVER, SEAT
2
Yamaha Motors
. COVER, SEAT5B2-F4731-80
Required: 1
. COVER, SEAT
Price unavailable
. COVER, SEAT
2
Yamaha Motors
. COVER, SEAT5B2-F4731-90
Required: 1
. COVER, SEAT
Price unavailable
. SEAL
3
Yamaha Motors
. SEAL5B2-F475M-00
Required: 1
. SEAL
Price unavailable
. SEAT BACK ASSY
4
Yamaha Motors
. SEAT BACK ASSY5B2-F4790-90
Required: 1
. SEAT BACK ASSY
Price unavailable
. SEAT BACK ASSY
4
Yamaha Motors
. SEAT BACK ASSY5B2-F4790-80
Required: 1
. SEAT BACK ASSY
Price unavailable
-15%
Seat Pad
5
Yamaha Motors
Seat Pad3VL-F4741-00-00
Required: 2
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
. PAD, SEAT
6
Yamaha Motors
. PAD, SEAT1S6-F4741-00
Required: 2
. PAD, SEAT
Price unavailable
. BOLT 1
7
Yamaha Motors
. BOLT 15B2-F4176-00
Required: 3
. BOLT 1
Price unavailable
BOX 1
9
Yamaha Motors
BOX 15B2-F473R-10
Required: 1
BOX 1
Price unavailable
BOX 2
10
Yamaha Motors
BOX 25B2-F473S-00
Required: 1
BOX 2
Price unavailable
DAMPER
12
Yamaha Motors
DAMPER5B2-F8371-00
Required: 1
DAMPER
Price unavailable
DAMPER
13
Yamaha Motors
DAMPER4SB-F174X-70
Required: 2
DAMPER
Price unavailable
-15%
Washer Based Bolt
15
Yamaha Motors
Washer Based Bolt90105-06X02-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
WASHER, PLATE
16
Yamaha Motors
WASHER, PLATE90201-06X26
Required: 2
WASHER, PLATE
Price unavailable
-15%
Spring Nut
19
Yamaha Motors
Spring Nut90183-06X00-00
Required: 4
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
PLATE, FLAP FITTING 1
20
Yamaha Motors
PLATE, FLAP FITTING 15B2-F1623-01
Required: 1
PLATE, FLAP FITTING 1
Price unavailable
SCREW, TAPPING
21
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 3
SCREW, TAPPING
Price unavailable
LID 1
22
Yamaha Motors
LID 15B2-F844B-00
Required: 1
LID 1
Price unavailable
DAMPER
23
Yamaha Motors
DAMPER4SB-F174X-00
Required: 1
DAMPER
Price unavailable
SEAT LOCK ASSY
25
Yamaha Motors
SEAT LOCK ASSY5HT-F4780-10
Required: 1
SEAT LOCK ASSY
Price unavailable
SEAT LOCK CABLE ASSY
26
Yamaha Motors
SEAT LOCK CABLE ASSY5B2-F478D-00
Required: 1
SEAT LOCK CABLE ASSY
Price unavailable
PROTECTOR,2
27
Yamaha Motors
PROTECTOR,25B2-F476V-00
Required: 1
PROTECTOR,2
Price unavailable
BOLT,HEX. SOCKET BUTTON
28
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X05
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
-15%
Switch Cord Band
29
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 12
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
HANDLE, SEAT
30
Yamaha Motors
HANDLE, SEAT5B2-F4773-10
Required: 1
HANDLE, SEAT
Price unavailable
-15%
Caution Label
31
Yamaha Motors
Caution Label3LD-24877-A0-00
Required: 1
LABEL, CAUTION
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
BOLT,HEX. SOCKET BUTTON
32
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-08X05
Required: 4
BOLT,HEX. SOCKET BUTTON
Price unavailable
WASHER, PLATE
33
Yamaha Motors
WASHER, PLATE90201-08X23
Required: 4
WASHER, PLATE
Price unavailable
GROMMET
34
Yamaha Motors
GROMMET5B2-F4375-00
Required: 4
GROMMET
Price unavailable
PROTECTOR,1
35
Yamaha Motors
PROTECTOR,15B2-F476U-00
Required: 1
PROTECTOR,1
Price unavailable
PLATE, FLAP FITTING 2
36
Yamaha Motors
PLATE, FLAP FITTING 25B2-F1624-00
Required: 1
PLATE, FLAP FITTING 2
Price unavailable
BRACKET
37
Yamaha Motors
BRACKET5B2-F1238-00
Required: 1
BRACKET
Price unavailable
SCREW, PAN HEAD
38
Yamaha Motors
SCREW, PAN HEAD90157-05X08
Required: 2
SCREW, PAN HEAD
Price unavailable
WASHER, PLATE
39
Yamaha Motors
WASHER, PLATE90201-05X09
Required: 2
WASHER, PLATE
Price unavailable
MANUAL,OWNER'S
40
Yamaha Motors
MANUAL,OWNER'S5B2-F8199-H4
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
40
Yamaha Motors
MANUAL,OWNER'S5B2-F8199-G4
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
40
Yamaha Motors
MANUAL,OWNER'S5B2-F8199-E4
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
40
Yamaha Motors
MANUAL,OWNER'S5B2-F8199-S4
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
40
Yamaha Motors
MANUAL,OWNER'S5B2-F8199-F4
Required: 1
MANUAL,OWNER'S
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
