2013 Scooter T135HC - T135HC (55P5) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

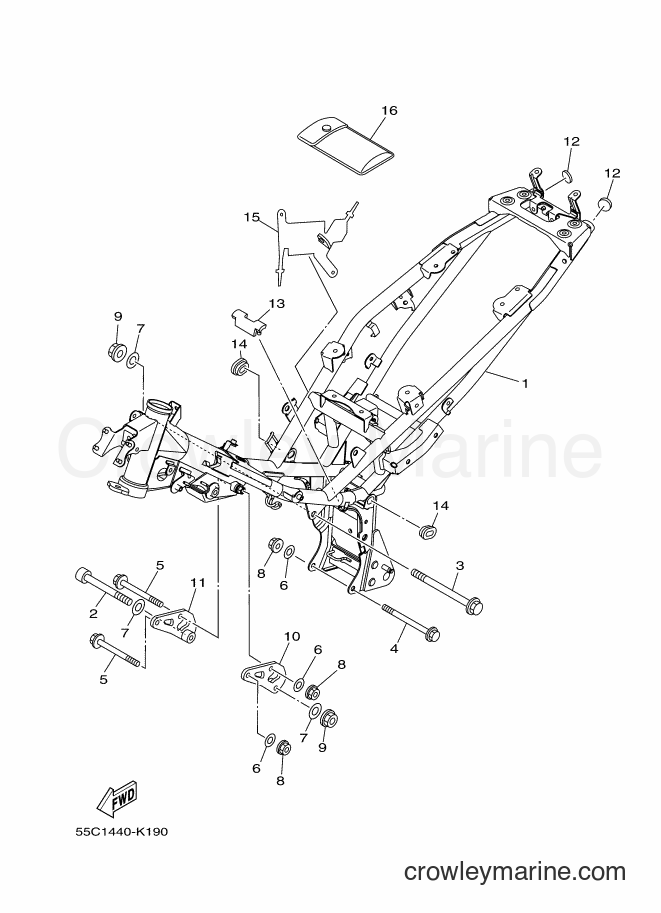

Yamaha Motors T135HC (55P5) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.55P-F1110-00
Required: 1
FRAME COMP.
Price unavailable
BOLT
2
Yamaha Motors
BOLT91312-10100
Required: 1
BOLT
Price unavailable
BOLT, FLANGE
3
Yamaha Motors
BOLT, FLANGE90105-10861
Required: 1
BOLT, FLANGE
Price unavailable
BOLT, FLANGE
4
Yamaha Motors
BOLT, FLANGE90105-088D9
Required: 1
BOLT, FLANGE
Price unavailable
BOLT, FLANGE
5
Yamaha Motors
BOLT, FLANGE90105-088D8
Required: 2
BOLT, FLANGE
Price unavailable
-15%
Plain Washer
6
Yamaha Motors
Plain Washer90201-086P8-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
-15%
Plain Washer
7
Yamaha Motors
Plain Washer90201-101J1-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
NUT
8
Yamaha Motors
NUT90179-08818
Required: 3
NUT
Price unavailable
-15%
Nut (1S72,5C81)
9
Yamaha Motors
Nut (1S72,5C81)90179-10805-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
STAY, ENGINE 2
10
Yamaha Motors
STAY, ENGINE 21S9-F1315-00
Required: 1
STAY, ENGINE 2
Price unavailable
STAY, ENGINE 2
11
Yamaha Motors
STAY, ENGINE 21S9-F1316-00
Required: 1
STAY, ENGINE 2
Price unavailable
COVER 2
12
Yamaha Motors
COVER 21S9-F139R-00
Required: 2
COVER 2
Price unavailable
DAMPER
13
Yamaha Motors
DAMPER1S9-F139X-00
Required: 1
DAMPER
Price unavailable
-15%
Grommet
14
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Supersedes: 90480-01868-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
PROTECTOR
15
Yamaha Motors
PROTECTOR1S9-F117G-00
Required: 1
PROTECTOR
Price unavailable
TOOL KIT
16
Yamaha Motors
TOOL KIT1S9-F8100-00
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
