All diagrams for this model

2013 Scooter T115FLSEC - T115FLSEC (1FD1) [020] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

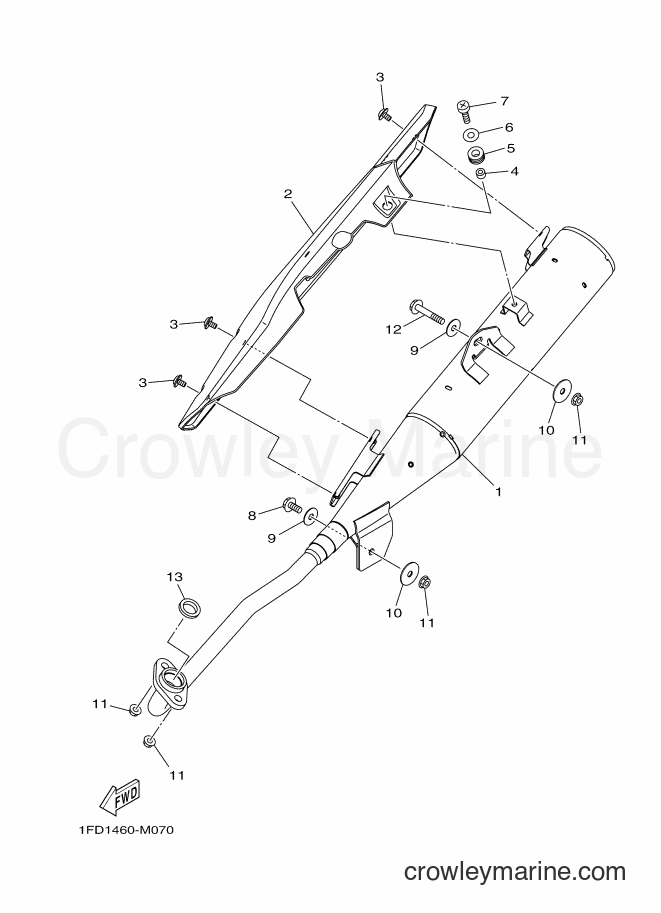

Yamaha Motors T115FLSEC (1FD1) [020] - EXHAUST
Change View:
MUFFLER 1
1
Yamaha Motors
MUFFLER 11FD-E4711-00
Required: 1
MUFFLER 1
Price unavailable
PROTECTOR, MUFFLER 1
2
Yamaha Motors
PROTECTOR, MUFFLER 11FD-E4718-00
Required: 1
PROTECTOR, MUFFLER 1
Price unavailable
-15%
BOLT
3
Yamaha Motors
BOLT90111-06015-00
Required: 3
BOLT,HEX. SOCKET BUTTON
Supersedes: 90111-06807-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
COLLAR
4
Yamaha Motors
COLLAR90387-06023-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
GROMMET 4FW
5
Yamaha Motors
GROMMET 4FW90480-12581-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
Plain Washer
6
Yamaha Motors
Plain Washer90201-06079-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Bind Screw
7
Yamaha Motors
Bind Screw98980-06016-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Plain Washer
9
Yamaha Motors
Plain Washer90201-08055-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
WASHER, PLATE
10
Yamaha Motors
WASHER, PLATE90201-08116
Required: 2
WASHER, PLATE
Price unavailable
GASKET, EXHAUST PIPE
13
Yamaha Motors
GASKET, EXHAUST PIPE14D-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
