2013 Scooter T115FLSE - T115FLSE (1FP2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

9

to see part

9

Ships Now

9

Ships Later

9

Out of Stock

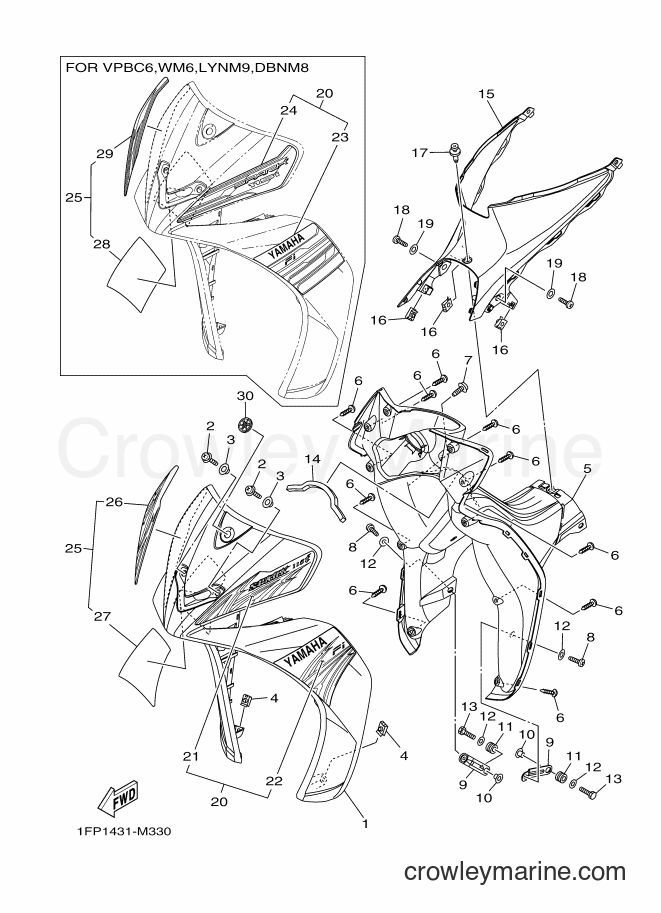

Yamaha Motors T115FLSE (1FP2) [010] - LEG SHIELD

Change View:

LEG SHIELD 1 (1121,SMY)

1

Yamaha Motors

LEG SHIELD 1 (1121,SMY)1FC-F8311-00-P0

Required: 1

LEG SHIELD 1 (1121,SMY)

Price unavailable

SCREW, WITH WASHER

2

Yamaha Motors

SCREW, WITH WASHER90159-06810

Required: 2

SCREW, WITH WASHER

Price unavailable

COLLAR

3

Yamaha Motors

COLLAR90387-09803

Required: 2

COLLAR

Price unavailable

NUT, SPRING

4

Yamaha Motors

NUT, SPRING90183-05811

Required: 2

NUT, SPRING

Price unavailable

LEG SHIELD 2 (00E9,CMR)

5

Yamaha Motors

LEG SHIELD 2 (00E9,CMR)1FP-F8312-00

Required: 1

LEG SHIELD 2 (00E9,CMR)

Price unavailable

-15%

Tapping Screw

Tapping Screw97702-50016-00

SCREW, TAPPING

~~$2.60~~

$2.21

You save $0.39

SCREW, WITH WASHER

7

Yamaha Motors

SCREW, WITH WASHER90159-06810

Required: 1

SCREW, WITH WASHER

Price unavailable

-15%

Binding Screw

Binding Screw98907-06020-00

SCREW, BIND

~~$9.49~~

$8.07

You save $1.42

STAY 1

9

Yamaha Motors

STAY 11FC-F8321-00

Required: 2

STAY 1

Price unavailable

COLLAR

10

Yamaha Motors

COLLAR90387-06814

Required: 2

COLLAR

Price unavailable

GROMMET

11

Yamaha Motors

GROMMET90480-13815

Required: 2

GROMMET

Price unavailable

-15%

Plate Washer

Plate Washer90201-06557-00

WASHER, PLATE

~~$3.55~~

$3.02

You save $0.53

-15%

Hexagon Bolt

Hexagon Bolt97017-06020-00

BOLT

Supersedes: 97007-06020-00

~~$4.06~~

$3.45

You save $0.61

DAMPER, PLATE

14

Yamaha Motors

DAMPER, PLATE90520-15807

Required: 1

DAMPER, PLATE

Price unavailable

COVER 2 (00E9,CMR)

15

Yamaha Motors

COVER 2 (00E9,CMR)1FP-F842N-00

Required: 1

COVER 2 (00E9,CMR)

Price unavailable

NUT, SPRING

16

Yamaha Motors

NUT, SPRING90183-05811

Required: 3

NUT, SPRING

Price unavailable

-15%

RIVET

RIVET90269-06812-00

RIVET

~~$1.30~~

$1.10

You save $0.20

-15%

Binding Screw

Binding Screw98907-06020-00

SCREW, BIND

~~$9.49~~

$8.07

You save $1.42

-15%

Plate Washer

Plate Washer90201-06557-00

WASHER, PLATE

~~$3.55~~

$3.02

You save $0.53

GRAPHIC SET, LEG SHIELD 1

20

Yamaha Motors

GRAPHIC SET, LEG SHIELD 11FP-WF83L-00

Required: 1

GRAPHIC SET, LEG SHIELD 1

Price unavailable

. GRAPHIC 1

21

Yamaha Motors

. GRAPHIC 11FP-F8391-00

Required: 1

. GRAPHIC 1

Price unavailable

. GRAPHIC 3

22

Yamaha Motors

. GRAPHIC 31FP-F8393-00

Required: 1

. GRAPHIC 3

Price unavailable

GRAPHIC SET, LEG SHIELD 2

25

Yamaha Motors

GRAPHIC SET, LEG SHIELD 21FP-WF83N-00

Required: 1

GRAPHIC SET, LEG SHIELD 2

Price unavailable

. GRAPHIC 2

26

Yamaha Motors

. GRAPHIC 21FP-F8392-00

Required: 1

. GRAPHIC 2

Price unavailable

. GRAPHIC 4

27

Yamaha Motors

. GRAPHIC 41FP-F8394-00

Required: 1

. GRAPHIC 4

Price unavailable

TUNING FORK MARK

30

Yamaha Motors

TUNING FORK MARK16S-F175C-00

Required: 1

TUNING FORK MARK

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
