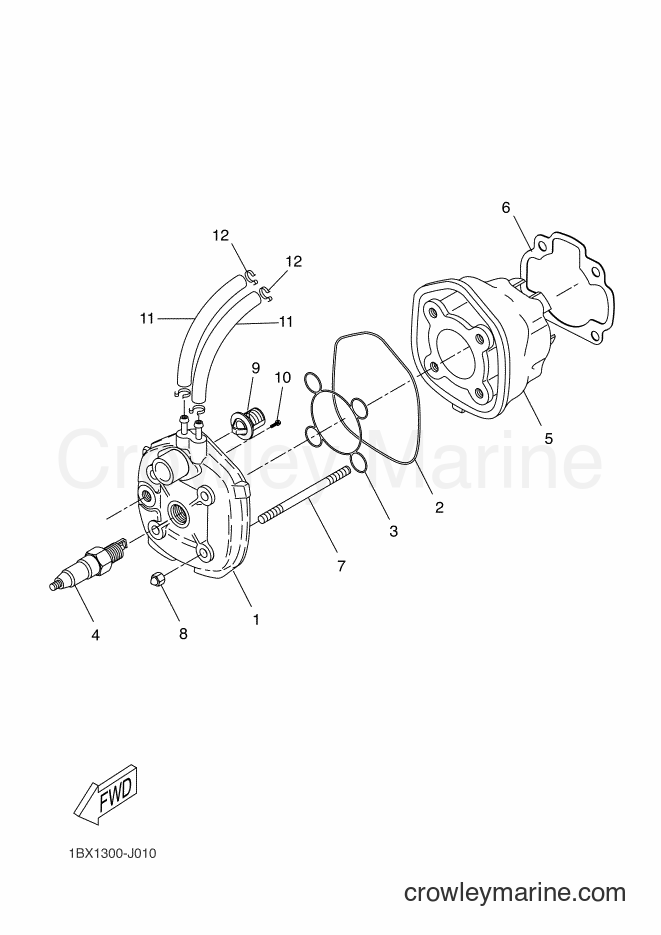

Yamaha Motors NS50 (1PH2) [010] - CYLINDER HEAD
Change View:
HEAD, CYLINDER 1
1
Yamaha Motors
HEAD, CYLINDER 15HE-E1111-00
Required: 1
HEAD, CYLINDER 1
Price unavailable
HEAD, CYLINDER 1
1
Yamaha Motors
HEAD, CYLINDER 15RW-E1111-00
Required: 1
HEAD, CYLINDER 1
Price unavailable
GASKET, HEAD COVER 2
2
Yamaha Motors
GASKET, HEAD COVER 25BR-E1194-00
Required: 1
GASKET, HEAD COVER 2
Price unavailable
GASKET, HEAD COVER 1
3
Yamaha Motors
GASKET, HEAD COVER 15BR-E1193-00
Required: 1
GASKET, HEAD COVER 1
Price unavailable
PLUG, SPARK (NGK BR8HS)
4
Yamaha Motors
PLUG, SPARK (NGK BR8HS)94701-00X12
Required: 1
PLUG, SPARK (NGK BR8HS)
Price unavailable
CYLINDER 1
5
Yamaha Motors
CYLINDER 15BR-E1311-20
Required: 1
CYLINDER 1
Price unavailable
GASKET, CYLINDER
6
Yamaha Motors
GASKET, CYLINDER5BR-E1351-00
Required: 1
GASKET, CYLINDER
Price unavailable
BOLT, STUD
7
Yamaha Motors
BOLT, STUD90116-07X04
Required: 4
BOLT, STUD
Price unavailable
NUT
8
Yamaha Motors
NUT90179-07X00
Required: 4
NUT
Price unavailable
THERMOSTAT ASSY
9
Yamaha Motors
THERMOSTAT ASSY5BR-E2410-10
Required: 1
THERMOSTAT ASSY
Price unavailable
-15%
Bind Screw
10
Yamaha Motors
Bind Screw98907-04010-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$1.35
$1.15
You save $0.20
More details
PIPE
11
Yamaha Motors
PIPE5BR-E4148-10
Required: 2
PIPE
Price unavailable
CLIP
12
Yamaha Motors
CLIP5BR-E4159-00
Required: 4
CLIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
