All diagrams for this model

2013 Scooter NS50 - NS50 (1PH1) [040] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

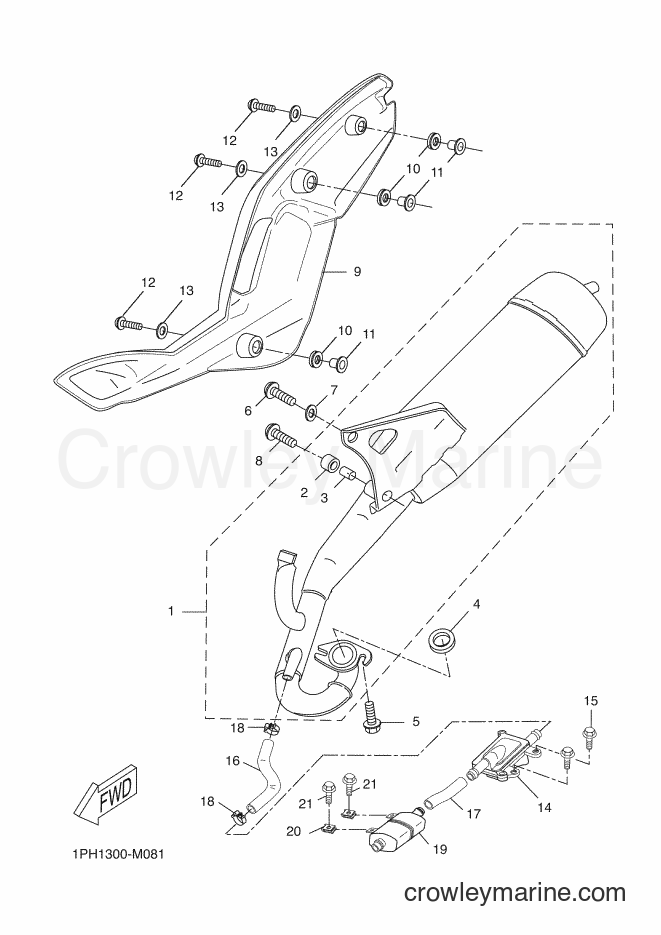

Yamaha Motors NS50 (1PH1) [040] - EXHAUST
Change View:
EXHAUST PIPE ASSY 1
1
Yamaha Motors
EXHAUST PIPE ASSY 11PH-E4610-10
Required: 1
EXHAUST PIPE ASSY 1
Price unavailable
EXHAUST PIPE ASSY 1
1
Yamaha Motors
EXHAUST PIPE ASSY 11PH-E4610-00
Required: 1
EXHAUST PIPE ASSY 1
Price unavailable
-15%
GROMMET, WATER TUBE (UPPER)
2
Yamaha Motors
GROMMET, WATER TUBE (UPPER)4MJ-E4445-00-00
Required: 1
. GROMMET
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
GASKET, EXHAUST PIPE
4
Yamaha Motors
GASKET, EXHAUST PIPE5AD-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
-15%
Hexagon Screw
5
Yamaha Motors
Hexagon Screw90153-06061-00
Required: 2
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
SCREW
6
Yamaha Motors
SCREW90149-08X02
Required: 1
SCREW
Price unavailable
WASHER, PLATE
7
Yamaha Motors
WASHER, PLATE90201-08X09
Required: 1
WASHER, PLATE
Price unavailable
SCREW
8
Yamaha Motors
SCREW90149-08X07
Required: 1
SCREW
Price unavailable
PROTECTOR, MUFFLER
9
Yamaha Motors
PROTECTOR, MUFFLER1PH-E460B-00
Required: 1
PROTECTOR, MUFFLER
Price unavailable
GROMMET
10
Yamaha Motors
GROMMET90480-11X00
Required: 3
GROMMET
Price unavailable
-15%
COLLAR
11
Yamaha Motors
COLLAR90387-06063-00
Required: 3
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
BOLT
12
Yamaha Motors
BOLT90111-06020-00
Required: 3
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
WASHER, PROTECTOR
13
Yamaha Motors
WASHER, PROTECTOR3WG-E4766-10
Required: 3
WASHER, PROTECTOR
Price unavailable
AIR INDUCTION SYSTEM ASSY
14
Yamaha Motors
AIR INDUCTION SYSTEM ASSY5RN-E4803-00
Required: 1
AIR INDUCTION SYSTEM ASSY
Price unavailable
BOLT, FLANGE
15
Yamaha Motors
BOLT, FLANGE90105-06X24
Required: 2
BOLT, FLANGE
Price unavailable
HOSE, BEND 1
16
Yamaha Motors
HOSE, BEND 11PH-E4881-00
Required: 1
HOSE, BEND 1
Price unavailable
HOSE, BEND 2
17
Yamaha Motors
HOSE, BEND 21PH-E4882-00
Required: 1
HOSE, BEND 2
Price unavailable
CLIP
18
Yamaha Motors
CLIP90467-16X00
Required: 2
CLIP
Price unavailable
AIR FILTER
19
Yamaha Motors
AIR FILTER5RJ-E4806-00
Required: 1
AIR FILTER
Price unavailable
-15%
Spring Nut
20
Yamaha Motors
Spring Nut90183-06X00-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
BOLT, FLANGE
21
Yamaha Motors
BOLT, FLANGE90105-06X24
Required: 2
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
