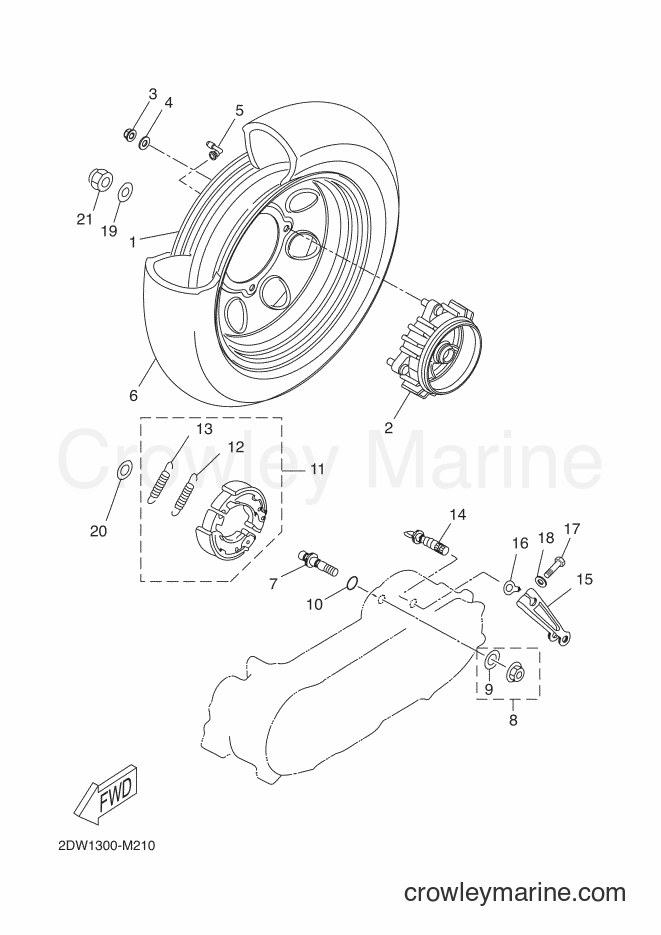

2013 Scooter CW50E - CW50E (2DW1) [030] REAR WHEEL diagram
![Yamaha Motors CW50E (2DW1) [030] - REAR WHEEL](https://cdn.crowleymarine.com/yamaha/bKSEWfT9.png)
1
Yamaha Motors
PANEL, WHEEL2DW-F539W-00
Required: 1
PANEL, WHEEL
Price unavailable
2
Yamaha Motors
HUB ASSY2DK-F5310-00
Required: 1
HUB ASSY
Price unavailable
3
Yamaha Motors
NUT, SELF-LOCKING90185-10804
Required: 4
NUT, SELF-LOCKING
Price unavailable
-15%
4
Yamaha Motors
92990-10200-0092903-10200-00
Required: 4
WASHER
Supersedes: 92902-10200-00
No longer availableSearch Nationwide Inventory
$3.32
You save $0.58
5
Yamaha Motors
AIR VALVE ASSY2DW-F5170-00
Required: 1
AIR VALVE ASSY
Price unavailable
6
Yamaha Motors
TIRE (130/90-10 61J MC17)*
Required: 1
TIRE (130/90-10 61J MC17)
Price unavailable
7
Yamaha Motors
PIN, PIVOT3VL-F5326-10
Required: 1
PIN, PIVOT
Price unavailable
8
Yamaha Motors
Flange Bolt95704-10500-00
Required: 1
NUT, AXLE
Supersedes: 3VL-F5182-00-00
$2.28
9
Yamaha Motors
Wheel Washer3VL-F5384-00-00
Required: 1
. WASHER, WHEEL
$0.35
10
Yamaha Motors
O-RING93210-07X02
Required: 1
O-RING
Price unavailable
11
Yamaha Motors
BRAKE SHOE SET5WW-F530K-00
Required: 1
BRAKE SHOE SET
Price unavailable
12
Yamaha Motors
. SPRING, TENSION90506-12X00
Required: 1
. SPRING, TENSION
Price unavailable
13
Yamaha Motors
. SPRING, TENSION90506-15X01
Required: 1
. SPRING, TENSION
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$23.29
You save $4.11
-15%
15
Yamaha Motors
CAMSHAFT LEVER4VU-F5355-00-00
Required: 1
LEVER, CAMSHAFT
$43.34
You save $7.65
16
Yamaha Motors
PLATE, INDICATOR5AD-F533A-00
Required: 1
PLATE, INDICATOR
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$6.37
You save $1.12
-15%
18
Yamaha Motors
Plain Washer90201-06X01-00
Required: 1
WASHER, PLATE
$2.68
You save $0.47
-15%
19
Yamaha Motors
Plate Washer90201-142M6-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57
20
Yamaha Motors
WASHER, PLATE90201-17X00
Required: 1
WASHER, PLATE
Price unavailable
-15%
21
Yamaha Motors
Self-Locking Nut90185-14150-00
Required: 1
NUT, SELF-LOCKING
$14.02
You save $2.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
