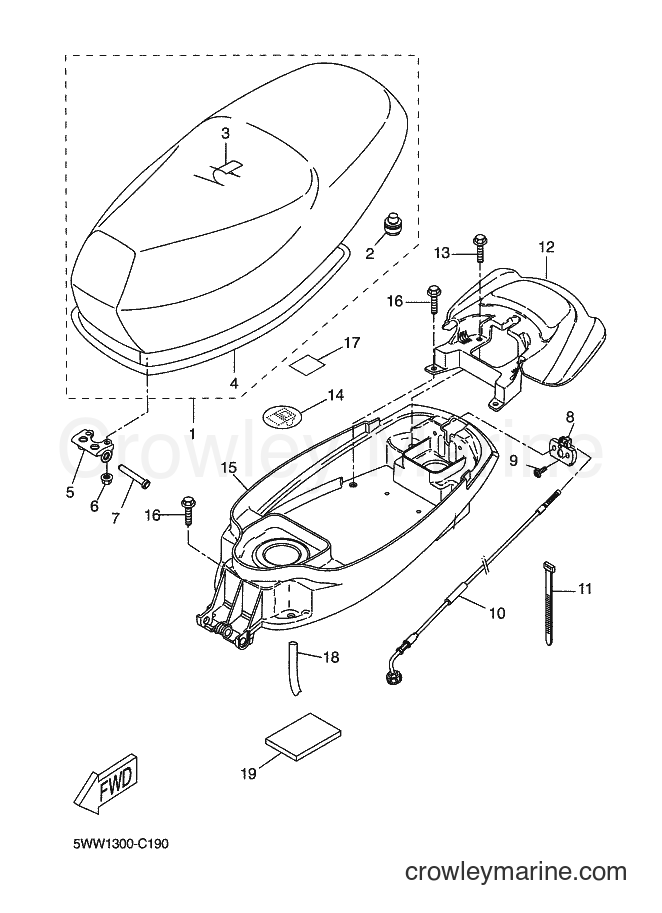

Yamaha Motors CW50E (2DW1) [060] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY2DW-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
-15%
Seat Pad
2
Yamaha Motors
Seat Pad3VL-F4741-00-00
Required: 4
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
. COVER, SEAT
3
Yamaha Motors
. COVER, SEAT2DW-F4731-00
Required: 1
. COVER, SEAT
Price unavailable
. SEAL
4
Yamaha Motors
. SEAL5WW-F475M-00
Required: 1
. SEAL
Price unavailable
HINGE, SEAT
5
Yamaha Motors
HINGE, SEAT4CU-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
-15%
Nut
6
Yamaha Motors
Nut90179-06X00-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
PIN
7
Yamaha Motors
PIN90241-10X00
Required: 1
PIN
Price unavailable
SEAT LOCK ASSY
8
Yamaha Motors
SEAT LOCK ASSY5HT-F4780-10
Required: 1
SEAT LOCK ASSY
Price unavailable
BOLT,HEX. SOCKET BUTTON
9
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X05
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
CABLE, SEAT LOCK
10
Yamaha Motors
CABLE, SEAT LOCK5WW-F478E-10
Required: 1
CABLE, SEAT LOCK
Price unavailable
-15%
Switch Cord Band
11
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 2
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
HANDLE, SEAT
12
Yamaha Motors
HANDLE, SEAT5WW-F4773-00
Required: 1
HANDLE, SEAT
Price unavailable
-15%
Washer Based Bolt
13
Yamaha Motors
Washer Based Bolt90105-06X02-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
LABEL, CAUTION
14
Yamaha Motors
LABEL, CAUTION5DN-F415A-10
Required: 1
LABEL, CAUTION
Price unavailable
BOX 1
15
Yamaha Motors
BOX 15WW-F473R-00
Required: 1
BOX 1
Price unavailable
BOLT, FLANGE
16
Yamaha Motors
BOLT, FLANGE90105-06841
Required: 4
BOLT, FLANGE
Price unavailable
LABEL
17
Yamaha Motors
LABEL2DW-F118N-00
Required: 1
LABEL
Price unavailable
MANUAL,OWNER'S
19
Yamaha Motors
MANUAL,OWNER'S2DW-F8199-G0
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
19
Yamaha Motors
MANUAL,OWNER'S2DW-F8199-H0
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
19
Yamaha Motors
MANUAL,OWNER'S2DW-F8199-F0
Required: 1
MANUAL,OWNER'S
Price unavailable
