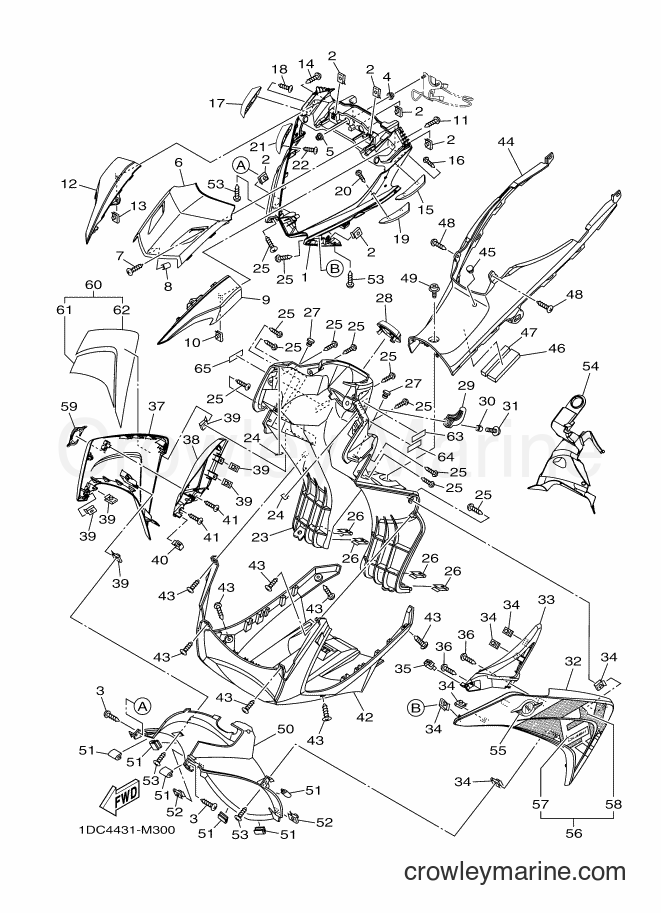

Yamaha Motors AT125FC (1DC4) [010] - LEG SHIELD
Change View:
LEG SHIELD 1 (0251,RYC1)
1
Yamaha Motors
LEG SHIELD 1 (0251,RYC1)1DB-F8311-00-P6
Required: 1
LEG SHIELD 1 (0251,RYC1)
Price unavailable
-15%
COLLAR
4
Yamaha Motors
COLLAR90387-09805-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
-15%
SPECIAL SHAPE NUT
5
Yamaha Motors
SPECIAL SHAPE NUT90179-06403-00
Required: 2
NUT
Supersedes: 90179-06841-00
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
COVER, HEADLIGHT (0919,DBNM8)
6
Yamaha Motors
COVER, HEADLIGHT (0919,DBNM8)1DB-F838E-00-P5
Required: 1
COVER, HEADLIGHT (0919,DBNM8)
Price unavailable
DAMPER
8
Yamaha Motors
DAMPER1DB-F113B-00
Required: 1
DAMPER
Price unavailable
COVER, HEADLIGHT 1(1121,SMY)
9
Yamaha Motors
COVER, HEADLIGHT 1(1121,SMY)1DB-F838D-00-P0
Required: 1
COVER, HEADLIGHT 1(1121,SMY)
Price unavailable
COVER, HEADLIGHT 2 (1121,SMY)
12
Yamaha Motors
COVER, HEADLIGHT 2 (1121,SMY)1DB-F838S-00-P0
Required: 1
COVER, HEADLIGHT 2 (1121,SMY)
Price unavailable
FIN 1 (1121,SMY)
15
Yamaha Motors
FIN 1 (1121,SMY)1DB-F8273-00-P0
Required: 1
FIN 1 (1121,SMY)
Price unavailable
FIN 2 (1121,SMY)
17
Yamaha Motors
FIN 2 (1121,SMY)1DB-F8274-00-P0
Required: 1
FIN 2 (1121,SMY)
Price unavailable
FIN, 3 (1121,SMY)
19
Yamaha Motors
FIN, 3 (1121,SMY)1DB-F8279-00-P0
Required: 1
FIN, 3 (1121,SMY)
Price unavailable
FIN, 4 (1121,SMY)
21
Yamaha Motors
FIN, 4 (1121,SMY)1DB-F827A-00-P0
Required: 1
FIN, 4 (1121,SMY)
Price unavailable
LEG SHIELD ASSY (0919,DBNM8)
23
Yamaha Motors
LEG SHIELD ASSY (0919,DBNM8)5P1-F8300-01-P8
Required: 1
LEG SHIELD ASSY (0919,DBNM8)
Price unavailable
DAMPER
24
Yamaha Motors
DAMPER1DB-H4559-00
Required: 2
DAMPER
Price unavailable
PLUG
27
Yamaha Motors
PLUG90338-07800
Required: 2
PLUG
Price unavailable
COVER
28
Yamaha Motors
COVER1DB-F8365-00
Required: 1
COVER
Price unavailable
HOOK 1
29
Yamaha Motors
HOOK 15VD-F8257-10
Required: 1
HOOK 1
Price unavailable
COLLAR
30
Yamaha Motors
COLLAR5P1-F8373-00
Required: 1
COLLAR
Price unavailable
BOLT,HEX. SOCKET BUTTON
31
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06815
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
PANEL 1 (1121,SMY)
32
Yamaha Motors
PANEL 1 (1121,SMY)1DB-F835U-00-P0
Required: 1
PANEL 1 (1121,SMY)
Price unavailable
COVER, FLASHER 1 (1121,SMY)
33
Yamaha Motors
COVER, FLASHER 1 (1121,SMY)1DB-F83D3-00-P4
Required: 1
COVER, FLASHER 1 (1121,SMY)
Price unavailable
HOOK
35
Yamaha Motors
HOOK4P8-F8379-00
Required: 1
HOOK
Price unavailable
-15%
Truss Screw
36
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
PANEL 2 (1121,SMY)
37
Yamaha Motors
PANEL 2 (1121,SMY)1DB-F835V-00-P0
Required: 1
PANEL 2 (1121,SMY)
Price unavailable
COVER, FLASHER 2 (1121,SMY)
38
Yamaha Motors
COVER, FLASHER 2 (1121,SMY)1DB-F83D4-00-P4
Required: 1
COVER, FLASHER 2 (1121,SMY)
Price unavailable
HOOK
40
Yamaha Motors
HOOK4P8-F8379-00
Required: 1
HOOK
Price unavailable
-15%
Truss Screw
41
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
COVER, UNDER
42
Yamaha Motors
COVER, UNDER1DC-F8385-00
Required: 1
COVER, UNDER
Price unavailable
COVER 2 (0033,YB)
44
Yamaha Motors
COVER 2 (0033,YB)5P1-F842N-00
Required: 1
COVER 2 (0033,YB)
Price unavailable
PLUG, BLIND
45
Yamaha Motors
PLUG, BLIND5HU-F6199-00
Required: 1
PLUG, BLIND
Price unavailable
DAMPER, PLATE
46
Yamaha Motors
DAMPER, PLATE90520-20810
Required: 1
DAMPER, PLATE
Price unavailable
DAMPER, PLATE
47
Yamaha Motors
DAMPER, PLATE90520-10815
Required: 1
DAMPER, PLATE
Price unavailable
-15%
Truss Screw
48
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
SCREW, WITH WASHER
49
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 1
SCREW, WITH WASHER
Price unavailable
FENDER, INNER
50
Yamaha Motors
FENDER, INNER5P1-F1552-00
Required: 1
FENDER, INNER
Price unavailable
DAMPER, PLATE
51
Yamaha Motors
DAMPER, PLATE90520-05811
Required: 6
DAMPER, PLATE
Price unavailable
FLAP, FRONT FENDER
54
Yamaha Motors
FLAP, FRONT FENDER5P1-F1521-00
Required: 1
FLAP, FRONT FENDER
Price unavailable
EMBLEM 3D
55
Yamaha Motors
EMBLEM 3D1DB-F173B-00
Required: 1
EMBLEM 3D
Price unavailable
GRAPHIC SET, PANEL 1 (1121)
56
Yamaha Motors
GRAPHIC SET, PANEL 1 (1121)1DC-WF83U-50
Required: 1
GRAPHIC SET, PANEL 1 (1121)
Price unavailable
. GRAPHIC, 1
57
Yamaha Motors
. GRAPHIC, 11DC-F841G-00
Required: 1
. GRAPHIC, 1
Price unavailable
. GRAPHIC, 3
58
Yamaha Motors
. GRAPHIC, 31DC-F843G-00
Required: 1
. GRAPHIC, 3
Price unavailable
EMBLEM 3D
59
Yamaha Motors
EMBLEM 3D1DB-F174B-00
Required: 1
EMBLEM 3D
Price unavailable
GRAPHIC SET, PANEL 2 (1121)
60
Yamaha Motors
GRAPHIC SET, PANEL 2 (1121)1DC-WF83V-50
Required: 1
GRAPHIC SET, PANEL 2 (1121)
Price unavailable
. GRAPHIC, 2
61
Yamaha Motors
. GRAPHIC, 21DC-F842G-00
Required: 1
. GRAPHIC, 2
Price unavailable
. GRAPHIC, 4
62
Yamaha Motors
. GRAPHIC, 41DC-F844G-00
Required: 1
. GRAPHIC, 4
Price unavailable
LABEL, SAFETY
63
Yamaha Motors
LABEL, SAFETY1DC-F1659-00
Required: 1
LABEL, SAFETY
Price unavailable
LABEL, WARNING
64
Yamaha Motors
LABEL, WARNING1DC-F1568-00
Required: 1
LABEL, WARNING
Price unavailable
LABEL, NOTICE 1
65
Yamaha Motors
LABEL, NOTICE 11DC-F815P-00
Required: 1
LABEL, NOTICE 1
Price unavailable
