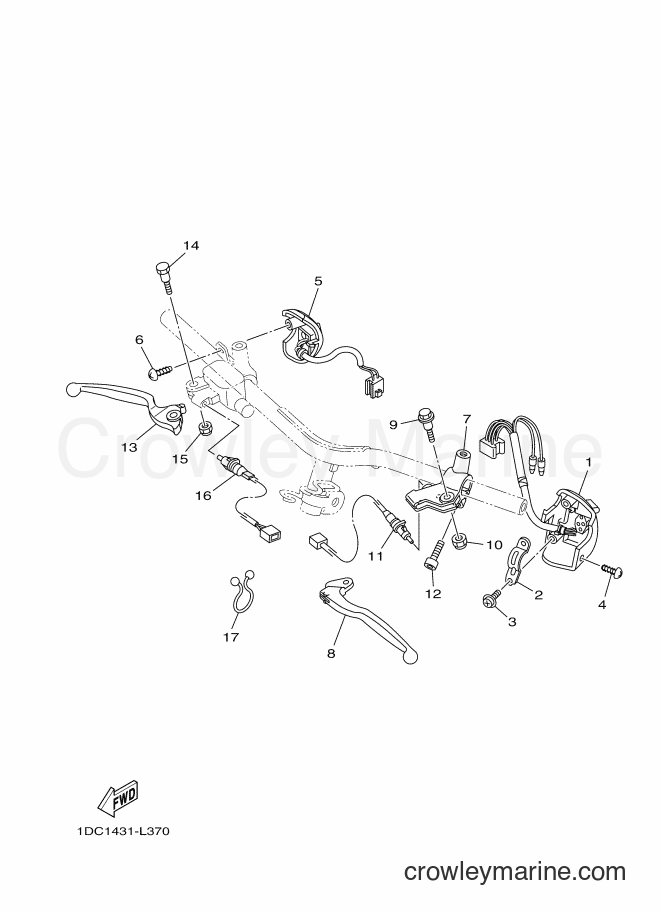

2013 Scooter AT125FC - AT125FC (1DC4) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT125FC (1DC4) [010] - HANDLE SWITCH & LEVER
Change View:
SWITCH, HANDLE 3
1
Yamaha Motors
SWITCH, HANDLE 31DB-H3973-00
Required: 1
SWITCH, HANDLE 3
Price unavailable
BRACKET 1
2
Yamaha Motors
BRACKET 15WP-H3955-00
Required: 1
BRACKET 1
Price unavailable
SCREW, WITH WASHER
3
Yamaha Motors
SCREW, WITH WASHER97607-05216
Required: 2
SCREW, WITH WASHER
Price unavailable
-15%
Truss Screw
4
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
SWITCH, HANDLE 1
5
Yamaha Motors
SWITCH, HANDLE 11DC-H3976-00
Required: 1
SWITCH, HANDLE 1
Price unavailable
HOLDER, LEVER 1
7
Yamaha Motors
HOLDER, LEVER 11DB-H2911-00
Required: 1
HOLDER, LEVER 1
Price unavailable
LEVER 1
8
Yamaha Motors
LEVER 15WP-H3912-10
Required: 1
LEVER 1
Price unavailable
-15%
BOLT
9
Yamaha Motors
BOLT90109-06798-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
NUT
10
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$3.60
More details
FRONT STOP SWITCH ASSY
11
Yamaha Motors
FRONT STOP SWITCH ASSY15C-H3980-10
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
Bolt
12
Yamaha Motors
Bolt91317-06020-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$4.23
More details
LEVER 2
13
Yamaha Motors
LEVER 24D1-H3922-10
Required: 1
LEVER 2
Price unavailable
-15%
BOLT
14
Yamaha Motors
BOLT90109-06577-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
NUT
15
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$3.60
More details
FRONT STOP SWITCH ASSY
16
Yamaha Motors
FRONT STOP SWITCH ASSY15C-H3980-20
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
-15%
Clamp
17
Yamaha Motors
Clamp90464-16801-00
Required: 5
CLAMP
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
