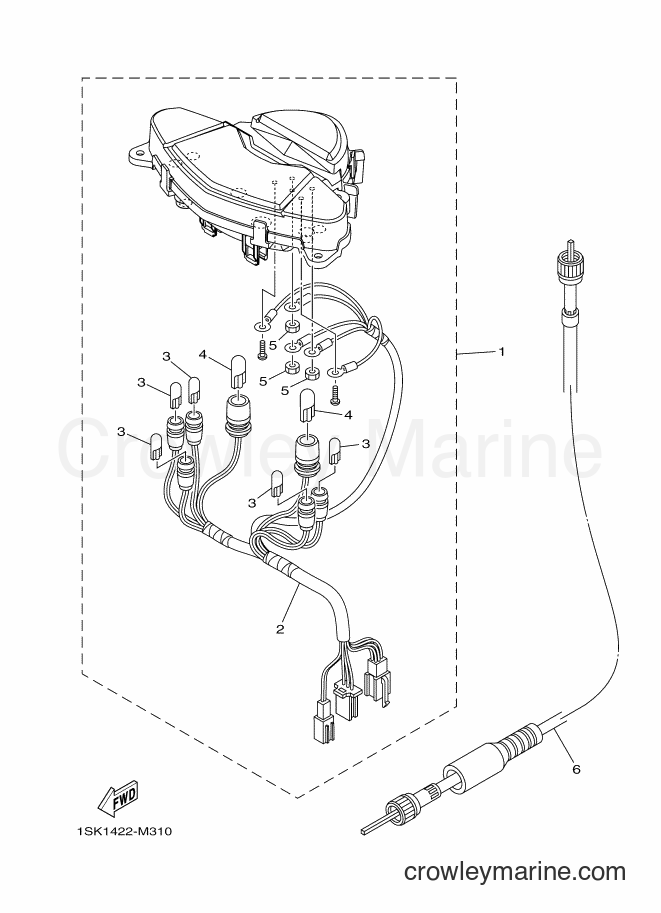

2013 Scooter AL125FC - AL125FC (1SK1) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

SPEEDOMETER ASSY1SK-H3510-00

Required: 1

SPEEDOMETER ASSY

Price unavailable

Yamaha Motors

. SOCKET CORD ASSY1SK-H3509-00

Required: 1

. SOCKET CORD ASSY

Price unavailable

Yamaha Motors

. BULB (12V-1.7W T6.5)5VD-H3517-00

Required: 5

. BULB (12V-1.7W T6.5)

Price unavailable

Yamaha Motors

. BULB, METER (T10 12V-3.4W)5BU-H3518-00

Required: 2

. BULB, METER (T10 12V-3.4W)

Price unavailable

Yamaha Motors

. NUT, CABLE FITTING 15HU-H3563-00

Required: 3

. NUT, CABLE FITTING 1

Price unavailable

Yamaha Motors

SPEEDOMETER CABLE ASSY1FC-H3550-00

Required: 1

SPEEDOMETER CABLE ASSY

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
