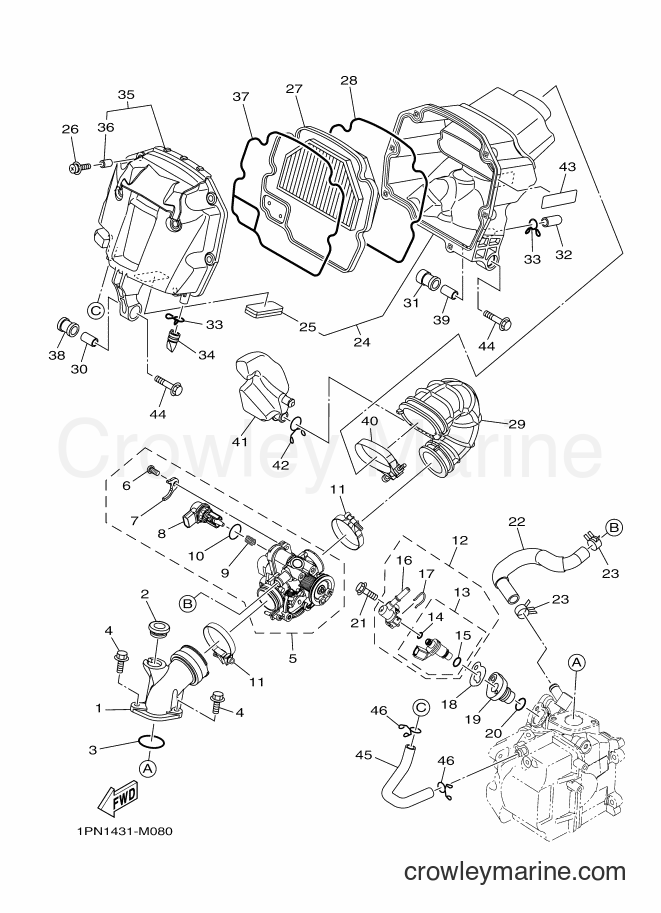

2013 Scooter AL125FC - AL125FC (1PN4) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL125FC (1PN4) [010] - INTAKE
Change View:
MANIFOLD
1
Yamaha Motors
MANIFOLD1PN-E3585-00
Required: 1
MANIFOLD
Price unavailable
GROMMET
2
Yamaha Motors
GROMMET1PN-E5357-00
Required: 1
GROMMET
Price unavailable
-15%
O-Ring
3
Yamaha Motors
O-Ring93210-30611-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
-15%
Flange Bolt
4
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
THROTTLE BODY ASSY
5
Yamaha Motors
THROTTLE BODY ASSY1PN-E3750-00
Required: 1
THROTTLE BODY ASSY
Price unavailable
-12%
Screw
6
Yamaha Motors
Screw98517-06012-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98502-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
-15%
Plate
7
Yamaha Motors
Plate54P-E4243-00-00
Required: 1
. PLATE
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
. STEPPING MOTOR
8
Yamaha Motors
. STEPPING MOTOR54P-H5801-00
Required: 1
. STEPPING MOTOR
Price unavailable
. SPRING, PLUNGER
9
Yamaha Motors
. SPRING, PLUNGER54P-E4335-00
Required: 1
. SPRING, PLUNGER
Price unavailable
-15%
O-Ring
10
Yamaha Motors
O-Ring54P-E416A-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
HOSE CLAMP ASSY
11
Yamaha Motors
HOSE CLAMP ASSY90450-46803
Required: 2
HOSE CLAMP ASSY
Price unavailable
INJECTOR ASSY
12
Yamaha Motors
INJECTOR ASSY1DB-E3770-00
Required: 1
INJECTOR ASSY
Price unavailable
. INJECTOR
13
Yamaha Motors
. INJECTOR54P-E3761-00
Required: 1
. INJECTOR
Price unavailable
-15%
O-Ring
14
Yamaha Motors
O-Ring54P-E4147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
-15%
O-Ring
15
Yamaha Motors
O-Ring5CA-E4147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
. PIPE
16
Yamaha Motors
. PIPE1DB-E3938-00
Required: 1
. PIPE
Price unavailable
-15%
Clip
17
Yamaha Motors
Clip54P-E4137-00-00
Required: 1
. CLIP
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details
GASKET
18
Yamaha Motors
GASKET1PN-E3557-00
Required: 1
GASKET
Price unavailable
ADAPTER
19
Yamaha Motors
ADAPTER1PN-E2572-00
Required: 1
ADAPTER
Price unavailable
O-RING
20
Yamaha Motors
O-RING93210-17802
Required: 1
O-RING
Price unavailable
-15%
Flange Bolt
21
Yamaha Motors
Flange Bolt95812-06030-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
HOSE, AIR
22
Yamaha Motors
HOSE, AIR1PN-E3895-00
Required: 1
HOSE, AIR
Price unavailable
CLIP
23
Yamaha Motors
CLIP90467-15802
Required: 2
CLIP
Price unavailable
AIR CLEANER CASE COMP.
24
Yamaha Motors
AIR CLEANER CASE COMP.1PN-WE441-00
Required: 1
AIR CLEANER CASE COMP.
Price unavailable
. DAMPER 1
25
Yamaha Motors
. DAMPER 11PN-E4425-00
Required: 1
. DAMPER 1
Price unavailable
ELEMENT, AIR CLEANER
27
Yamaha Motors
ELEMENT, AIR CLEANER1PN-E4451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
SEAL
28
Yamaha Motors
SEAL1PN-E4452-00
Required: 1
SEAL
Price unavailable
JOINT, AIR CLEANER 1
29
Yamaha Motors
JOINT, AIR CLEANER 11PN-E4453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
COLLAR
30
Yamaha Motors
COLLAR33S-E4449-00
Required: 1
COLLAR
Price unavailable
GROMMET
31
Yamaha Motors
GROMMET1PN-E4435-00
Required: 1
GROMMET
Price unavailable
PIPE, DRAIN
32
Yamaha Motors
PIPE, DRAIN5VV-E443E-00
Required: 1
PIPE, DRAIN
Price unavailable
CLIP
33
Yamaha Motors
CLIP90467-12808
Required: 2
CLIP
Price unavailable
PIPE, DRAIN 2
34
Yamaha Motors
PIPE, DRAIN 25TN-E443G-00
Required: 1
PIPE, DRAIN 2
Price unavailable
CAP, CLEANER CASE SUP ASSY 1
35
Yamaha Motors
CAP, CLEANER CASE SUP ASSY 11PN-WE443-00
Required: 1
CAP, CLEANER CASE SUP ASSY 1
Price unavailable
. COLLAR
36
Yamaha Motors
. COLLAR1PN-E4495-00
Required: 6
. COLLAR
Price unavailable
SEAL
37
Yamaha Motors
SEAL1PN-E4457-00
Required: 1
SEAL
Price unavailable
GROMMET
38
Yamaha Motors
GROMMET1PN-E4445-00
Required: 1
GROMMET
Price unavailable
COLLAR
39
Yamaha Motors
COLLAR1PN-E4449-00
Required: 1
COLLAR
Price unavailable
BAND
40
Yamaha Motors
BAND33S-E4455-00
Required: 1
BAND
Price unavailable
RESONATOR
41
Yamaha Motors
RESONATOR1PN-E4877-00
Required: 1
RESONATOR
Price unavailable
CLIP
42
Yamaha Motors
CLIP90467-18806
Required: 1
CLIP
Price unavailable
LABEL, NOTICE 2
43
Yamaha Motors
LABEL, NOTICE 254S-F815R-00
Required: 1
LABEL, NOTICE 2
Price unavailable
-15%
Flange Bolt
44
Yamaha Motors
Flange Bolt95812-06035-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
PIPE, BREATHER 1
45
Yamaha Motors
PIPE, BREATHER 11PN-E1166-00
Required: 1
PIPE, BREATHER 1
Price unavailable
Clip
46
Yamaha Motors
Clip90467-11825-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$0.99
More details
