All diagrams for this model

2013 Scooter AL125FC - AL125FC (1PN2) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

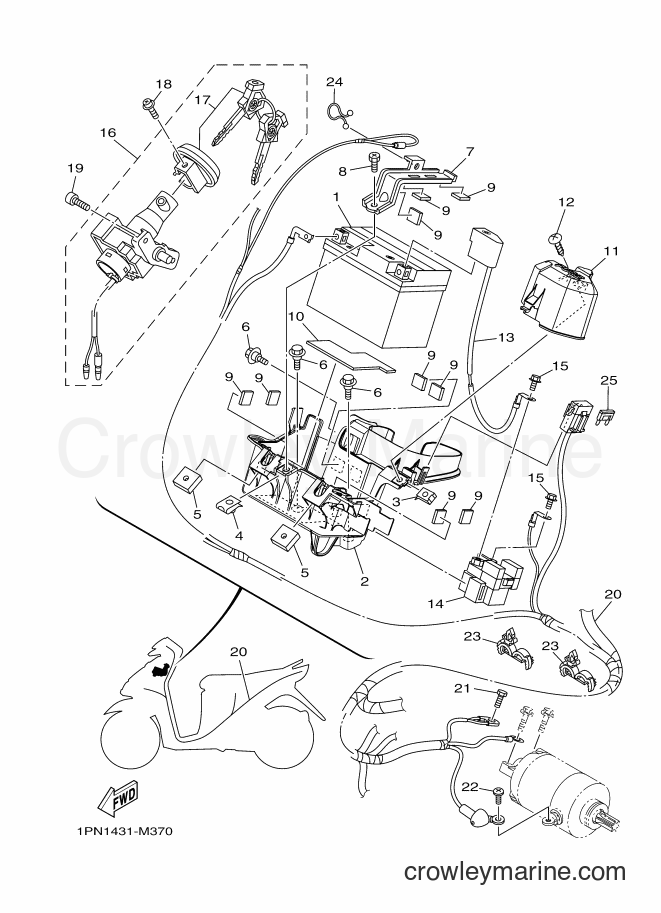

Yamaha Motors AL125FC (1PN2) [010] - ELECTRICAL 1
Change View:
BATTERY ASSY 3.5A (GS GTZ5S)
1
Yamaha Motors
BATTERY ASSY 3.5A (GS GTZ5S)2S5-H2100-00
Required: 1
BATTERY ASSY 3.5A (GS GTZ5S)
Price unavailable
BOX, BATTERY 1
2
Yamaha Motors
BOX, BATTERY 11PN-H212B-00
Required: 1
BOX, BATTERY 1
Price unavailable
NUT, SQUARE
5
Yamaha Motors
NUT, SQUARE90173-06806
Required: 2
NUT, SQUARE
Price unavailable
-15%
BOLT
6
Yamaha Motors
BOLT90109-06887-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
PLATE, BATTERY FITTING
7
Yamaha Motors
PLATE, BATTERY FITTING1PN-H2136-00
Required: 1
PLATE, BATTERY FITTING
Price unavailable
SCREW, HEXAGON
8
Yamaha Motors
SCREW, HEXAGON90153-06807
Required: 1
SCREW, HEXAGON
Price unavailable
DAMPER, PLATE
9
Yamaha Motors
DAMPER, PLATE90520-03801
Required: 9
DAMPER, PLATE
Price unavailable
DAMPER
10
Yamaha Motors
DAMPER33S-H2176-00
Required: 1
DAMPER
Price unavailable
COVER, CAP
11
Yamaha Motors
COVER, CAP1PN-H234W-00
Required: 1
COVER, CAP
Price unavailable
-15%
Truss Screw
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
WIRE, PLUS LEAD
13
Yamaha Motors
WIRE, PLUS LEAD33S-H2115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
STARTER RELAY ASSY
14
Yamaha Motors
STARTER RELAY ASSY1PN-H1940-00
Required: 1
STARTER RELAY ASSY
Price unavailable
MAIN SW. STRG. LOCK SUB ASSY
16
Yamaha Motors
MAIN SW. STRG. LOCK SUB ASSY33S-XH250-10
Required: 1
MAIN SW. STRG. LOCK SUB ASSY
Price unavailable
. SHUTTER ASSY.
17
Yamaha Motors
. SHUTTER ASSY.33S-WH250-10
Required: 1
. SHUTTER ASSY.
Price unavailable
SCREW, PAN HEAD WITH WASHER
18
Yamaha Motors
SCREW, PAN HEAD WITH WASHER97602-05208
Required: 1
SCREW, PAN HEAD WITH WASHER
Price unavailable
-15%
BOLT
19
Yamaha Motors
BOLT91312-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
WIRE HARNESS ASSY
20
Yamaha Motors
WIRE HARNESS ASSY1PN-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-15%
Bind Screw
22
Yamaha Motors
Bind Screw98902-05008-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
CLAMP
23
Yamaha Motors
CLAMP90464-18806
Required: 2
CLAMP
Price unavailable
CLAMP
24
Yamaha Motors
CLAMP90464-15804
Required: 1
CLAMP
Price unavailable
FUSE
25
Yamaha Motors
FUSE1PN-H2151-00
Required: 1
FUSE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
