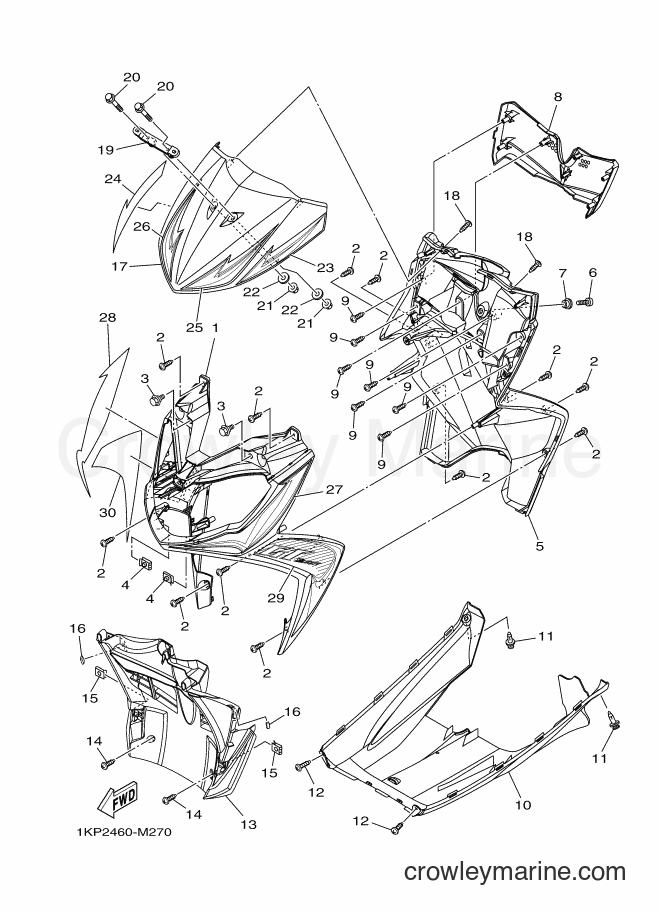

2013 Scooter AL115FX - AL115FX (1KP2) [010] LEG SHIELD diagram
![Yamaha Motors AL115FX (1KP2) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/s7A9dTMF.png)
1
Yamaha Motors
LEG SHIELD 11KP-F8311-00-P7
Required: 1
LEG SHIELD 1
Price unavailable
1
Yamaha Motors
LEG SHIELD 11KP-F8311-10-P7
Required: 1
LEG SHIELD 1
Price unavailable
-15%
2
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 12
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-15%
In stock
Only 1 remaining
$2.64
You save $0.46
-50%
4
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
5
Yamaha Motors
LEG SHIELD 21KP-F8312-00
Required: 1
LEG SHIELD 2
Price unavailable
-15%
$8.92
You save $1.57
7
Yamaha Motors
COLLAR90387-07811
Required: 1
COLLAR
Price unavailable
8
Yamaha Motors
PANEL, INNER 11KP-F836K-00
Required: 1
PANEL, INNER 1
Price unavailable
-15%
9
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 7
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
10
Yamaha Motors
COVER, UNDER1KP-F8385-00
Required: 1
COVER, UNDER
Price unavailable
-15%
$1.10
You save $0.20
-15%
12
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
13
Yamaha Motors
FENDER, INNER1KP-F1552-00
Required: 1
FENDER, INNER
Price unavailable
-15%
14
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
15
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
16
Yamaha Motors
DAMPER, PLATE90520-04809
Required: 2
DAMPER, PLATE
Price unavailable
17
Yamaha Motors
PANEL, FRONT1KP-F3391-10-P7
Required: 1
PANEL, FRONT
Price unavailable
17
Yamaha Motors
PANEL, FRONT1KP-F3391-00-P7
Required: 1
PANEL, FRONT
Price unavailable
-15%
18
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
19
Yamaha Motors
BRACKET, NUMBER PLATE54P-H454E-00
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
-15%
20
Yamaha Motors
Flange Bolt95817-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06030-00
$3.95
You save $0.70
-15%
In stock
Only 1 remaining
$2.21
You save $0.39
-15%
22
Yamaha Motors
Plain Washer90201-06088-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
23
Yamaha Motors
GRAPHIC 11KP-F33G1-00
Required: 1
GRAPHIC 1
Price unavailable
24
Yamaha Motors
GRAPHIC 21KP-F33G2-00
Required: 1
GRAPHIC 2
Price unavailable
25
Yamaha Motors
GRAPHIC 31KP-F33G3-00
Required: 1
GRAPHIC 3
Price unavailable
26
Yamaha Motors
GRAPHIC 41KP-F33G4-00
Required: 1
GRAPHIC 4
Price unavailable
27
Yamaha Motors
GRAPHIC 171KP-F832D-00
Required: 1
GRAPHIC 17
Price unavailable
28
Yamaha Motors
GRAPHIC, 121KP-F832K-00
Required: 1
GRAPHIC, 12
Price unavailable
29
Yamaha Motors
GRAPHIC, 151KP-F832B-70
Required: 1
GRAPHIC, 15
Price unavailable
30
Yamaha Motors
GRAPHIC, 161KP-F832C-70
Required: 1
GRAPHIC, 16
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
