2013 Scooter AL115FX - AL115FX (1KP2) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

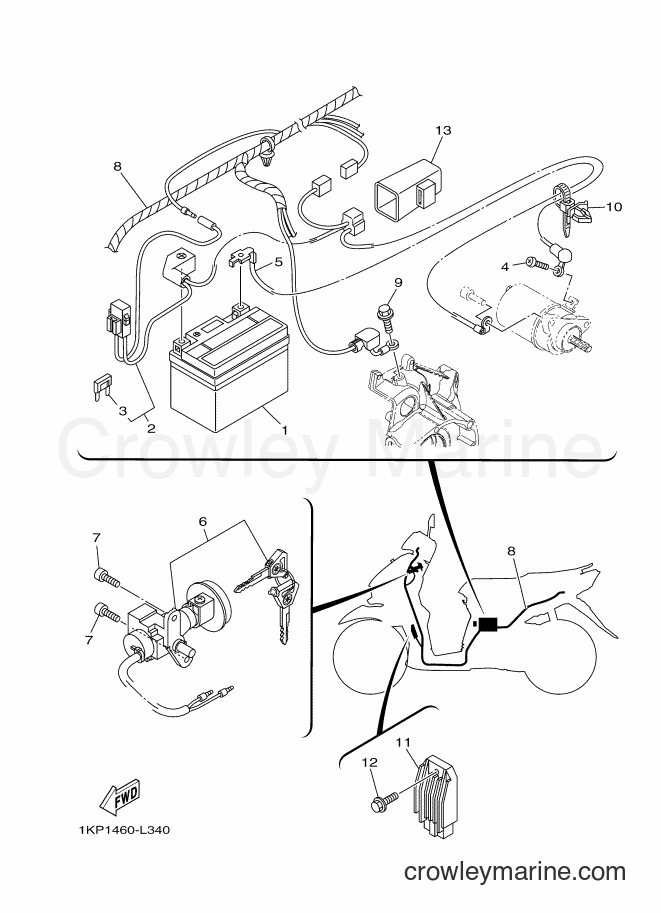

Yamaha Motors AL115FX (1KP2) [010] - ELECTRICAL 1
Change View:
BATTERY ASSY (YUASA YTZ4V)
1
Yamaha Motors
BATTERY ASSY (YUASA YTZ4V)14D-H2100-00
Required: 1
BATTERY ASSY (YUASA YTZ4V)
Price unavailable
BATTERY ASSY (GS GZ4V)
1
Yamaha Motors
BATTERY ASSY (GS GZ4V)14D-H2100-10
Required: 1
BATTERY ASSY (GS GZ4V)
Price unavailable
WIRE, PLUS LEAD
2
Yamaha Motors
WIRE, PLUS LEAD54P-H2115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
FUSE (15A)
3
Yamaha Motors
FUSE (15A)54P-H2151-00
Required: 1
FUSE (15A)
Price unavailable
-15%
Bind Screw
4
Yamaha Motors
Bind Screw98902-05008-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
WIRE, MINUS LEAD
5
Yamaha Motors
WIRE, MINUS LEAD54P-H2116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
MAIN SWITCH COMP.
6
Yamaha Motors
MAIN SWITCH COMP.1KP-H252E-00
Required: 1
MAIN SWITCH COMP.
Price unavailable
-15%
BOLT
7
Yamaha Motors
BOLT91312-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
WIRE HARNESS ASSY
8
Yamaha Motors
WIRE HARNESS ASSY1KP-H2590-10
Required: 1
WIRE HARNESS ASSY
Price unavailable
-15%
Flange Bolt
9
Yamaha Motors
Flange Bolt95022-06012-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
CLAMP
10
Yamaha Motors
CLAMP90464-12810
Required: 1
CLAMP
Price unavailable
RECTIFIER & REGULATOR ASSY
11
Yamaha Motors
RECTIFIER & REGULATOR ASSY54P-H1960-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
BOLT, FLANGE
12
Yamaha Motors
BOLT, FLANGE90105-068A0
Required: 1
BOLT, FLANGE
Price unavailable
STARTER RELAY ASSY
13
Yamaha Motors
STARTER RELAY ASSY5TP-H1940-00
Required: 1
STARTER RELAY ASSY
Price unavailable
